FRONT SEAT & SEAT TRACK

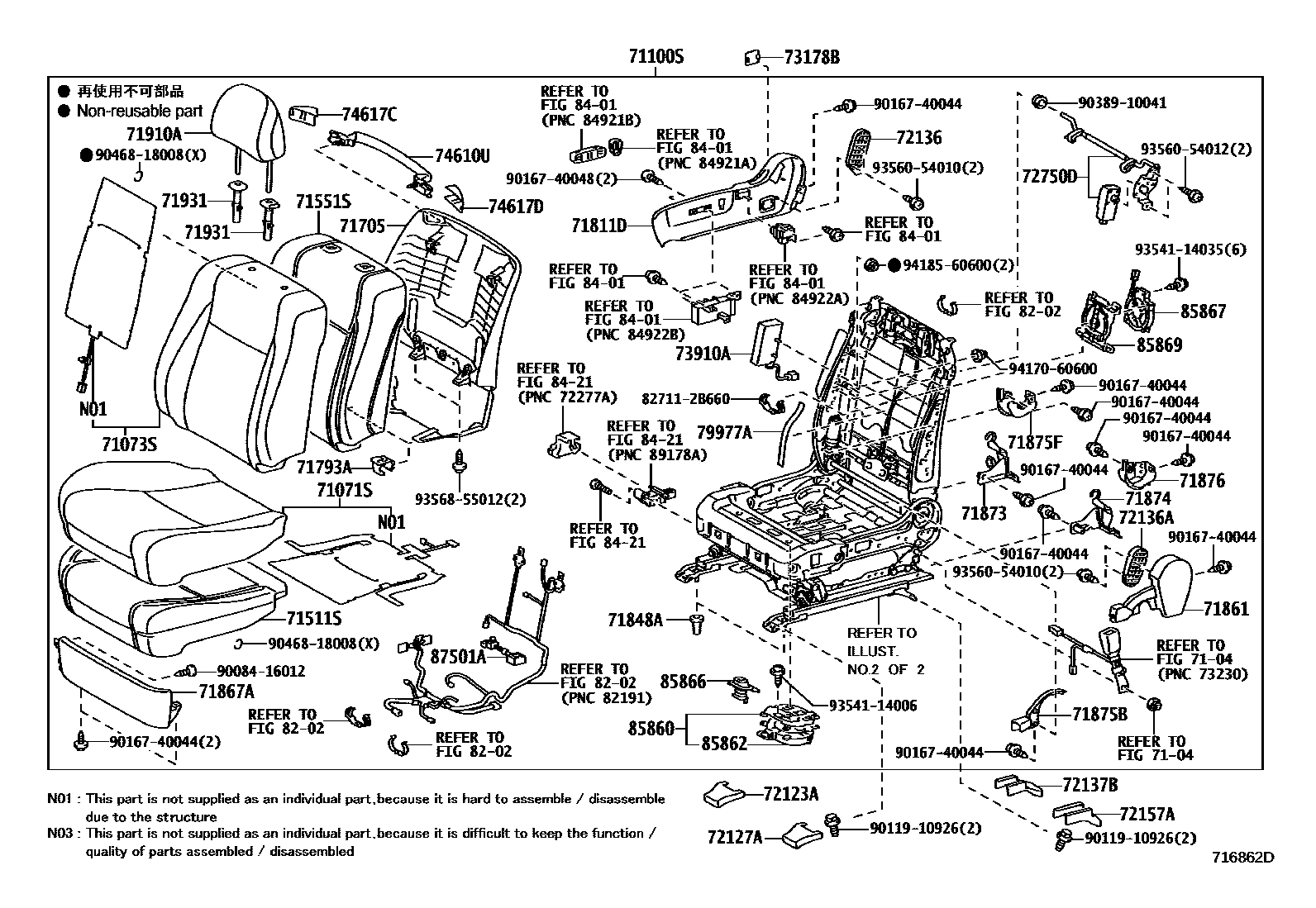

0001 1DRIVER SEAT 0002 1PASSENGER SEAT 0003 1DRIVER SEAT(FRAME) 0004 1PASSENGER SEAT(FRAME)

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-30C40-A0iGRS202201009-201012

SHELL,TRIM0#

main71071-30C40-A3iGRS202201012-201212

SHELL,TRIM0#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-30C10-A3iGRS202201009-201012

SHELL,TRIM0#

main71073-30C10-A5iGRS202201012-201212

SHELL,TRIM0#

71100SSEAT ASSY, FRONT RH

main71100-30J61-A4iGRS202201009-201012

SHELL,TRIM0#

main71100-30J61-A6iGRS202201012-201212

SHELL,TRIM0#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-30A90iGRS202201009-201212

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-30B00iGRS202201009-201212

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-30820-A1iGRS202201009-201212

SHELL,TRIM0#

71793ACLIP, FRONT SEATBACK POCKET

main71793-58010iGRS202201009-201212

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-30450-A1iGRS202201009-201212

SHELL,TRIM0#

main71811-30450-B1iGRS202201009-201212

GRAY,TRIM1#

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-33010iGRS202201009-201212

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-60110-A2iGRS202201009-201212

SHELL,TRIM0#

main71861-60110-B5iGRS202201009-201212

GRAY,TRIM1#

71867ASHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

main71867-30120-A1iGRS202201009-201212

SHELL,TRIM0#

main71867-30120-B1iGRS202201009-201212

GRAY,TRIM1#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-30090iGRS202201009-201212

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-12040iGRS202201009-201212

71875BCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-60150-A2iGRS202201009-201212

SHELL,TRIM0#

main71875-60150-B5iGRS202201009-201212

GRAY,TRIM1#

71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

main71875-58050iGRS202201009-201212

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-58050iGRS202201009-201212

71910AHEADREST ASSY, FRONT SEAT

main71910-30B80-A0iGRS202201009-201012

SHELL,TRIM0#

main71910-30B80-A3iGRS202201012-201212

SHELL,TRIM0#

71931SUPPORT, FRONT SEAT HEADREST

main71930-52030-A2iGRS202201009-201212

W(LOCK)&W(BUTTON),SHELL,TRIM0#

main71931-42020-A5iGRS202201009-201212

W(LOCK)&W/O(BUTTON),SHELL,TRIM0#

72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-30090-A1iGRS202201009-201212

SHELL,TRIM0#

main72123-30090-B1iGRS202201009-201212

GRAY,TRIM1#

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72123-30090-A1iGRS202201009-201212

SHELL,TRIM0#

main72123-30090-B1iGRS202201009-201212

GRAY,TRIM1#

72136SPACER, SEAT TRACK, LOWER NO.1

main72136-30070iGRS202201009-201212

72136ASPACER, SEAT TRACK, LOWER NO.2

main72136-30080iGRS202201009-201212

72137BCOVER, SEAT TRACK, RH

main72137-30190-A1iGRS202201009-201212

SHELL,TRIM0#

main72137-30190-B1iGRS202201009-201212

GRAY,TRIM1#

72157ACOVER, SEAT TRACK BRACKET, INNER RH

main72157-30090-A1iGRS202201009-201212

SHELL,TRIM0#

main72157-30090-B1iGRS202201009-201212

GRAY,TRIM1#

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-30260iGRS202201009-201212

73178BCAP, SEAT BELT ANCHOR COVER

main73178-30030-A1iGRS202201009-201212

SHELL,TRIM0#

main73178-30030-B1iGRS202201009-201212

GRAY,TRIM1#

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-30070iGRS202201009-201212

74610UGRIP ASSY, ASSIST

main71025-30020-A1iGRS202201009-201212

SHELL,TRIM0#

main71025-30020-B1iGRS202201009-201212

NEW GRAY,TRIM1#

74617CPLUG, ASSIST GRIP

main74617-30070-A2iGRS202201009-201212

SHELL,TRIM0#

main74617-30070-B2iGRS202201009-201212

GRAY,TRIM1#

74617DPLUG, ASSIST GRIP

main74618-30020-A2iGRS202201009-201212

SHELL,TRIM0#

main74618-30020-B2iGRS202201009-201212

GRAY,TRIM1#

79977AFELT, SEATBACK

main79977-48010iGRS202201009-201212

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8421AIR BAG

→ Go to FIG 84-21

85860BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL

main85860-30020iGRS202201009-201212

85862BLOWER, SEAT CLIMATE CONTROL, RH

main85862-30020iGRS202201009-201212

85866DUCT, SEAT CUSHION CLIMATE CONTROL, RH

main85866-30010iGRS202201009-201212

85867BLOWER, SEATBACK CLIMATE CONTROL, RH

main85867-33010iGRS202201009-201212

85869COVER, SEATBACK CLIMATE CONTROL, RH

main85869-30010iGRS202201009-201212

87501ACONTROL SUB-ASSY, SEAT HEATER, RH

main87501-60010iGRS202201009-201202

main87501-60060iGRS202201203-201212

827112B660WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B660

9008416012

main90084-16012

9011910926

main90119-10926

9016740044

main90167-40044

9016740048

main90167-40048

9038910041

main90389-10041

9046818008

main90468-18008

9354114006

main93541-14006

9354114035

main93541-14035

9356054010

main93560-54010

9356054012

main93560-54012

9356855012

main93568-55012

9417060600

main94170-60600

9418560600

main94185-60600

55 parts on this diagram · 4 diagrams in section
