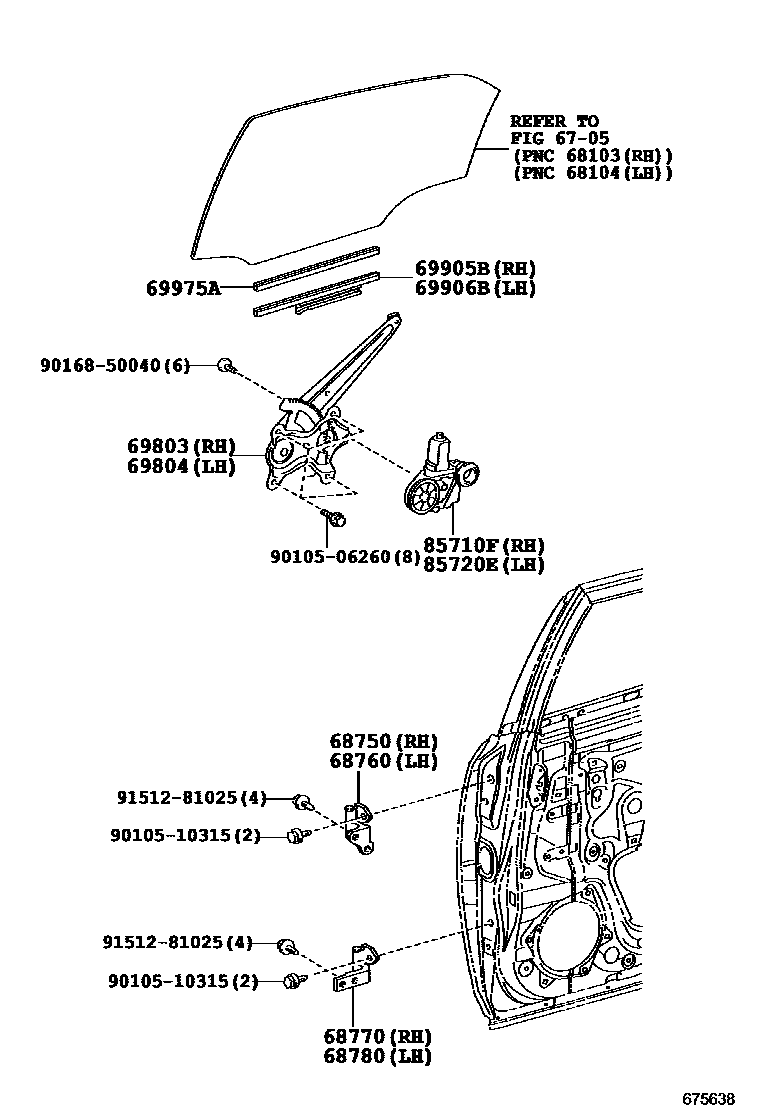

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-30120iGRS202201009-201212

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-30130iGRS202201009-201212

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-30120iGRS202201009-201212

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-30130iGRS202201009-201212

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-35080iGRS202201009-201212

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-35080iGRS202201009-201212

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-30120iGRS202201009-201212

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-30100iGRS202201009-201212

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-22030×2iGRS202201009-201212

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-30410iGRS202201009-201108

main85720-30411iGRS202201109-201212

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-30460iGRS202201009-201108

main85710-30461iGRS202201109-201212

9010506260

main90105-06260

9010510315

main90105-10315

9016850040

main90168-50040

9151281025

main91512-81025

16 parts on this diagram · 1 diagram in section
