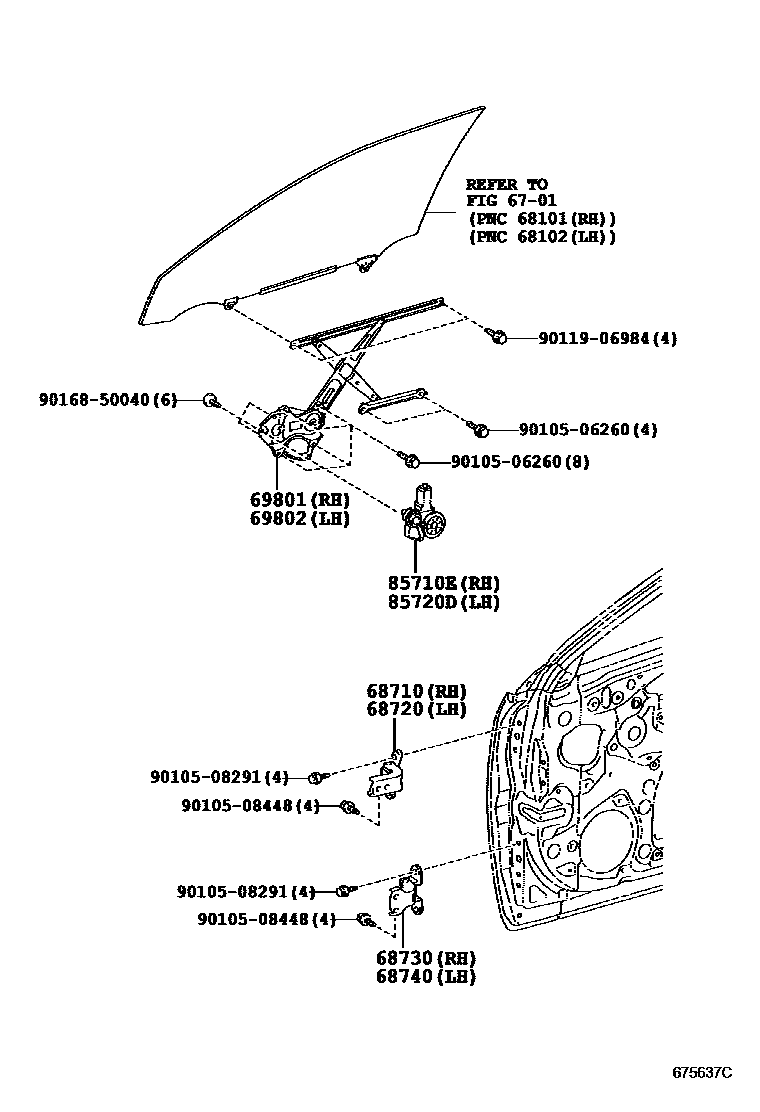

FRONT DOOR WINDOW REGULATOR & HINGE

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iGRS202201009-201212

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iGRS202201009-201212

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iGRS202201009-201212

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iGRS202201009-201212

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-30260iGRS202201009-201212

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-30260iGRS202201009-201212

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-30500iGRS202201009-201212

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-30440iGRS202201009-201212

9010506260

main90105-06260

9010508291

main90105-08291

9010508448

main90105-08448

9011906984

main90119-06984

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
