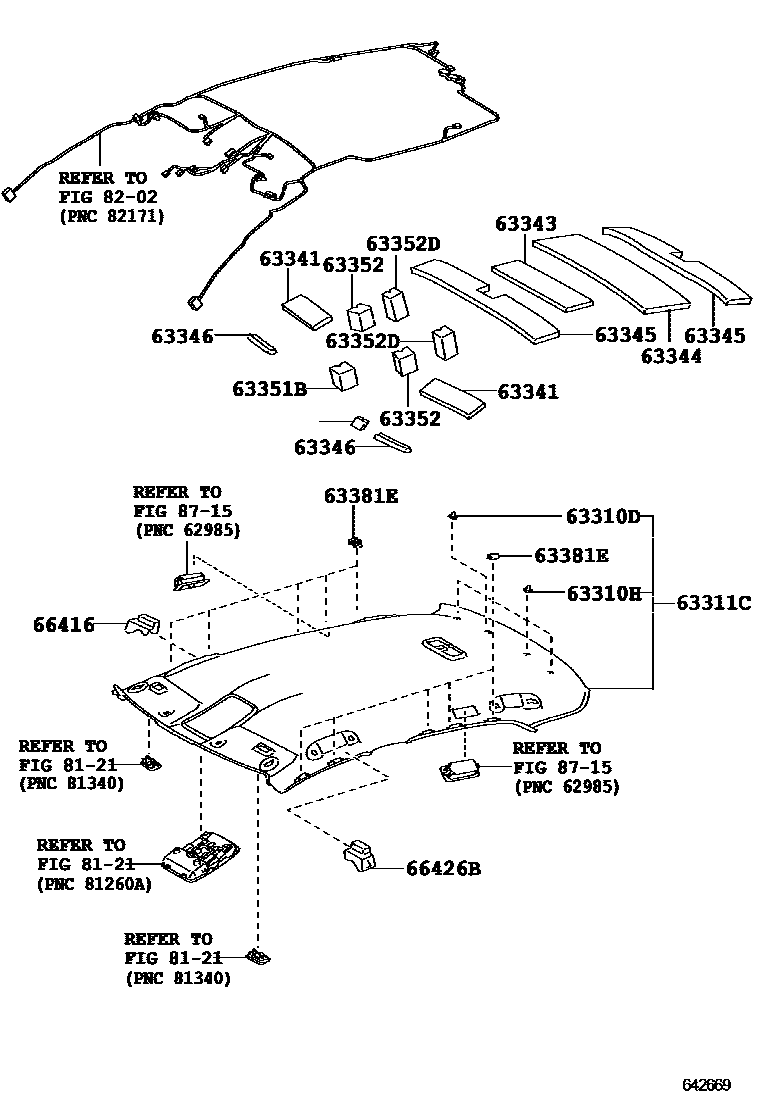

ROOF HEADLINING & SILENCER PAD

63310DCLIP, ROOF HEADLINING

main90467-10181iGRS202201009-201212

63310HCLIP(FOR ROOF HEADLINING)

main90467-09126×3iGRS202201009-201212

63311CHEADLINING, ROOF

main63311-30670-A0iGRS202201009-201212

SHELL,TRIM0#

main63311-30670-B0iGRS202201009-201212

GRAY,TRIM1#

63341PAD, ROOF SILENCER, NO.1

main63341-30430×2iGRS202201009-201212

63343PAD, ROOF SILENCER, NO.3

main63343-30380iGRS202201009-201212

63344PAD, ROOF SILENCER, NO.4

main63344-30260iGRS202201009-201212

63345PAD, ROOF SILENCER, NO.5

main63345-30280×2iGRS202201009-201212

63346PAD, ROOF SILENCER, NO.6

main63346-30120×2iGRS202201009-201212

63351BPAD, ROOF HEADLINING

main63351-30290iGRS202201009-201212

63352PAD, ROOF HEADLINING, CENTER

main63351-30290×2iGRS202201009-201212

63352DPAD, ROOF HEADLINING, NO.2

main63352-30270×2iGRS202201009-201212

63381ERETAINER, ROOF HEADLINING TRIM, FRONT

main63381-30200×10iGRS202201009-201212

66416SPACER, SIDE RAIL, REAR NO.3 RH

main66416-30020iGRS202201009-201212

66426BSPACER, SIDE RAIL, REAR NO.3 LH

main66426-30020iGRS202201009-201212

8121INTERIOR LAMP

→ Go to FIG 81-21

8202WIRING & CLAMP

→ Go to FIG 82-02

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

17 parts on this diagram · 1 diagram in section
