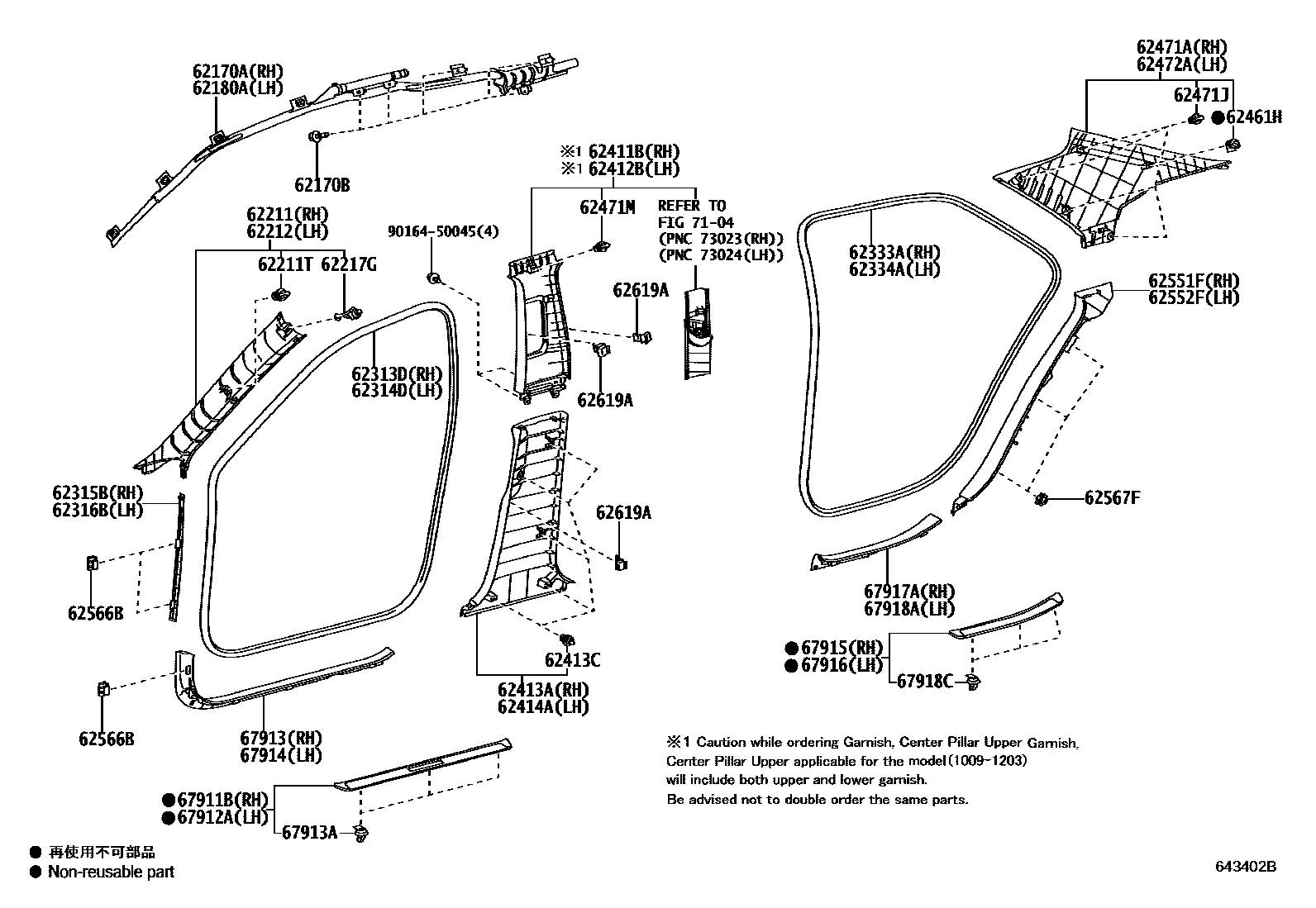

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-30110iGRS202201009-201212

62170BBOLT, W/WASHER

main90119-06869iGRS202201009-201212

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-30110iGRS202201009-201212

62211GARNISH, FRONT PILLAR, RH

main62211-30510-A1iGRS202201009-201212

SHELL,TRIM0#

main62211-30510-B1iGRS202201009-201212

GRAY,TRIM1#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10161iGRS202201009-201212

62212GARNISH, FRONT PILLAR, LH

main62212-30520-A1iGRS202201009-201212

SHELL,TRIM0#

main62212-30520-B1iGRS202201009-201212

GRAY,TRIM1#

62217GCLIP, FRONT PILLAR GARNISH

main62217-33031iGRS202201009-201212

62313DTRIM, FRONT DOOR OPENING, RH

main62313-30270iGRS202201009-201110

sub62313-30271

main62313-30271iGRS202201111-201212

sub62313-30272

62314DTRIM, FRONT DOOR OPENING, LH

main62314-30190iGRS202201009-201110

sub62314-30191

main62314-30191iGRS202201111-201212

sub62314-30192

62315BCOVER, FRONT DOOR OPENING TRIM, RH

main62315-30110-A0iGRS202201009-201212

SHELL,TRIM0#

main62315-30110-B0iGRS202201009-201212

GRAY,TRIM1#

62316BCOVER, FRONT DOOR OPENING TRIM, LH

main62316-30100-A0iGRS202201009-201212

SHELL,TRIM0#

main62316-30100-B0iGRS202201009-201212

GRAY,TRIM1#

62333ATRIM, REAR DOOR OPENING, RH

main62333-30240iGRS202201009-201110

sub62333-30241

main62333-30241iGRS202201111-201212

sub62333-30242

62334ATRIM, REAR DOOR OPENING, LH

main62334-30180iGRS202201009-201110

sub62334-30181

main62334-30181iGRS202201111-201212

sub62334-30182

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-30440-A0iGRS202201009-201203

SHELL,TRIM0#,REFER TO ILLUST.

sub62411-30H01

main62411-30440-B0iGRS202201009-201203

GRAY,TRIM1#,REFER TO ILLUST.

sub62411-30H01

main62411-30441-A0iGRS202201204-201212

SHELL,TRIM0#,REFER TO ILLUST.

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-30440-A0iGRS202201009-201203

SHELL,TRIM0#,REFER TO ILLUST.

sub62412-30H01

main62412-30440-B0iGRS202201009-201203

GRAY,TRIM1#,REFER TO ILLUST.

sub62412-30H01

main62412-30441-A0iGRS202201204-201212

SHELL,TRIM0#,REFER TO ILLUST.

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-30230-A0iGRS202201009-201203

SHELL,TRIM0#

sub62413-30231

main62413-30230-B0iGRS202201009-201203

GRAY,TRIM1#

sub62413-30231

main62413-30231-A0iGRS202201204-201212

SHELL,TRIM0#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161iGRS202201009-201212

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-30160-A0iGRS202201009-201203

SHELL,TRIM0#

sub62414-30161

main62414-30160-B0iGRS202201009-201203

GRAY,TRIM1#

sub62414-30161

main62414-30161-A0iGRS202201204-201212

SHELL,TRIM0#

62461HCLIP (FOR ROOF SIDE INNER GARNISH)

main90467-11089-A0iGRS202201009-201212

IVORY

sub90467-11089

62471AGARNISH, ROOF SIDE, INNER RH

main62471-30520-A1iGRS202201009-201212

SHELL,TRIM0#

main62471-30520-B1iGRS202201009-201212

GRAY,TRIM1#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10188iGRS202201009-201212

62471MCLIP

main90467-10167iGRS202201009-201212

62472AGARNISH, ROOF SIDE, INNER LH

main62472-30490-A1iGRS202201009-201212

SHELL,TRIM0#

main62472-30490-B1iGRS202201009-201212

GRAY,TRIM1#

62551FGARNISH, REAR SEAT SIDE, RH

main62551-30290-A0iGRS202201009-201212

SHELL,TRIM0#

main62551-30290-B0iGRS202201009-201212

GRAY,TRIM1#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-30270-A0iGRS202201009-201212

SHELL,TRIM0#

main62552-30270-B0iGRS202201009-201212

GRAY,TRIM1#

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-30010iGRS202201009-201212

62567FCLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62566-30010iGRS202201009-201212

62619APLATE, SIDE TRIM SET

main62619-30030iGRS202201009-201212

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-30220iGRS202201009-201212

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-30230iGRS202201009-201212

67913PLATE, FRONT DOOR SCUFF, RH

main67913-30281-A0iGRS202201009-201212

SHELL,TRIM0#

67913ACLIP(FOR SCUFF PLATE)

main90467-09212iGRS202201009-201212

67914PLATE, FRONT DOOR SCUFF, LH

main67914-30280-A0iGRS202201009-201212

SHELL,TRIM0#

main67914-30280-B0iGRS202201009-201212

GRAY,TRIM1#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-30130iGRS202201009-201212

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-30140iGRS202201009-201212

67917APLATE, REAR DOOR SCUFF, RH

main67917-30230-A0iGRS202201009-201212

SHELL,TRIM0#

main67917-30230-B0iGRS202201009-201212

GRAY,TRIM1#

67918APLATE, REAR DOOR SCUFF, LH

main67918-30210-A0iGRS202201009-201212

SHELL,TRIM0#

main67918-30210-B0iGRS202201009-201212

GRAY,TRIM1#

67918CCLIP(FOR REAR SCUFF PLATE)

main90467-09212iGRS202201009-201212

7104

9016450045

main90164-50045

40 parts on this diagram · 1 diagram in section
