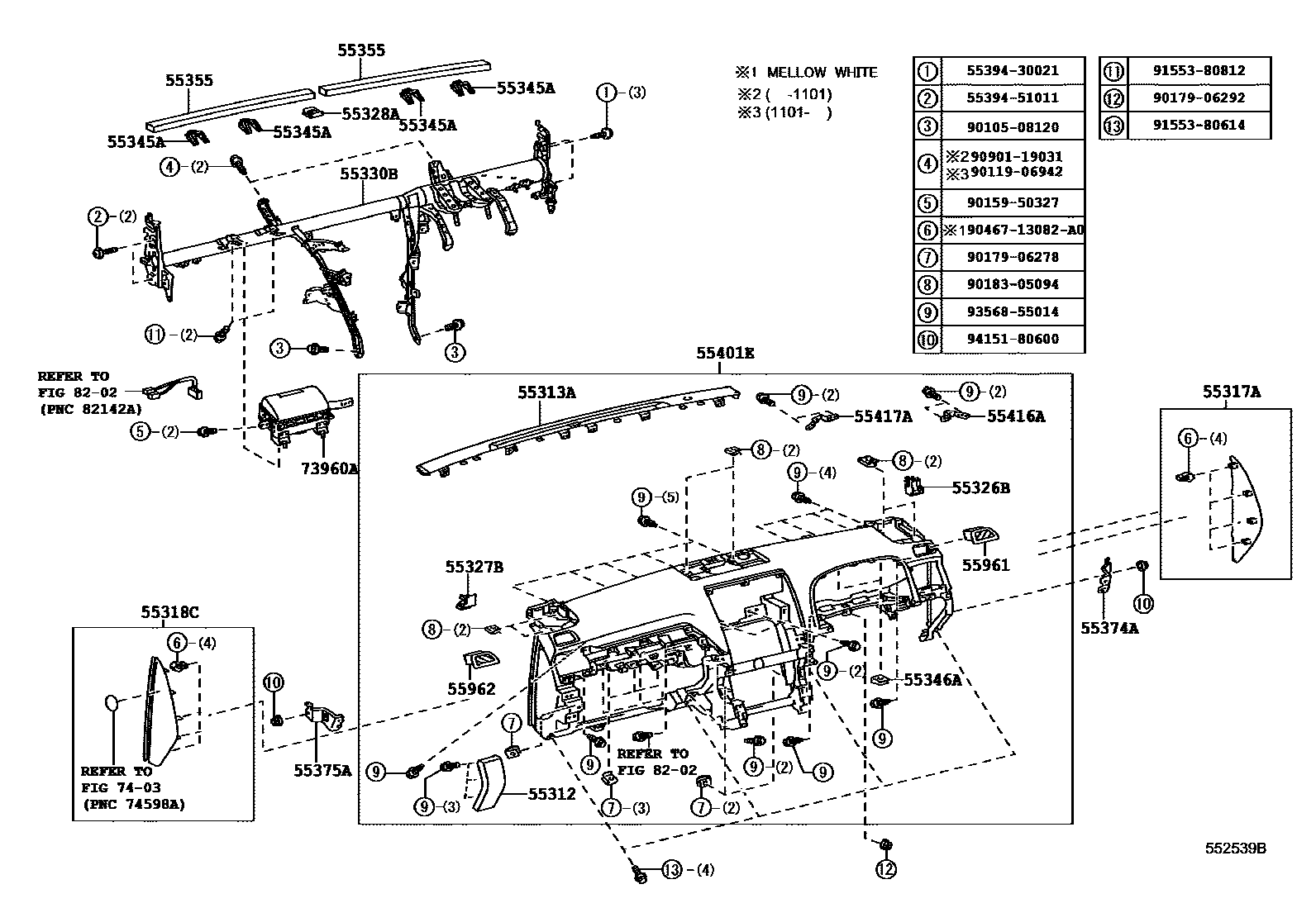

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55312PANEL, INSTRUMENT, LOWER

main55312-30120-A0iGRS202201009-201212

SHELL,TRIM0#

main55312-30120-B0iGRS202201009-201212

GRAY,TRIM1#

55313APANEL, INSTRUMENT MAIN

main55313-30080-C0iGRS202201009-201212

BLACK,TRIM1#

main55313-30080-E0iGRS202201009-201212

DK. BROWN,TRIM0#

55317APANEL, INSTRUMENT SIDE, RH

main55317-30080-A0iGRS202201009-201212

SHELL,TRIM0#

main55317-30080-B0iGRS202201009-201212

GRAY,TRIM1#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-30100-A0iGRS202201009-201212

SHELL,TRIM0#

main55318-30100-B0iGRS202201009-201212

GRAY,TRIM1#

55326BSTAY, INSTRUMENT PANEL, RH

main55326-30130iGRS202201009-201212

55327BSTAY, INSTRUMENT PANEL, LH

main55327-30120iGRS202201009-201212

55328ASTAY, INSTRUMENT PANEL, NO.3

main55328-22060iGRS202201009-201212

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-30370iGRS202201009-201212

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-30060×4iGRS202201009-201212

55346ACLIP, INSTRUMENT PANEL, NO.2

main55345-12060×2iGRS202201009-201212

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-30060×2iGRS202201009-201212

55374ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH

main55374-30270iGRS202201009-201212

55375ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH

main55375-30170iGRS202201009-201212

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55400-30082-C0iGRS202201009-201212

BLACK/GRAY,TRIM1#

main55400-30082-E0iGRS202201009-201212

DK. BROWN/SHELL,TRIM0#

55416ARETAINER, METER HOOD, NO.1

main55416-30190iGRS202201009-201212

55417ARETAINER, METER HOOD, NO.2

main55417-30080iGRS202201009-201212

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-30150-C0iGRS202201009-201212

BLACK,TRIM1#

main55961-30150-E0iGRS202201009-201212

DK. BROWN,TRIM0#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-30130-C0iGRS202201009-201212

BLACK,TRIM1#

main55962-30130-E0iGRS202201009-201212

DK. BROWN,TRIM0#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-30090iGRS202201009-201212

7403

8202

5539430021BRACKET, INSTRUMENT PANEL TO PEDAL

main55394-30021

5539451011BRACKET, INSTRUMENT PANEL TO PEDAL

main55394-51011

9010508120

main90105-08120

9011906942

main90119-06942

9015950327

main90159-50327

9017906278

main90179-06278

9017906292

main90179-06292

9018305094

main90183-05094

9046713082A0

main90467-13082A0

9090119031

main90901-19031

9155380614

main91553-80614

9155380812

main91553-80812

9356855014

main93568-55014

9415180600

main94151-80600

35 parts on this diagram · 4 diagrams in section
