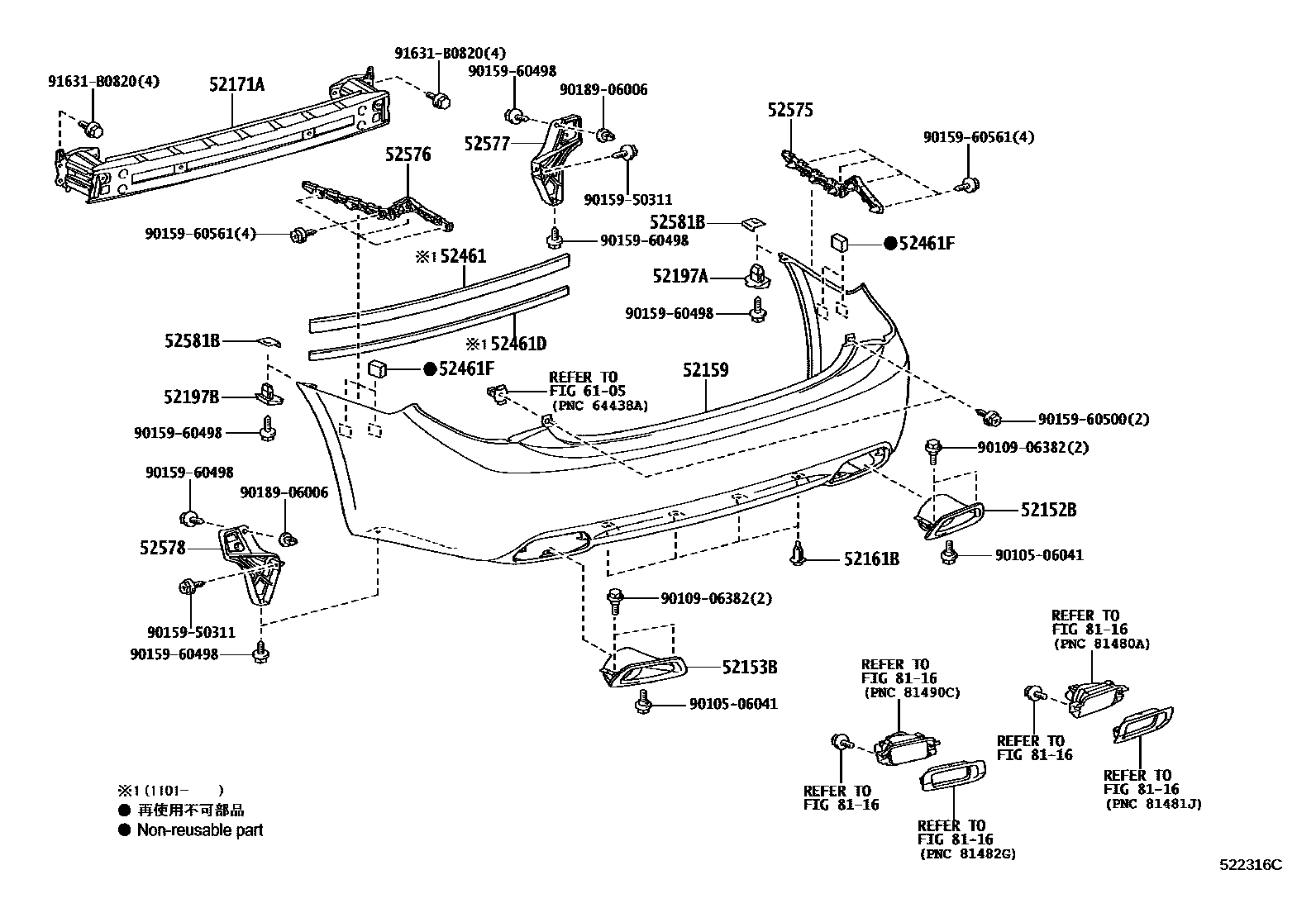

REAR BUMPER & BUMPER STAY

52152BEXTENSION, REAR BUMPER, RH

main52106-30100iGRS202201009-201212

52153BEXTENSION, REAR BUMPER, LH

main52107-30120iGRS202201009-201212

52159COVER, REAR BUMPER

main52159-30947iGRS202201009-201101

main52159-30954iGRS202201101-201212

52161BPIECE, REAR BUMPER

main52161-16010×4iGRS202201009-201212

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52023-30340iGRS202201009-201101

main52023-30341iGRS202201101-201212

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-30040iGRS202201009-201212

52197BBRACKET, REAR BUMPER SEAL, LH

main52197-30040iGRS202201009-201212

52461PAD, REAR BUMPER, CENTER

main52461-30100iGRS202201101-201212

52461DCUSHION, REAR BUMPER

main52461-30110iGRS202201101-201212

52461FPAD, REAR BUMPER

main52462-30060×4iGRS202201009-201212

52575RETAINER, REAR BUMPER SIDE, RH

main52575-30190iGRS202201009-201212

52576RETAINER, REAR BUMPER SIDE, LH

main52576-30150iGRS202201009-201212

52577RETAINER, REAR BUMPER SIDE, NO.2 RH

main52577-30090iGRS202201009-201212

52578RETAINER, REAR BUMPER SIDE, NO.2 LH

main52578-30090iGRS202201009-201212

52581BPROTECTOR, REAR BUMPER

main52581-30060×2iGRS202201009-201212

6105LUGGAGE COMPARTMENT DOOR & LOCK

→ Go to FIG 61-05

8116REAR FOG LAMP

→ Go to FIG 81-16

9010506041

main90105-06041

9010906382

main90109-06382

9015950311

main90159-50311

9015960498

main90159-60498

9015960500

main90159-60500

9015960561

main90159-60561

9018906006

main90189-06006

91631B0820

main91631-B0820

25 parts on this diagram · 1 diagram in section
