SUSPENSION CROSSMEMBER & UNDER COVER

0001 1FRONT SUSPENSION CROSSMEMBER 0002 1REAR SUSPENSION CROSSMEMBER 0003 1UNDER COVER 0004 1UNDER COVER

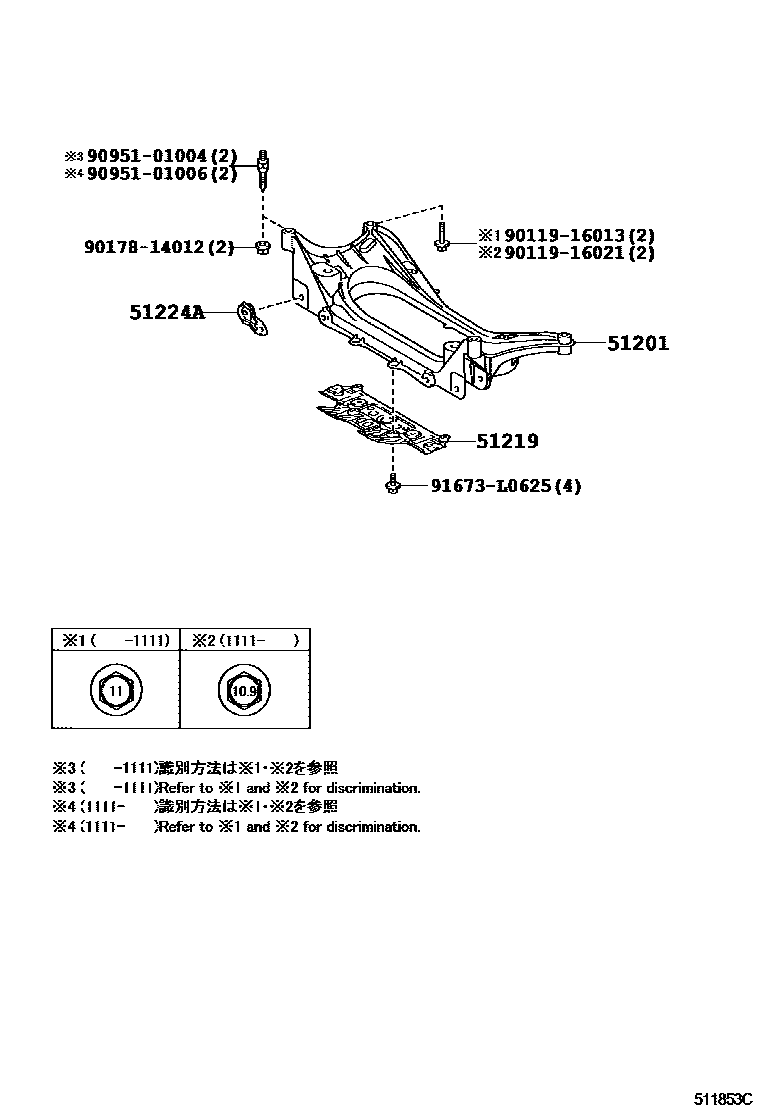

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-30130iGRS202201009-201108

main51201-30140iGRS202201108-201212

51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR

main51219-30031iGRS202201009-201212

51224APLATE, FRONT SUSPENSION MENBER BRACE

main51224-30030iGRS202201009-201212

9011916013

main90119-16013

9011916021

main90119-16021

9017814012

main90178-14012

9095101004

main90951-01004

9095101006

main90951-01006

91673L0625

main91673-L0625

9 parts on this diagram · 4 diagrams in section
