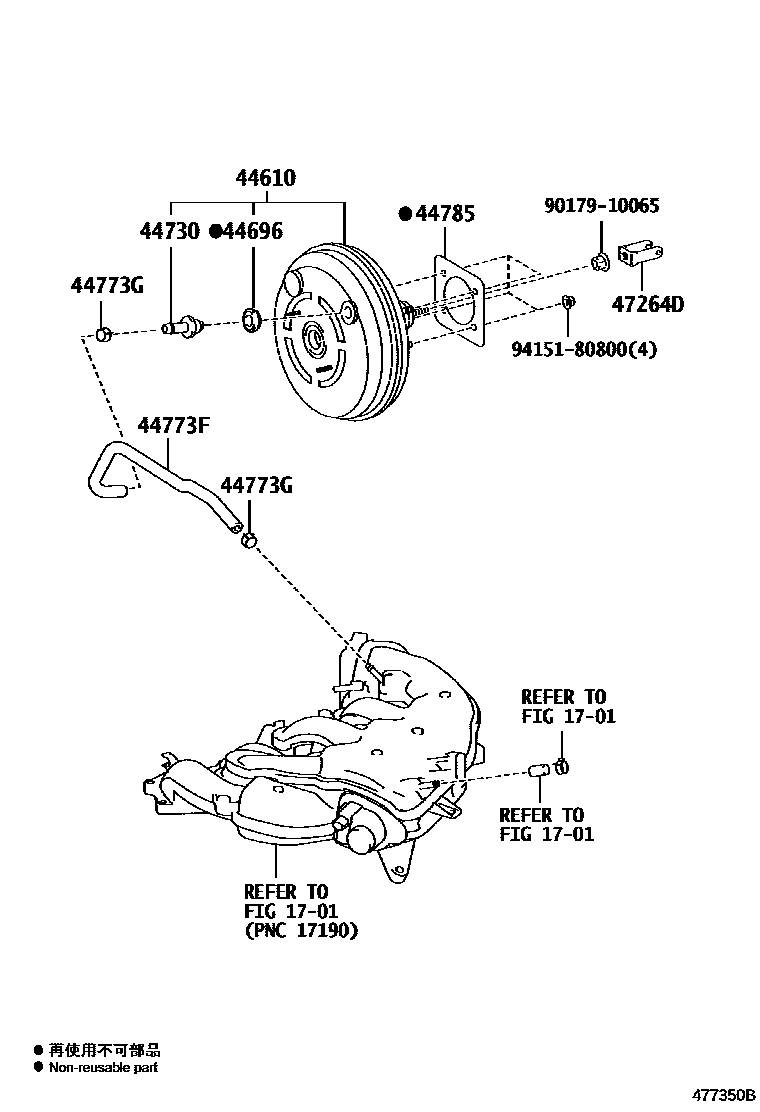

BRAKE BOOSTER & VACUUM TUBE

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-30B21iGRS202201009-201212

44696GROMMET, CHECK VALVE

main90480-24439iGRS202201009-201212

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22150iGRS202201009-201212

44773FHOSE, UNION TO CHECK VALVE

main44773-30660iGRS202201009-201212

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014×2iGRS202201009-201212

44785GASKET, BRAKE BOOSTER

main44785-47010iGRS202201009-201212

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-22040iGRS202201009-201212

9017910065

main90179-10065

9415180800

main94151-80800

10 parts on this diagram · 1 diagram in section
