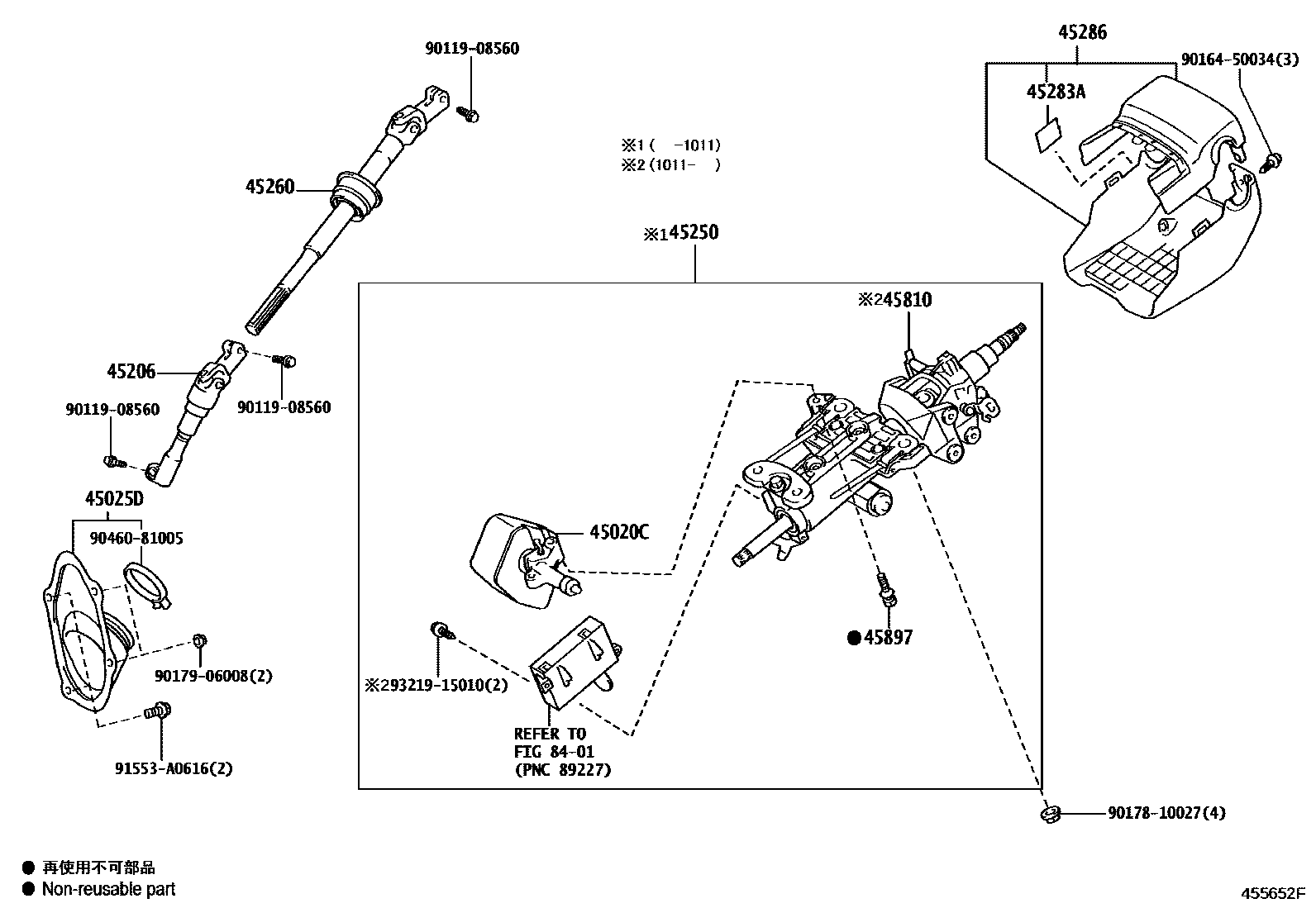

STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-30A70iGRS202201009-201212

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-30350iGRS202201009-201212

45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT

main45206-30100iGRS202201009-201112

main45206-30102iGRS202201112-201212

45250COLUMN ASSY, STEERING

main45250-30A80iGRS202201009-201011

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-22370iGRS202201009-201212

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iGRS202201009-201212

45286COVER, STEERING COLUMN

main45286-3A904-E2iGRS202201009-201212

DK. BROWN,TRIM0#

45810GEAR ASSY, TILT STEERING, W/MOTOR

main45810-30180iGRS202201011-201212

45897BOLT, STEERING LOCK SET

main45897-12020×2iGRS202201009-201212

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908560

main90119-08560

9016450034

main90164-50034

9017810027

main90178-10027

9017906008

main90179-06008

9046081005

main90460-81005

91553A0616

main91553-A0616

9321915010

main93219-15010

17 parts on this diagram · 1 diagram in section
