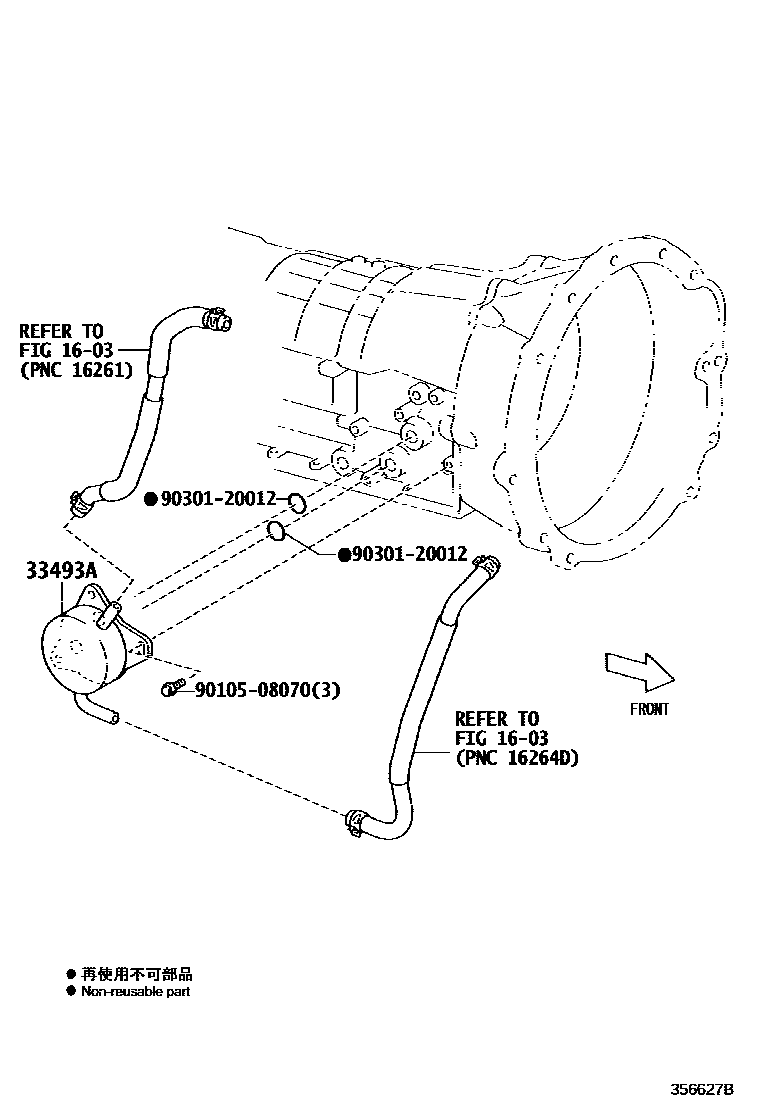

OIL COOLER & TUBE (ATM)

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-30020i201009-201212

9010508070

main90105-08070

9030120012

main90301-20012

4 parts on this diagram · 1 diagram in section
