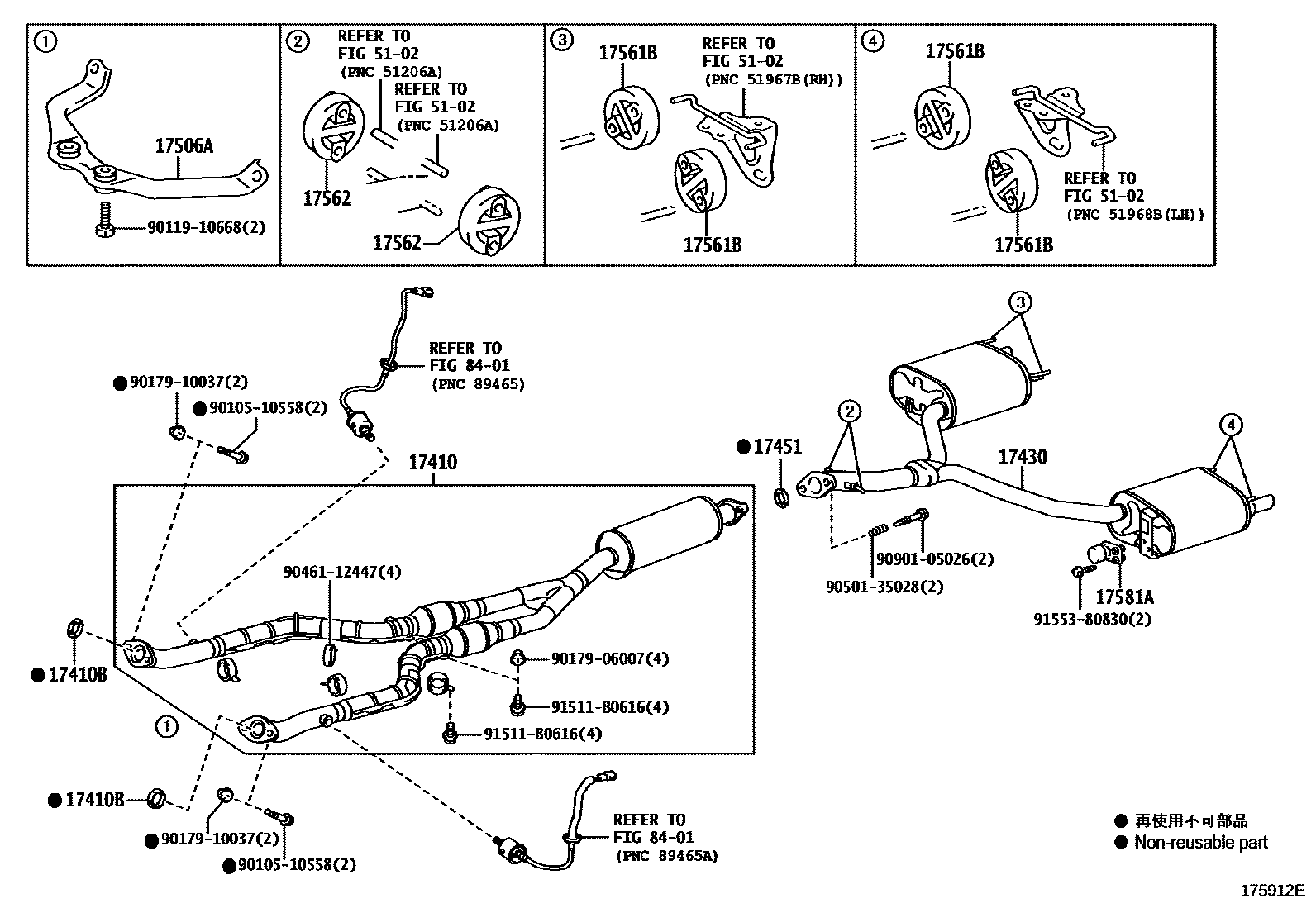

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-31B40i3GRFE..GRS202201009-201212

17410BGASKET, EXHAUST PIPE

main90917-06078i3GRFE..GRS202201009-201212

17430PIPE ASSY, EXHAUST, TAIL

main17430-31A50i3GRFE..GRS202201009-201212

17451GASKET, EXHAUST PIPE

main17451-31011i3GRFE..GRS202201009-201102

main17451-31012i3GRFE..GRS202201103-201212

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-31030i3GRFE..GRS202201009-201212

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-22030i3GRFE..GRS202201009-201212

17562SUPPORT, EXHAUST PIPE, NO.2

main17565-22040i3GRFE..GRS202201009-201212

17581ADAMPER, EXHAUST PIPE

main17581-46140i3GRFE..GRS202201009-201212

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010510558

main90105-10558

9011910668

main90119-10668

9017906007

main90179-06007

9017910037

main90179-10037

9046112447

main90461-12447

9050135028

main90501-35028

9090105026

main90901-05026

91511B0616

main91511-B0616

9155380830

main91553-80830

19 parts on this diagram · 1 diagram in section
