ENGINE OVERHAUL GASKET KIT

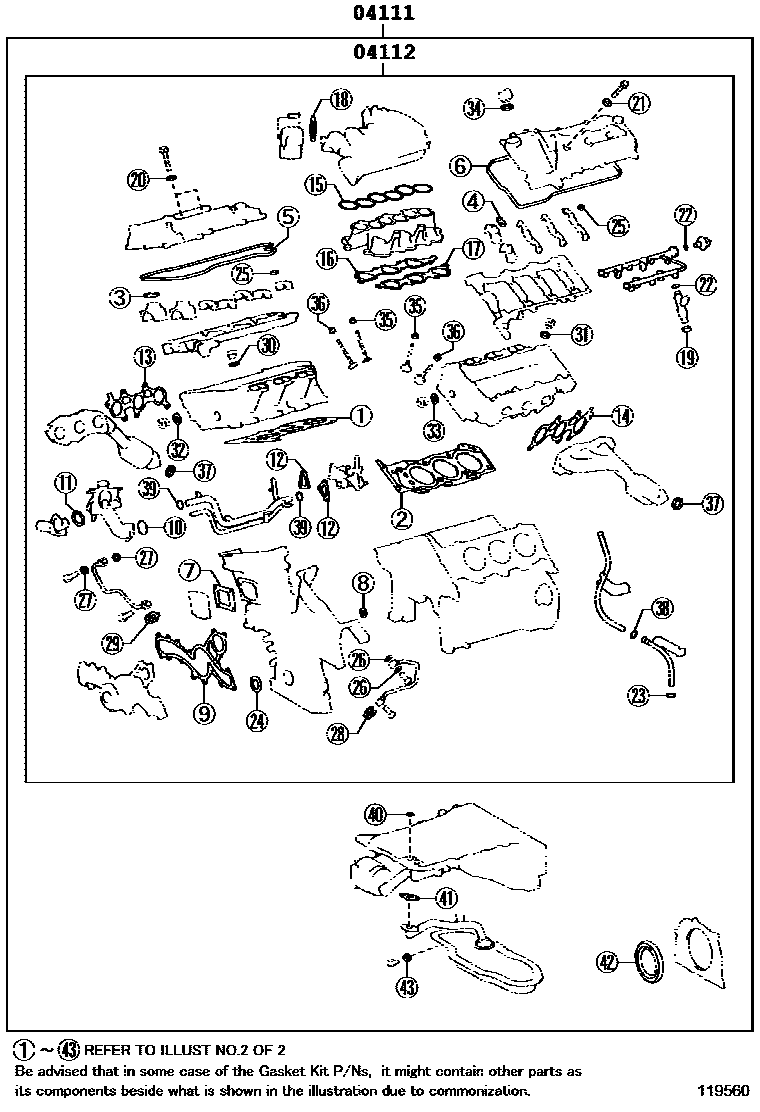

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-31560i201009-201108

main04111-31561i201108-201212

04112GASKET KIT, ENGINE VALVE GRIND

main04112-31350i201009-201108

main04112-31351i201108-201212

2 parts on this diagram · 4 diagrams in section
