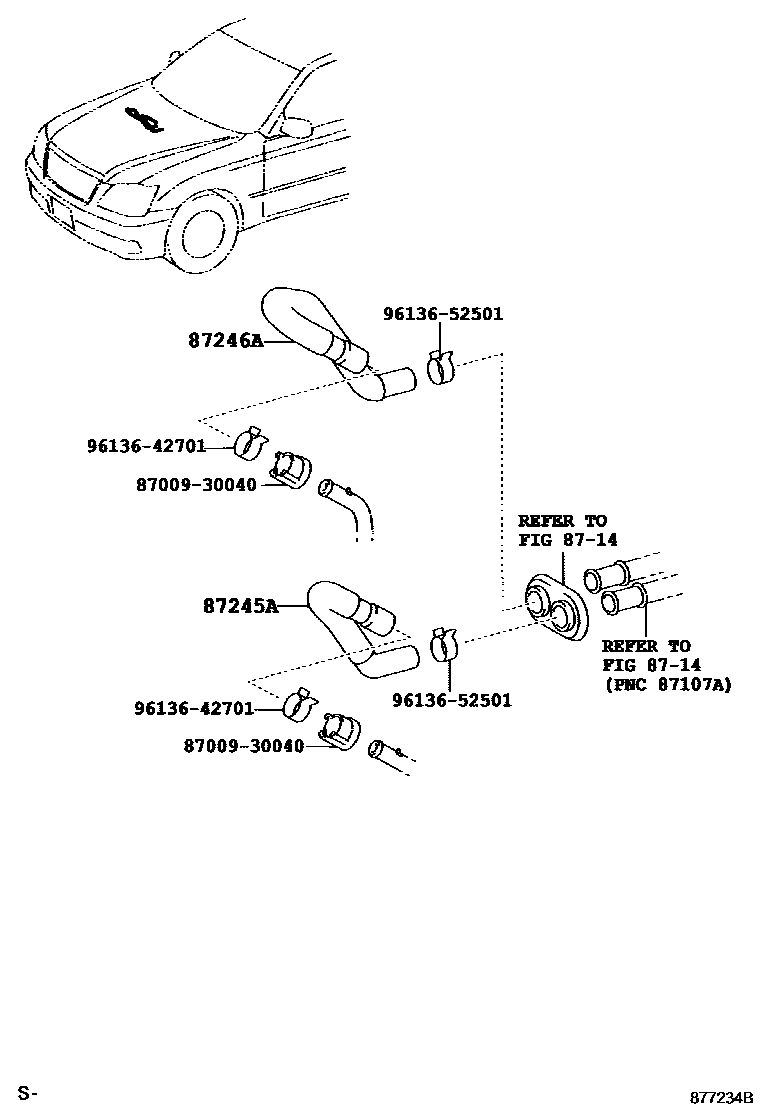

HEATING & AIR CONDITIONING - WATER PIPING

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245AHOSE, HEATER WATER, INLET A

main87245-3F440iGRS182200411-200509

87246AHOSE, HEATER WATER, OUTLET A

main87245-3F540iGRS182200411-200509

8700930040HOSE SET, WATER, NO.1

main87009-30040

9613642701

main96136-42701

9613652501

main96136-52501

6 parts on this diagram · 1 diagram in section
