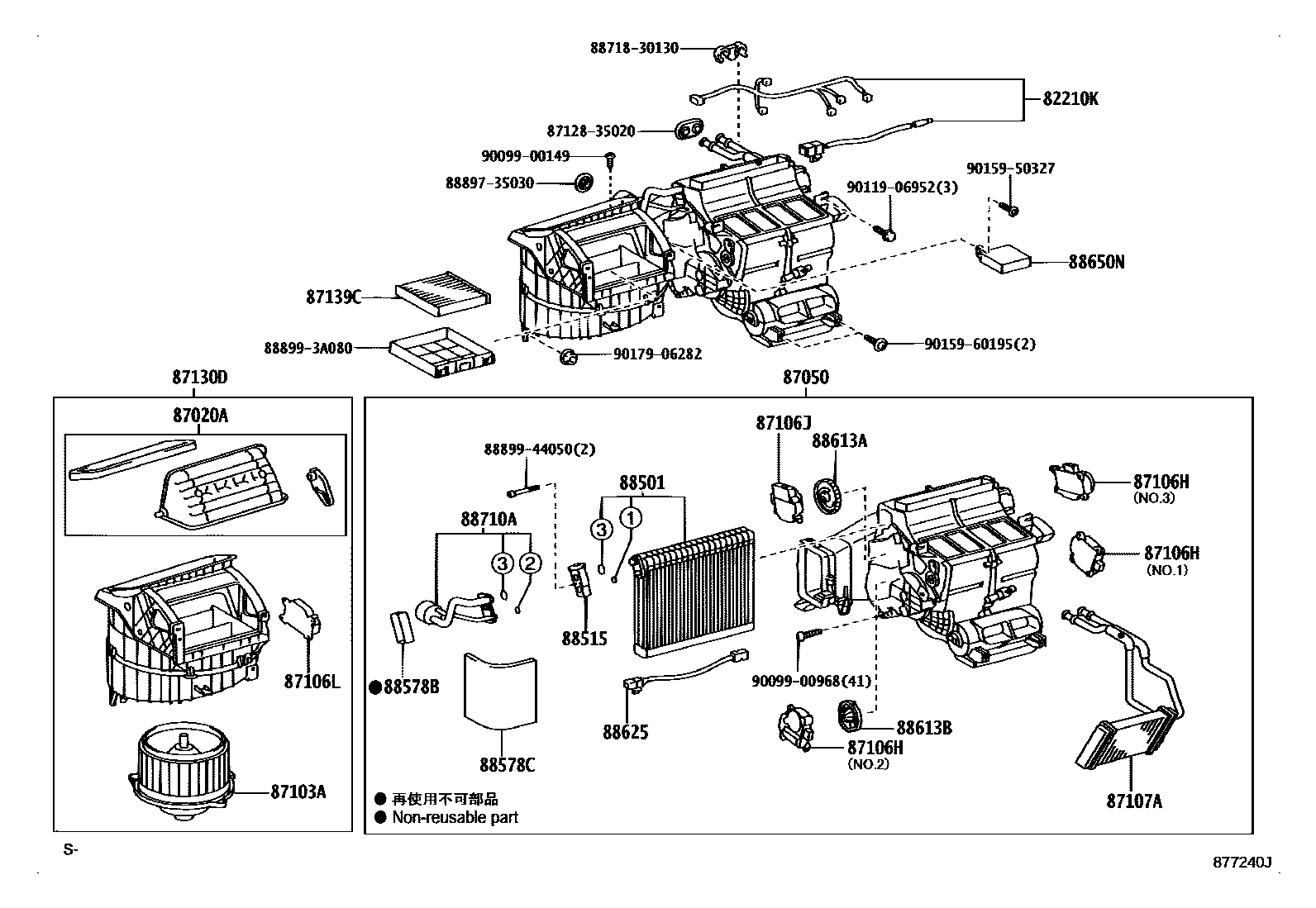

HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
87020ADAMPER ASSY, HEATER AIR
87050RADIATOR ASSY, AIR CONDITIONER
87103AMOTOR SUB-ASSY, COOLING UNIT, W/FAN
87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)
NO.1
NO.3
NO.2
87106JSERVO SUB-ASSY, DAMPER(FOR MODE)
87106LSERVO SUB-ASSY, DAMPER
87107AUNIT SUB-ASSY, HEATER RADIATOR
87130DBLOWER ASSY
87139CFILTER, CLEAN AIR
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88515VALVE, COOLER EXPANSION
88578BPACKING, COOLING UNIT, NO.1
88578CPACKING, COOLING UNIT, NO.2
88613ALEVER, COOLER CONTROL, NO.1
88613BLEVER, COOLER CONTROL, NO.2
88625THERMISTOR, COOLER, NO.1
88650NAMPLIFIER ASSY, AIR CONDITIONER
88710ATUBE ASSY, AIR CONDITIONER
8712835020GROMMET, HEATER
main87128-35020
8871830130PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-30130
8889735030VALVE, COOLER MAGNET
main88897-35030
888993A080COVER, EVAPORATOR
main88899-3A080
8889944050COVER, EVAPORATOR
main88899-44050
9009900149
main90099-00149
9009900968
main90099-00968
9011906952
main90119-06952
9015950327
main90159-50327
9015960195
main90159-60195
9017906282
main90179-06282
30 parts on this diagram · 3 diagrams in section
