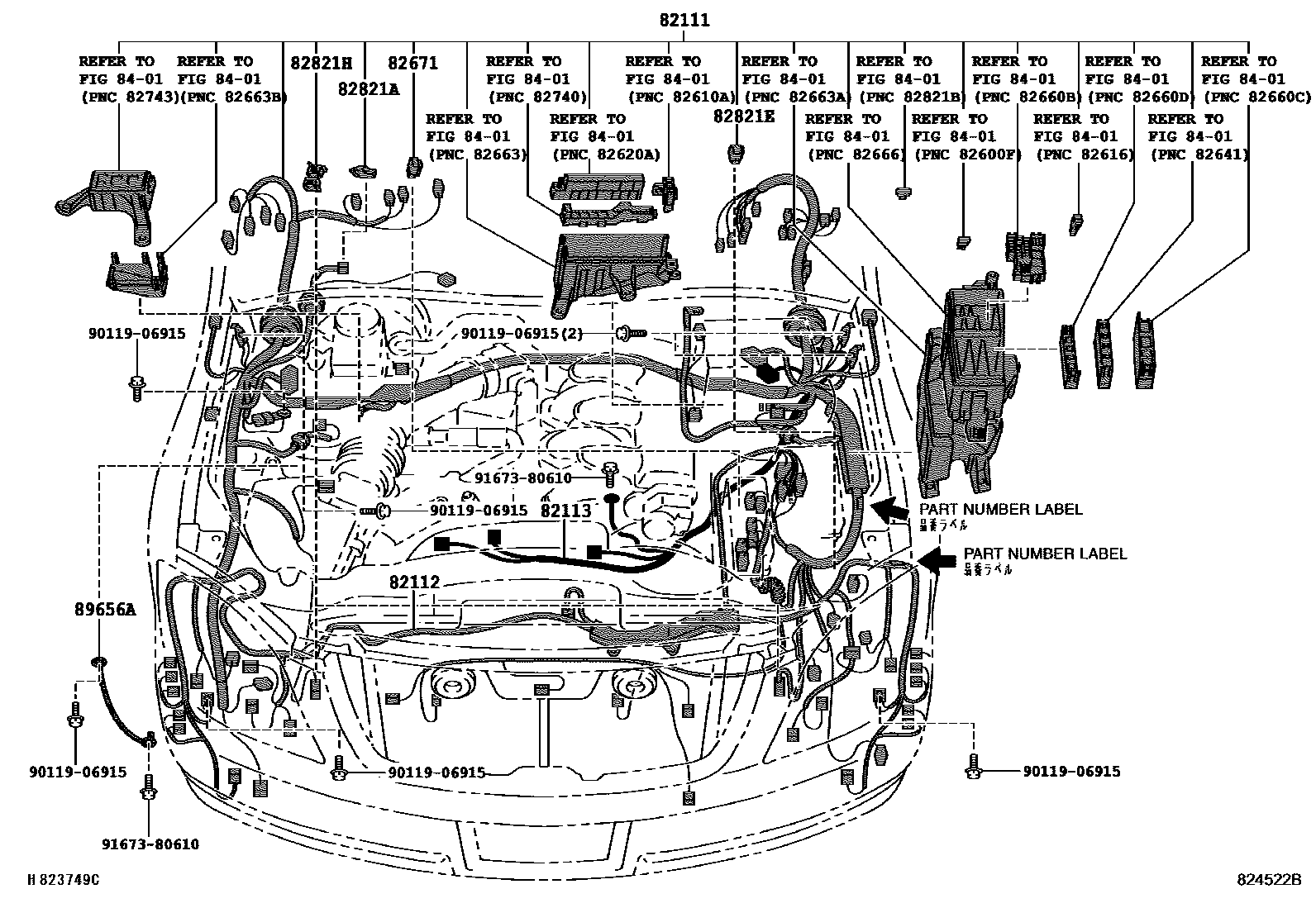

WIRING & CLAMP

82111WIRE, ENGINE ROOM MAIN

main82111-30B00i200411-200509

main82111-30B01i200509-200802

82112WIRE, ENGINE ROOM, NO.2

main82112-30780supersedes 82112-30790i200411-200509

W(REAR AIR CONDITIONER)&REAR AIR CONDITIONER-WITH(AIR PURIFIRE & COOL BOX)

82113WIRE, ENGINE ROOM, NO.3

main82113-30450i200411-200509

82671BLOCK, JUNCTION

main82671-30350i200411-200509

82821ACOVER, CONNECTOR

main82821-22120i200509-200802

82821ECOVER, CONNECTOR

main82821-35040i200509-200802

82821HCOVER, CONNECTOR

main82821-30650×2i200509-200802

8401

89656AWIRE, POWER STEERING EARTH

main89656-30010i200509-200802

9011906915

9167380610

11 parts on this diagram · 9 diagrams in section
