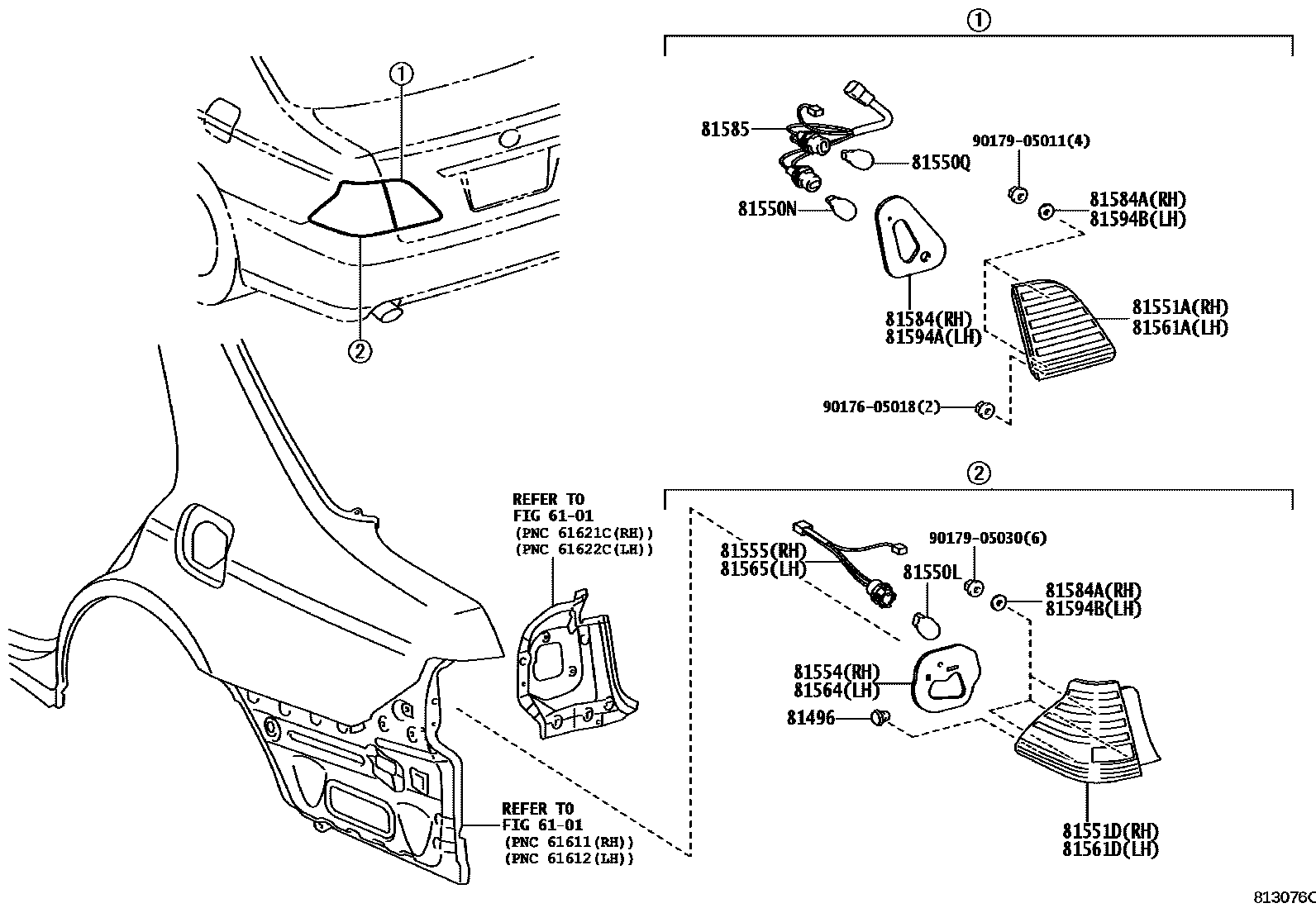

REAR COMBINATION LAMP

0001 1 0002 1

6101SIDE MEMBER

→ Go to FIG 61-01

81496GUIDE, REAR COMBINATION LAMP

main81496-60010iGRS182200411-200802

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011iGRS182200411-200802

81550NBULB, BACK UP LAMP

main90981-11059iGRS182200411-200802

81550QBULB, REAR FOG LAMP, NO.1

main90981-11059iGRS182200411-200802

81551ALENS, REAR COMBINATION LAMP, RH

main81581-30180iGRS182200411-200509

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-30880iGRS182200411-200509

main81551-30A10iGRS182200509-200610

main81551-30A11iGRS182200611-200802

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-30880iGRS182200411-200509

main81554-30A10iGRS182200509-200802

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-30880iGRS182200411-200509

main81555-30A10iGRS182200509-200802

81561ALENS, REAR COMBINATION LAMP, LH

main81591-30120iGRS182200411-200509

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-30850iGRS182200411-200509

main81561-30A00iGRS182200509-200610

main81561-30A01iGRS182200611-200802

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81564-30850iGRS182200411-200509

main81564-30A00iGRS182200509-200802

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-30850iGRS182200411-200509

main81565-30A00iGRS182200509-200802

81584PACKING, REAR LAMP RH

main81584-30170iGRS182200411-200509

main81584-30340iGRS182200509-200802

81584AGASKET, REAR LAMP RH

main81584-22040iGRS182200411-200802

81585SOCKET & WIRE, REAR LAMP

main81585-30180iGRS182200411-200509

main81585-30350iGRS182200509-200802

81594AGASKET, REAR LAMP LH

main81594-30110iGRS182200411-200509

main81594-30200iGRS182200509-200802

81594BPACKING, REAR LAMP LH

main81584-22040iGRS182200411-200802

9017605018

main90176-05018

9017905011

main90179-05011

9017905030

main90179-05030

21 parts on this diagram · 2 diagrams in section
