FOG LAMP

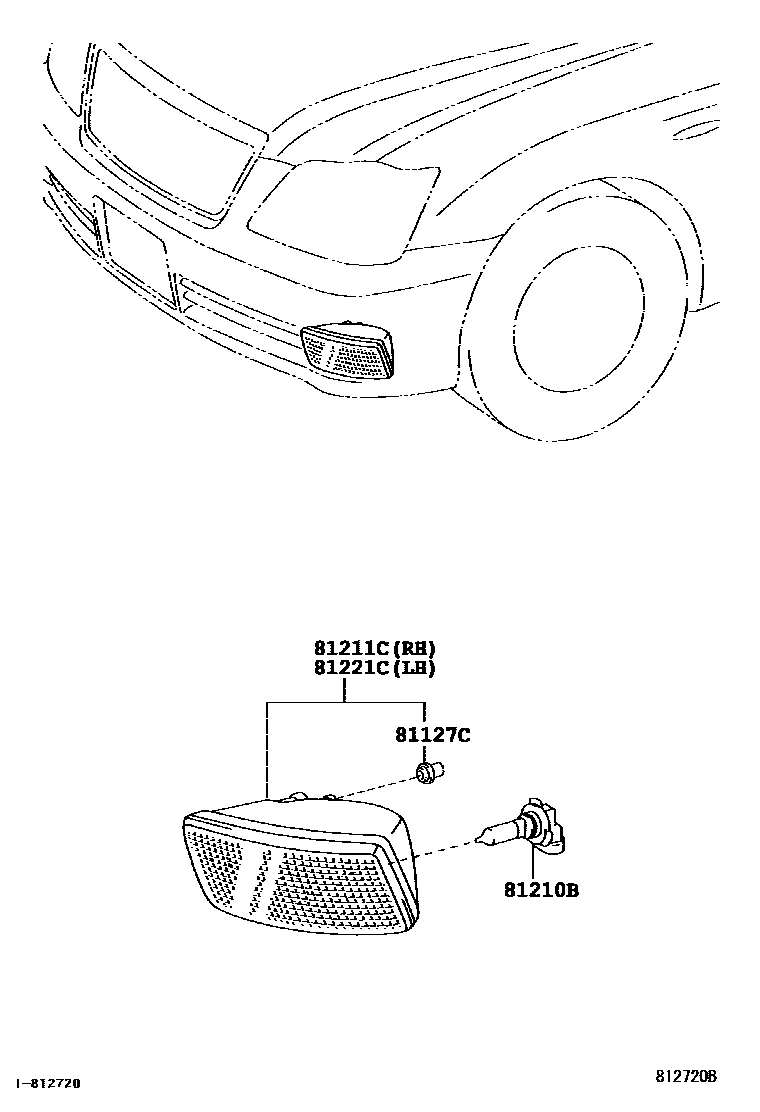

Parts diagram

81127CBEARING FOG LAMP

main90075-10811×2i200411-200509

81210BBULB, FOG LAMP

main90981-13047×2i200411-200509

12V 51W,HALOGEN

81211CLAMP UNIT, FOG LAMP, RH

main81211-30290i200411-200509

81221CLAMP UNIT, FOG LAMP, LH

main81221-30260i200411-200509

4 parts on this diagram · 1 diagram in section
