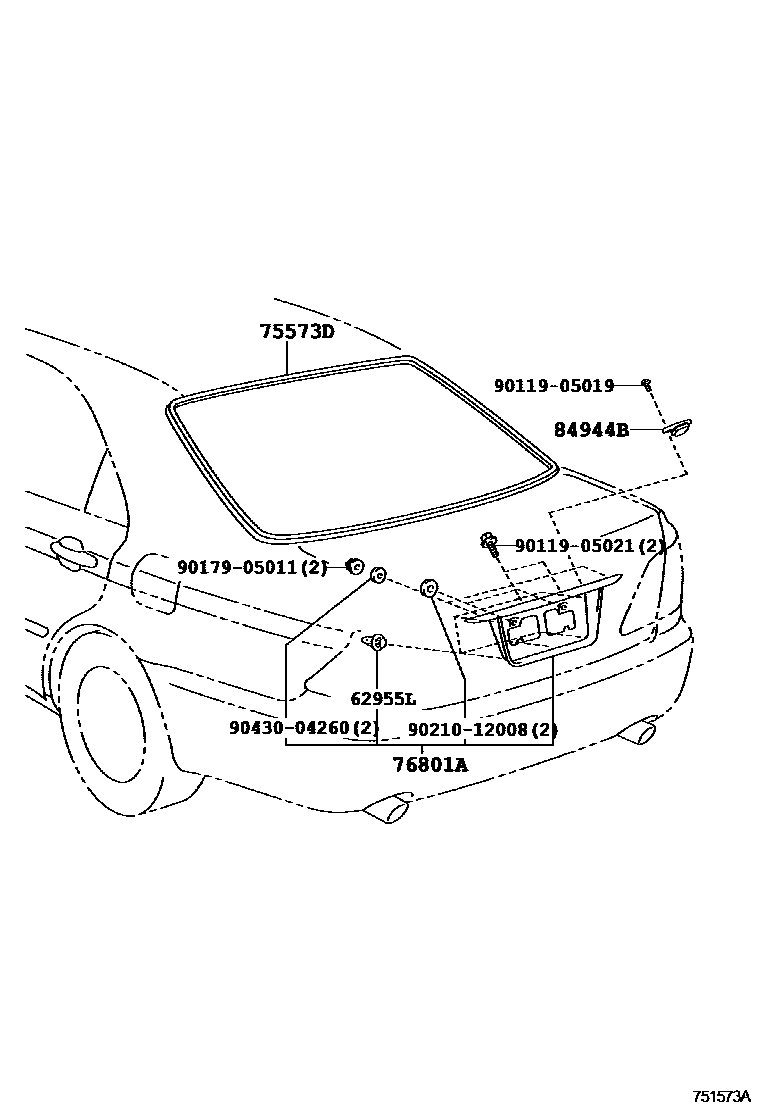

REAR MOULDING
62955LRETAINER, QUARTER VENT LOUVER
75573DMOULDING, BACK WINDOW, OUTSIDE
76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
SUPER WHITE 2,040
WHITE PEARL CS.,062
SILVER ME.,1C0
SATIN PEARL MC.,1F3
BLACK,202
BLACKISH RED MC.,3R0
DARK BLUE MC.,8P8
SUPER WHITE 2,040
WHITE PEARL CS.,062
SILVER ME.,1C0
PREMIUM SILVER PEARL,1F3
SILVER ME.,1F7
QUARTZ GRAY PM.,1G4
BLACK,202
BLACKISH RED MC.,3R0
GINGER RED M.M.,3R6
DARK BLUE MC.,8P8
DK.BLUE MC.,8S6
SUPER WHITE 2,040
WHITE PEARL CS.,062
PREMIUM SILVER PEARL,1F3
SILVER ME.,1F7
QUARTZ GRAY PM.,1G4
BLACK,202
BLACKISH RED MC.,3R0
GINGER RED M.M.,3R6
DK.BLUE MC.,8S6
84944BCOVER, LUGGAGE ELECTRICAL KEY SWITCH
9011905019
main90119-05019
9011905021
main90119-05021
9017905011
main90179-05011
9021012008
main90210-12008
9043004260
main90430-04260
9 parts on this diagram · 1 diagram in section
