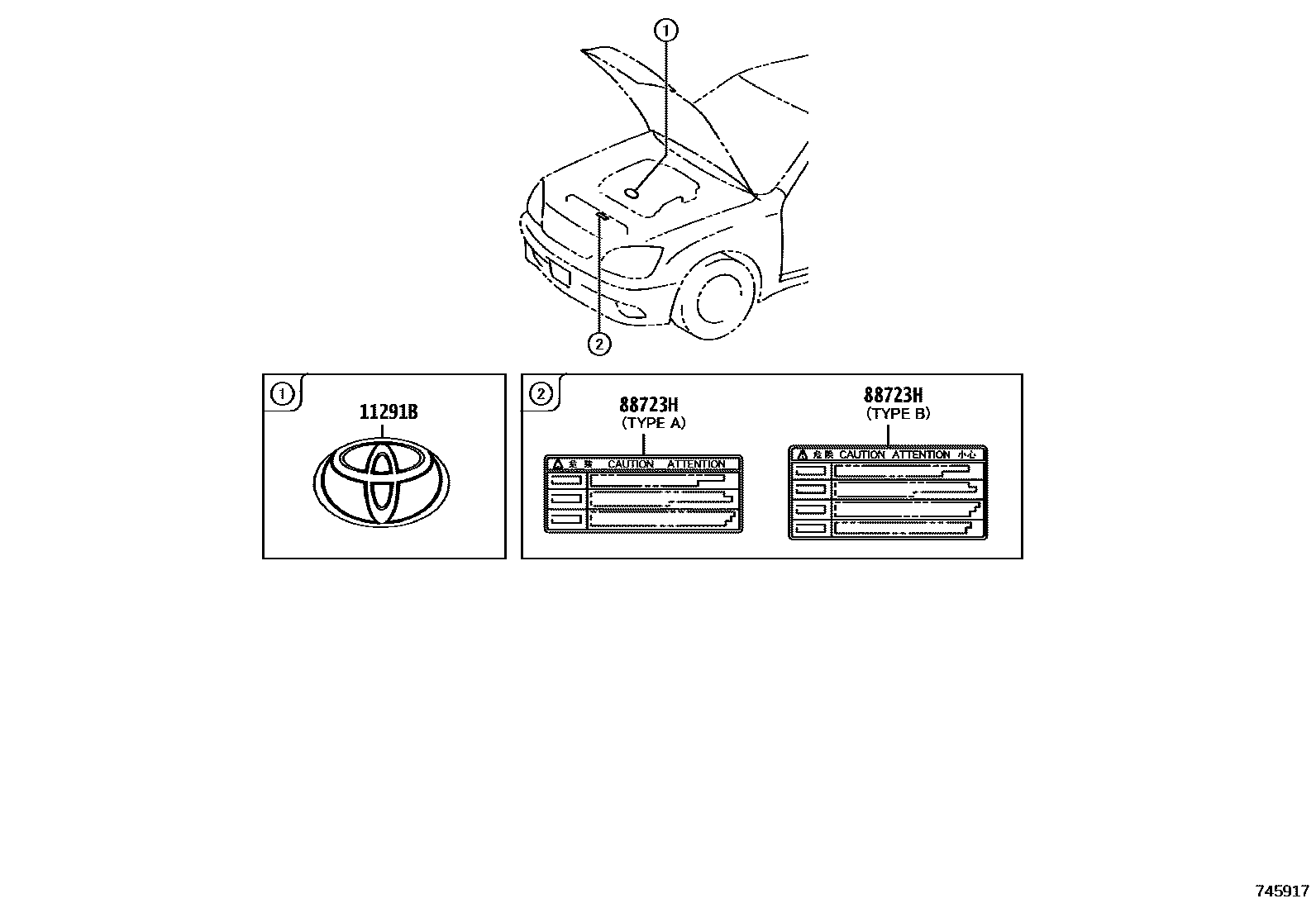

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM (1/2) 0002 1ENGINE ROOM(2/2) & EXTERIOR

11291BPLATE, ENGINE NAME

main11291-31050i3GRFE..GRS182200411-200509

88723HLABEL, COOLER SERVICE CAUTION

main16793-50010iGRS182200508-200509

TYPE B:REFER ILLUST.

main88723-20081iGRS182200411-200508

TYPE A:REFER ILLUST.

sub16793-31070

main88723-50190iGRS182200602-200802

2 parts on this diagram · 2 diagrams in section
