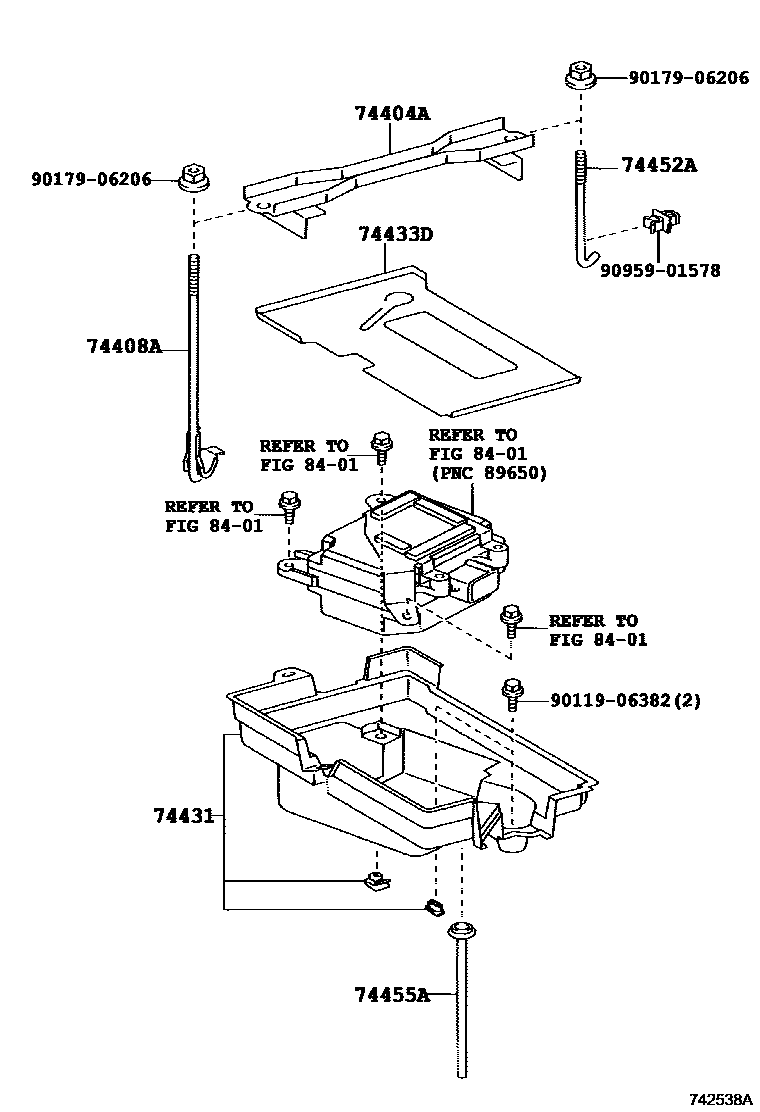

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-30280iGRS182200411-200509

74408ABOLT SUB-ASSY, BATTERY CLAMP, NO.2

main74408-30010iGRS182200411-200509

74431TRAY, BATTERY

main74431-30190iGRS182200411-200509

74433DSUPPORT, BATTERY TRAY,NO.1

main74433-30020iGRS182200411-200509

main74433-30021iGRS182200606-200802

74452ABOLT, BATTERY CLAMP, NO.2

main74452-51010iGRS182200411-200509

74455AHOSE, BATTERY DRAIN

main74455-30020iGRS182200411-200509

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906382

main90119-06382

9017906206

main90179-06206

9095901578

main90959-01578

10 parts on this diagram · 1 diagram in section
