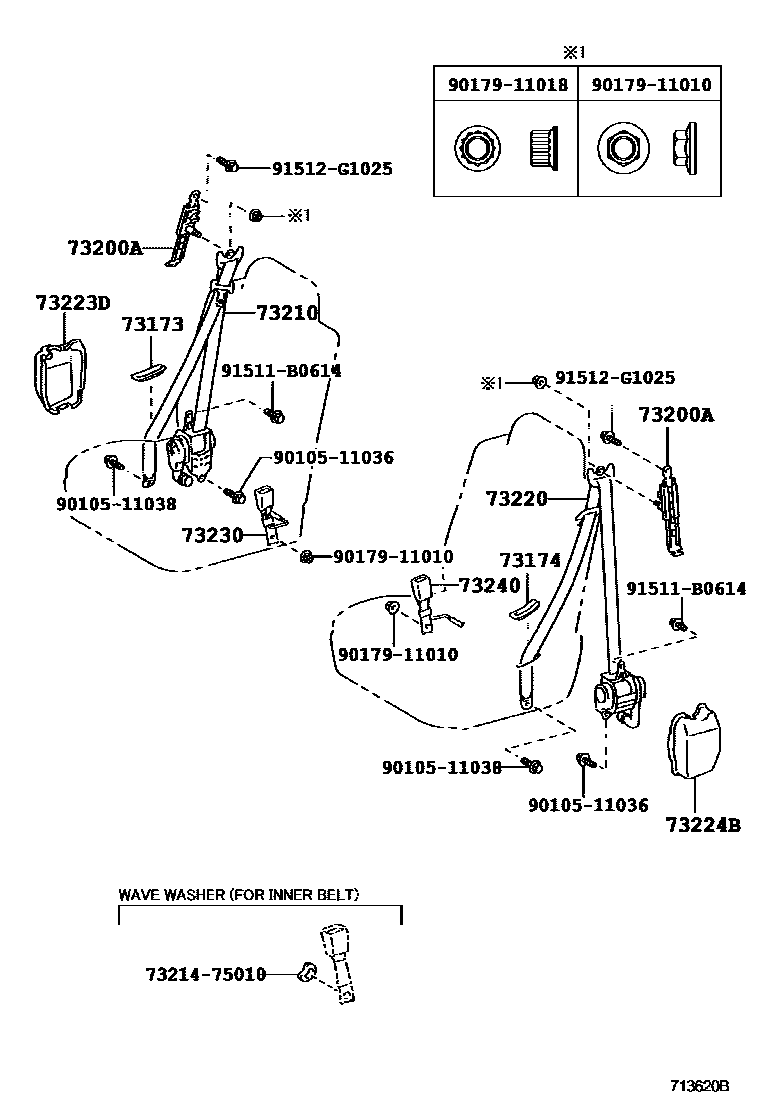

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73173COVER, FRONT SEAT BELT HOLE, RH

main73173-30040-A1iGRS182200411-200601

IVORY,TRIM0#

main73173-30040-B2iGRS182200411-200509

GRAY,TRIM1#

main73173-30040-B3iGRS182200509-200601

GRAY,TRIM1#

main73173-30070-A0iGRS182200602-200802

IVORY,TRIM0#

main73173-30070-B0iGRS182200602-200802

GRAY,TRIM1#

73174COVER, FRONT SEAT BELT HOLE, LH

main73174-30040-A1iGRS182200411-200601

IVORY,TRIM0#

main73174-30040-B2iGRS182200411-200509

GRAY,TRIM1#

main73174-30040-B3iGRS182200509-200601

GRAY,TRIM1#

main73174-30070-A0iGRS182200602-200802

IVORY,TRIM0#

main73174-30070-B0iGRS182200602-200802

GRAY,TRIM1#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-30080iGRS182200411-200802

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-30891-A0iGRS182200411-200502

IVORY & NEW IVORY,TRIM0#

main73210-30891-B1iGRS182200411-200502

GRAY,TRIM1#

main73210-30892-A0iGRS182200502-200802

IVORY,TRIM0#

main73210-30892-B1iGRS182200502-200509

GRAY,TRIM1#

main73210-30892-B2iGRS182200509-200802

GRAY,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-30851-A0iGRS182200411-200502

IVORY & NEW IVORY,TRIM0#

main73220-30851-B1iGRS182200411-200502

GRAY,TRIM1#

main73220-30852-A0iGRS182200502-200802

IVORY,TRIM0#

main73220-30852-B1iGRS182200502-200509

GRAY,TRIM1#

main73220-30852-B2iGRS182200509-200802

GRAY,TRIM1#

73223DCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-30080iGRS182200411-200802

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73224-30050iGRS182200411-200802

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-30860-A0iGRS182200411-200802

IVORY,TRIM0#

main73230-30860-B0iGRS182200411-200509

GRAY,TRIM1#

main73230-30860-B1iGRS182200509-200802

GRAY,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-30870-A0iGRS182200411-200802

IVORY,TRIM0#

main73230-30870-B0iGRS182200411-200509

GRAY,TRIM1#

main73230-30870-B1iGRS182200509-200802

GRAY,TRIM1#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010511036

main90105-11036

9010511038

main90105-11038

9017911010

main90179-11010

9017911018

main90179-11018

91511B0614

main91511-B0614

91512G1025

main91512-G1025

16 parts on this diagram · 2 diagrams in section
