REAR SEAT & SEAT TRACK

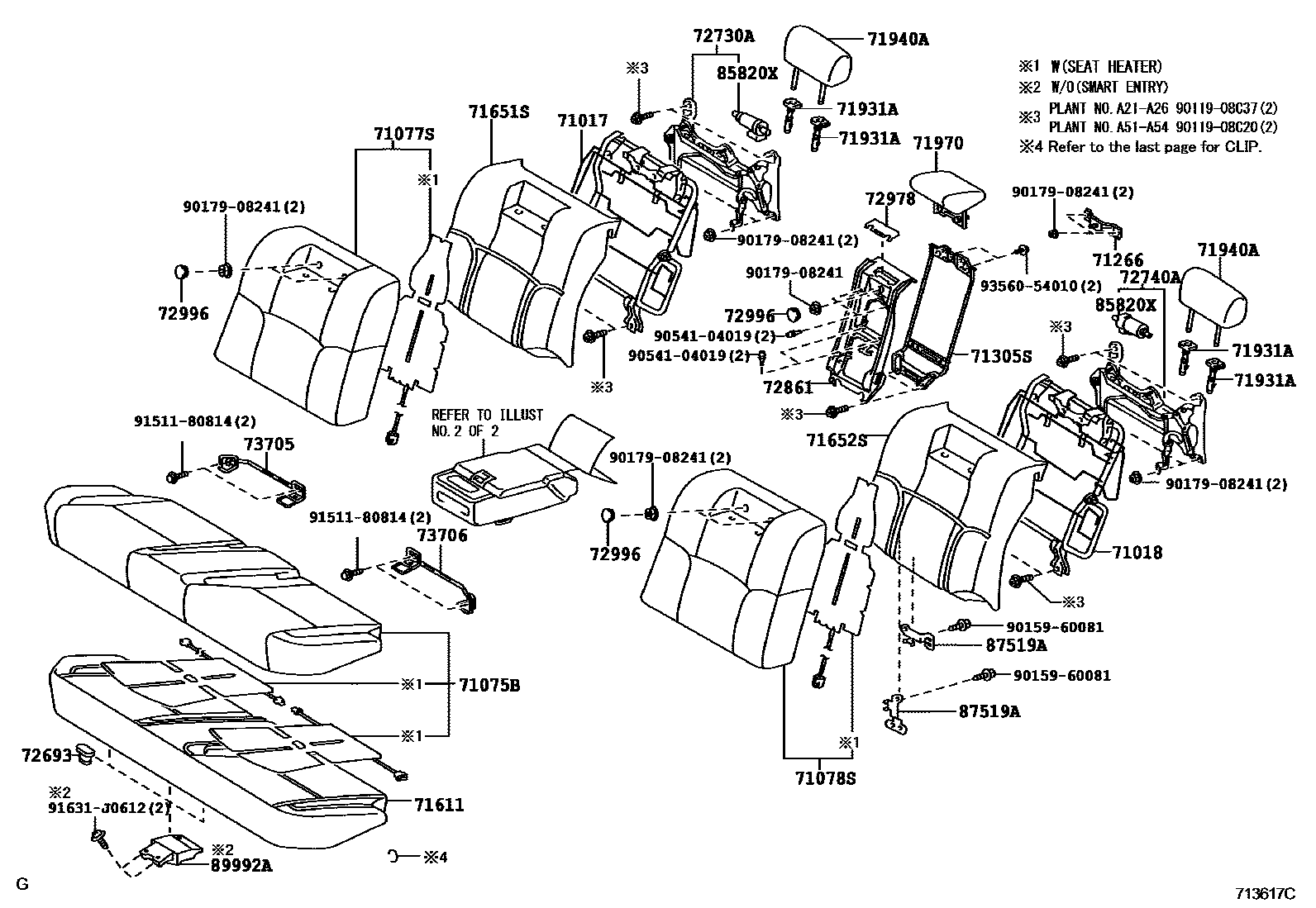

Parts diagram
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-30740supersedes 71017-30750i200411-200509
W(REAR AIR CONDITIONER)&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN); W(REAR AIR CONDITIONER)&SEAT COVER MATERIAL-LEATHER&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN)
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-30220i200411-200509
W(REAR AIR CONDITIONER)&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN); W(REAR AIR CONDITIONER)&SEAT COVER MATERIAL-LEATHER&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN)
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-30A30-A1i200411-200509
IVORY,TRIM01
main71075-30A30-B0i200411-200509
GRAY,TRIM1#
main71075-30A30-B1i200509-200802
GRAY,TRIM1#
main71075-30A20-A1supersedes 71075-30A30-A1i200411-200509
W(REAR AIR CONDITIONER)&SEAT COVER MATERIAL-LEATHER&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),NEW IVORY,TRIM0#
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-30A30-A1i200411-200509
W(REAR AIR CONDITIONER)&SEAT COVER MATERIAL-LEATHER&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),NEW IVORY,TRIM0#
main71077-30A40-A1i200411-200509
W(REAR AIR CONDITIONER)&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),IVORY,TRIM0#
main71077-30A40-B1i200411-200509
W(REAR AIR CONDITIONER)&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),GRAY,TRIM1#
main71077-30A40-B2i200509-200802
WITH(REAR AIR CONDITIONER)&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIRBAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD),GRAY,TRIM1#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-30630-A1i200509-200802
WITH(REAR AIR CONDITIONER)&SEAT COVER MATERIAL-LEATHER&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIR BAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD),NEW IVORY,TRIM0#
main71078-30640-A1i200509-200802
WITH(REAR AIR CONDITIONER)&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIRBAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD),IVORY,TRIM0#
main71078-30640-B1i200411-200509
W(REAR AIR CONDITIONER)&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),GRAY,TRIM1#
main71078-30640-B2i200509-200802
WITH(REAR AIR CONDITIONER)&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIRBAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD),GRAY,TRIM1#
71266GUSSET, REAR SEATBACK FRAME
main71266-30130i200509-200802
WITH(REAR AIR CONDITIONER)&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)
71305SFRAME SUB-ASSY, CENTER SEATBACK
main71360-30010i200509-200802
WITH(REAR AIR CONDITIONER)&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIRBAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD); WITH(REAR AIR CONDITIONER)&SEAT COVER MATERIAL-LEATHER&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIR BAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD)
71611PAD, REAR SEAT CUSHION
main71503-30170supersedes 71503-30160i200509-200802
WITH(REAR AIR CONDITIONER)&SEAT COVER MATERIAL-LEATHER&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIR BAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD)
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-30A00supersedes 71651-30A10i200411-200509
W(REAR AIR CONDITIONER)&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN); W(REAR AIR CONDITIONER)&SEAT COVER MATERIAL-LEATHER&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN)
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-30520i200411-200509
W(REAR AIR CONDITIONER)&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN); W(REAR AIR CONDITIONER)&SEAT COVER MATERIAL-LEATHER&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN)
71931ASUPPORT, REAR SEAT HEADREST
main71930-44020-A1×2i200705-200802
W(LOCK),IVORY,TRIM0#
main71930-44020-B2×2i200705-200802
W(LOCK),GRAY,TRIM1#
main71930-47010-A2×2i200411-200509
W(LOCK),IVORY,TRIM0#
main71930-47010-B9×2i200411-200509
W(LOCK),GRAY,TRIM1#
main71930-47010-P1×2i200509-200705
W(LOCK),GRAY,TRIM1#
main71931-47010-A6×2i200411-200509
W/O(LOCK),IVORY,TRIM0#
main71931-47010-P2×2i200411-200509
W/O(LOCK),GRAY,TRIM1#
main71931-47010-P4×2i200509-200802
W/O(LOCK),GRAY,TRIM1#
main71956-47010-A1i200411-200509
W/O(LOCK),IVORY,TRIM0#,CENTER
main71956-47010-B9i200411-200509
W/O(LOCK),GRAY,TRIM1#,CENTER
main71956-47010-P0i200509-200802
W/O(LOCK),GRAY,TRIM1#,CENTER
main71970-47010-A1i200509-200802
W(LOCK),IVORY,TRIM0#,CENTER
main71970-47010-B9i200411-200509
W(LOCK),GRAY,TRIM1#,CENTER
main71970-47010-P0i200509-200802
W(LOCK),GRAY,TRIM1#,CENTER
71940AHEADREST ASSY, REAR SEAT
main71940-30A20-A1×2i200411-200509
IVORY,TRIM01
main71940-30A20-B0×2i200411-200509
GRAY,TRIM1#
main71940-30A20-B1×2i200509-200802
GRAY,TRIM1#
main71940-30A10-A1×2supersedes 71940-30A20-A1i200411-200509
W(REAR AIR CONDITIONER)&SEAT COVER MATERIAL-LEATHER&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),NEW IVORY,TRIM0#
71970HEADREST ASSY, REAR SEAT
main71960-30270-A1i200411-200509
IVORY,TRIM01
main71960-30240-A1supersedes 71960-30270-A1i200411-200509
W(REAR AIR CONDITIONER)&SEAT COVER MATERIAL-LEATHER&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),NEW IVORY,TRIM0#
main71960-30250-A0supersedes 71960-30270-A1i200411-200509
W(REAR AIR CONDITIONER)&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),IVORY,TRIM0#
main71960-30250-B0supersedes 71960-30270-B1i200411-200509
W(REAR AIR CONDITIONER)&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),GRAY,TRIM1#
main71960-30250-B1supersedes 71960-30270-B1i200509-200802
WITH(REAR AIR CONDITIONER)&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIRBAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD),GRAY,TRIM1#
72693HOOK, REAR SEAT CUSHION LOCK
main72693-12080×2i200411-200509
72730AADJUSTER ASSY, REAR SEAT RECLINING, RH
main72730-30040i200411-200509
W(REAR AIR CONDITIONER)&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)
72740AADJUSTER ASSY, REAR SEAT RECLINING, LH
main72740-30040i200509-200802
WITH(REAR AIR CONDITIONER)&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)
72861TRIM, CENTER ARMREST CORNER
main72861-30040-A0i200411-200509
W(REAR AIR CONDITIONER)&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),IVORY,TRIM0#; W(REAR AIR CONDITIONER)&SEAT COVER MATERIAL-LEATHER&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),NEW IVORY,TRIM0#
main72861-30040-A2i200509-200802
WITH(REAR AIR CONDITIONER)&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIRBAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD),IVORY,TRIM02
main72861-30040-B3i200411-200509
W(REAR AIR CONDITIONER)&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),GRAY,TRIM1#
72978COVER, NO.2 CENTER SEATBACK
main72978-30010-A0i200509-200802
WITH(REAR AIR CONDITIONER)&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIRBAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD),NEW IVORY,TRIM0#; WITH(REAR AIR CONDITIONER)&SEAT COVER MATERIAL-LEATHER&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIR BAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD),NEW IVORY,TRIM02
main72978-30010-A2i200411-200509
W(REAR AIR CONDITIONER)&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),IVORY,TRIM0#
main72978-30010-A3i200411-200509
W(REAR AIR CONDITIONER)&SEAT COVER MATERIAL-LEATHER&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),NEW IVORY,TRIM0#
main72978-30010-B1i200411-200509
W(REAR AIR CONDITIONER)&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),GRAY,TRIM1#
main72978-30010-B3i200509-200802
WITH(REAR AIR CONDITIONER)&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIRBAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD),GRAY,TRIM1#
72996COVER, REAR SEATBACK, RH
main72996-50100-A2×5i200411-200509
NEW IVORY,TRIM0#; W(REAR AIR CONDITIONER)&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE),NEW IVORY,TRIM0#
main72996-50100-B1×5supersedes 72996-50100-B2i200509-200802
GRAY,TRIM1#; WITH(REAR AIR CONDITIONER)&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE),GRAY,TRIM1#
main72996-50100-B2×5i200411-200509
GRAY,TRIM1#; W(REAR AIR CONDITIONER)&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE),GRAY,TRIM1#
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
main73705-30030i200509-200802
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
main73706-30030i200509-200802
85820XMOTOR ASSY, POWER SEAT
main85820-33020×2i200509-200802
WITH(REAR AIR CONDITIONER)&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)
87519ABRACKET, SEAT HEATER CONNECTOR CLAMP
main87519-30020×2i200509-200802
WITH(REAR AIR CONDITIONER)&SEAT COVER MATERIAL-LEATHER&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)&SRS AIR BAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD)
89992ACASE, LESS OSCILLATOR ELECTRICAL KEY
main89992-30040i200411-200509
main89992-30120i200509-200802
9015960081
main90159-60081
9017908241
main90179-08241
9054104019
main90541-04019
9151180814
main91511-80814
91631J0612
main91631-J0612
9356054010
main93560-54010

30 parts on this diagram · 4 diagrams in section
