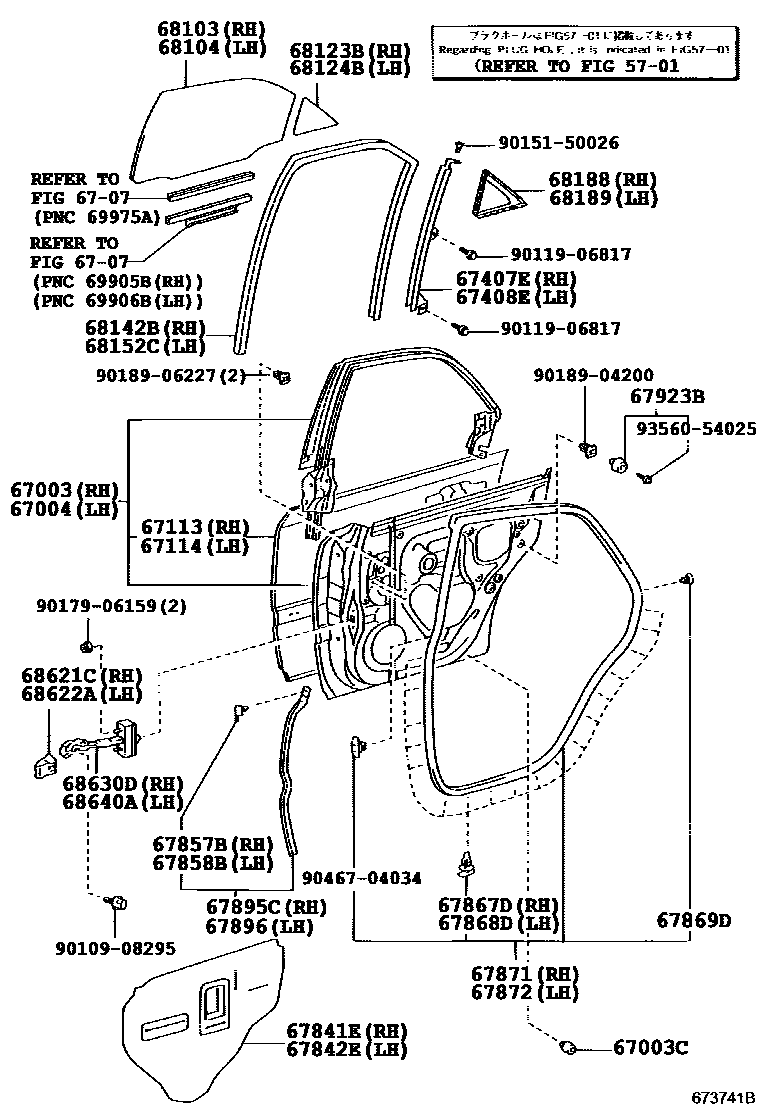

REAR DOOR PANEL & GLASS
5701HOLE PLUG
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
WITH(REAR AIR CONDITIONER)&EASY-ACCESS POWER SYSTEM-WITH(TILT+SEAT SLIDE)
6707REAR DOOR WINDOW REGULATOR & HINGE
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67857BPROTECTOR, REAR DOOR PANEL, RH
67858BPROTECTOR, REAR DOOR PANEL, LH
LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67869DCLIP, DOOR WEATHERSTRIP
BLACK
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67895CWEATHERSTRIP, REAR DOOR, NO.3 RH
67896WEATHERSTRIP, REAR DOOR, NO.3 LH
67923BCUSHION, REAR DOOR STIFFENER, NO.1
68103GLASS SUB-ASSY, REAR DOOR, RH
*UVCT,T=4.0,GREEN
68104GLASS SUB-ASSY, REAR DOOR, LH
*UVCT,T=4.0,GREEN
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
*UVCT,T=4.0,GREEN
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
*UVCT,T=4.0,GREEN
68142BRUN, REAR DOOR WINDOW, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68621CCOVER, REAR DOOR CHECK, RH
68622ACOVER, REAR DOOR CHECK, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
9010908295
main90109-08295
9011906817
main90119-06817
9015150026
main90151-50026
9017906159
main90179-06159
9018904200
main90189-04200
9018906227
main90189-06227
9046704034
main90467-04034
9356054025
main93560-54025
41 parts on this diagram · 2 diagrams in section
