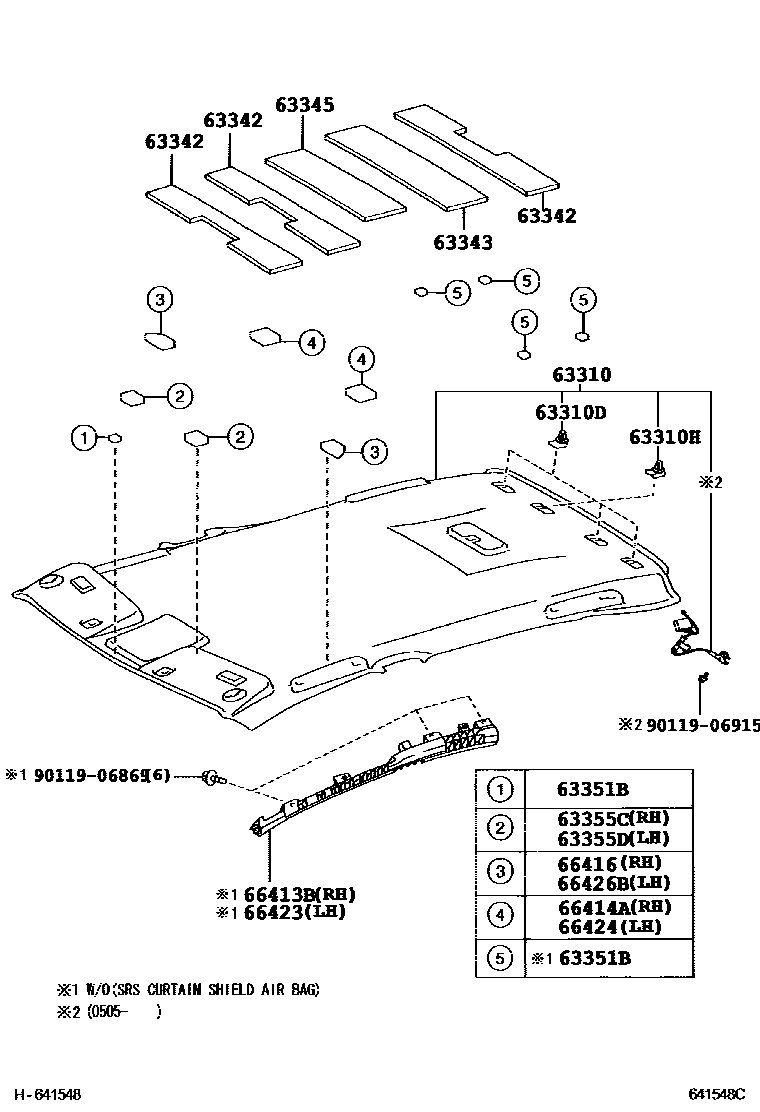

ROOF HEADLINING & SILENCER PAD

63310HEADLINING ASSY, ROOF

main63311-30300-A0supersedes 63311-30570-A0i200411-200506

W(REAR AIR CONDITIONER)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),IVORY,TRIM0#

main63311-30300-B0supersedes 63311-30570-B1i200411-200506

W(REAR AIR CONDITIONER)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),LT.GRAY,TRIM1#

main63311-30310-A0supersedes 63311-30570-A0i200411-200506

WITH(TILT & SLIDE MOON ROOF)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),IVORY,TRIM0#; WITH(TILT & SLIDE MOON ROOF),IVORY,TRIM0#

main63311-30310-B0supersedes 63311-30570-B1i200411-200506

WITH(TILT & SLIDE MOON ROOF)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),LT.GRAY,TRIM1#; WITH(TILT & SLIDE MOON ROOF),LT.GRAY,TRIM1#

main63311-30320-A0supersedes 63311-30570-A0i200411-200506

W(REAR AIR CONDITIONER)&WITH(TILT & SLIDE MOON ROOF)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),IVORY,TRIM0#

main63311-30320-B0supersedes 63311-30570-B1i200411-200506

W(REAR AIR CONDITIONER)&WITH(TILT & SLIDE MOON ROOF)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),LT.GRAY,TRIM1#

main63311-30580-A0supersedes 63311-30570-A0i200509-200802

WITH(REAR AIR CONDITIONER)&SRS AIR BAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD),IVORY,TRIM0#

main63311-30580-B0supersedes 63311-30570-B1i200506-200509

W(REAR AIR CONDITIONER)&REAR AIR CONDITIONER-WITH(AIR PURIFIRE & COOL BOX)&SRS AIRBAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),LT.GRAY,TRIM1#

main63311-30580-B1supersedes 63311-30570-B1i200509-200802

WITH(REAR AIR CONDITIONER)&SRS AIR BAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD),GRAY,TRIM1#

main63311-30590-A0supersedes 63311-30570-A0i200506-200509

WITH(TILT & SLIDE MOON ROOF)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),IVORY,TRIM0#; WITH(TILT & SLIDE MOON ROOF),IVORY,TRIM0#

main63311-30590-B0supersedes 63311-30570-B1i200506-200509

WITH(TILT & SLIDE MOON ROOF)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),LT.GRAY,TRIM1#; WITH(TILT & SLIDE MOON ROOF),LT.GRAY,TRIM1#

main63311-30590-B1supersedes 63311-30570-B1i200509-200802

WITH(TILT & SLIDE MOON ROOF)&SRS AIR BAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD),GRAY,TRIM1#; WITH(TILT & SLIDE MOON ROOF),GRAY,TRIM1#

main63311-30600-A0supersedes 63311-30570-A0i200506-200509

W(REAR AIR CONDITIONER)&WITH(TILT & SLIDE MOON ROOF)&REAR AIR CONDITIONER-WITH(AIRPURIFIRE & COOL BOX)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),IVORY,TRIM0#

main63311-30600-B0supersedes 63311-30570-B1i200506-200509

W(REAR AIR CONDITIONER)&WITH(TILT & SLIDE MOON ROOF)&REAR AIR CONDITIONER-WITH(AIRPURIFIRE & COOL BOX)&SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),LT.GRAY,TRIM1#

main63311-30600-B1supersedes 63311-30570-B1i200509-200802

WITH(REAR AIR CONDITIONER)&WITH(TILT & SLIDE MOON ROOF)&SRS AIR BAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD),GRAY,TRIM1#

63310DCLIP, ROOF HEADLINING

main90467-09126×3i200412-200505

W(REAR AIR CONDITIONER)&REAR AIR CONDITIONER-WITH(AIR PURIFIRE & COOL BOX)&SRS AIRBAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN)

63310HCLIP(FOR ROOF HEADLINING)

main90467-10181i200412-200505

W(REAR AIR CONDITIONER)&REAR AIR CONDITIONER-WITH(AIR PURIFIRE & COOL BOX)&SRS AIRBAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN)

63342PAD, ROOF SILENCER, NO.2

main63342-30200i200509-200802

WITH(REAR AIR CONDITIONER)&WITH(TILT & SLIDE MOON ROOF)&SRS AIR BAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD); WITH(TILT & SLIDE MOON ROOF); WITH(TILT & SLIDE MOON ROOF)&SRS AIR BAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD)

63343PAD, ROOF SILENCER, NO.3

main63343-30240i200412-200505

W(REAR AIR CONDITIONER)&REAR AIR CONDITIONER-WITH(AIR PURIFIRE & COOL BOX)&SRS AIRBAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN)

63345PAD, ROOF SILENCER, NO.5

main63345-30160i200412-200505

W(REAR AIR CONDITIONER)&REAR AIR CONDITIONER-WITH(AIR PURIFIRE & COOL BOX)&SRS AIRBAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN)

63351BPAD, ROOF HEADLINING

main63351-30050i200509-200802

SRS AIR BAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD); WITH(REAR AIR CONDITIONER)&SRS AIR BAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD); WITH(TILT & SLIDE MOON ROOF)

63355CPAD, ROOF HEADLINING, RH

main63355-30020i200412-200505

SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN)

63355DPAD, ROOF HEADLINING, LH

main63355-30020i200412-200505

SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN); W(REAR AIR CONDITIONER)&REAR AIR CONDITIONER-WITH(AIR PURIFIRE & COOL BOX)&SRS AIRBAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN)

66413BSPACER, SIDE RAIL, FRONT RH

main66413-30050i200411-200509

66414ASPACER, SIDE RAIL, REAR RH

main66414-30050i200412-200505

SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN)

66416SPACER, SIDE RAIL, REAR NO.3 RH

main66416-30010i200412-200505

W(REAR AIR CONDITIONER)&REAR AIR CONDITIONER-WITH(AIR PURIFIRE & COOL BOX)&SRS AIRBAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN)

66423SPACER, SIDE RAIL, FRONT LH

main66423-30050i200411-200509

66424SPACER, SIDE RAIL, REAR LH

main66414-30050i200412-200505

SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN); W(REAR AIR CONDITIONER)&REAR AIR CONDITIONER-WITH(AIR PURIFIRE & COOL BOX)&SRS AIRBAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN)

66426BSPACER, SIDE RAIL, REAR NO.3 LH

main66426-30010i200412-200505

W(REAR AIR CONDITIONER)&REAR AIR CONDITIONER-WITH(AIR PURIFIRE & COOL BOX)&SRS AIRBAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN)

9011906869

main90119-06869

9011906915

main90119-06915

17 parts on this diagram · 2 diagrams in section
