INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

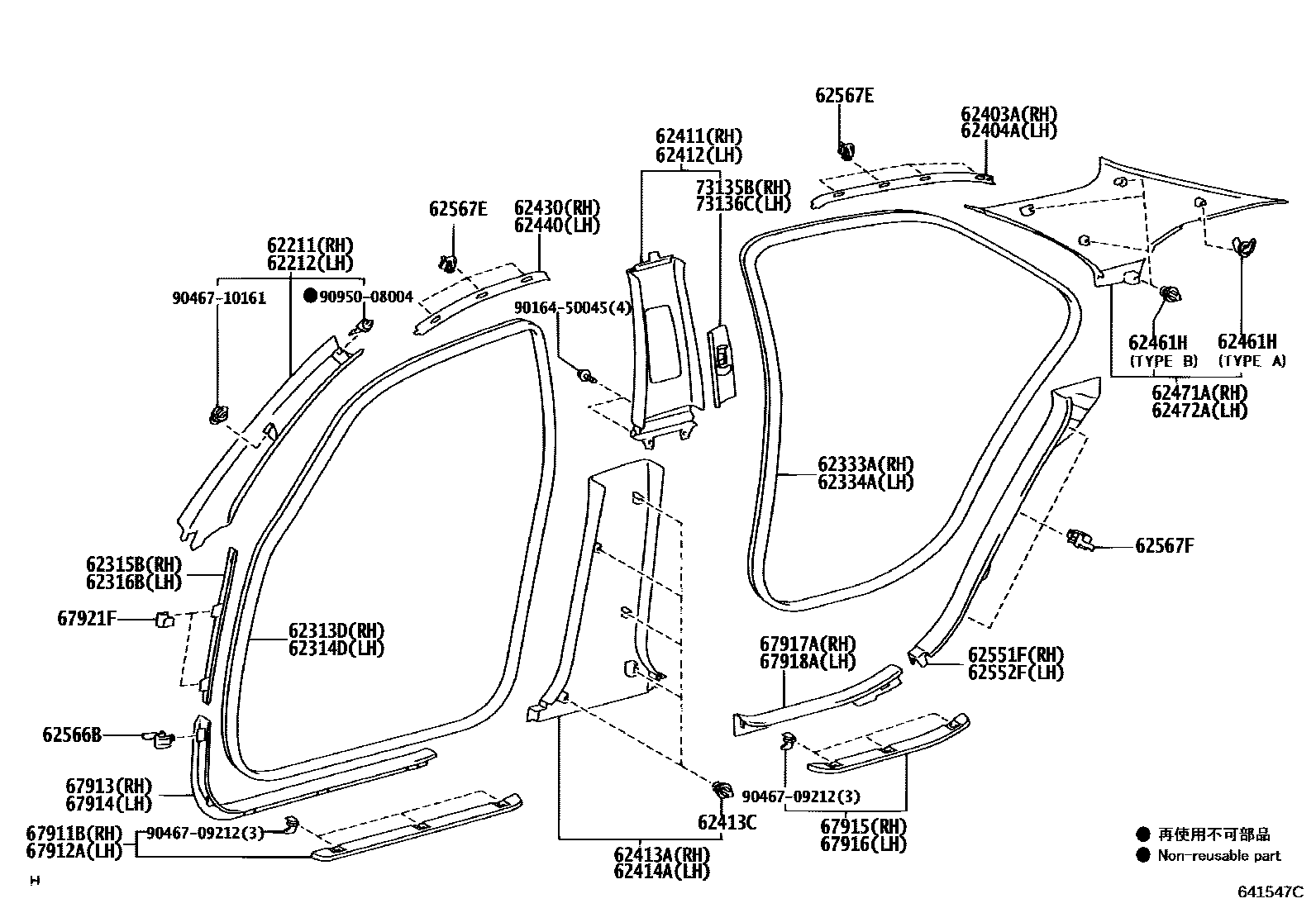

Parts diagram
62211GARNISH, FRONT PILLAR, RH
main62211-30430-A1supersedes 62211-30450-A1i200411-200504
SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),IVORY,TRIM0#
main62211-30430-B4supersedes 62211-30450-B1i200411-200504
SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),LT.GRAY,TRIM1#
main62211-30460-A0supersedes 62211-30450-A1i200505-200507
SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),IVORY,TRIM0#
main62211-30460-B0supersedes 62211-30450-B1i200505-200507
SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),LT.GRAY,TRIM1#
main62211-30461-A0supersedes 62211-30450-A1i200509-200604
SRS AIR BAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD),IVORY,TRIM0#
main62211-30461-B0supersedes 62211-30450-B1i200508-200604
SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),LT.GRAY,TRIM1#
main62211-30461-B1supersedes 62211-30450-B1i200509-200604
SRS AIR BAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD),LT.GRAY,TRIM1#
main62211-30490-A2supersedes 62211-30450-A1i200605-200802
SRS AIR BAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD),IVORY,TRIM0#
main62211-30490-B2supersedes 62211-30450-B1i200605-200802
SRS AIR BAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD),GRAY,TRIM1#
62212GARNISH, FRONT PILLAR, LH
main62212-30440-A1supersedes 62212-30460-A1i200411-200504
SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),IVORY,TRIM0#
main62212-30440-B4supersedes 62212-30460-B1i200411-200504
SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),LT.GRAY,TRIM1#
main62212-30470-A0supersedes 62212-30460-A1i200505-200507
SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),IVORY,TRIM0#
main62212-30470-B0supersedes 62212-30460-B1i200505-200507
SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),LT.GRAY,TRIM1#
main62212-30471-A0supersedes 62212-30460-A1i200509-200604
SRS AIR BAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD),IVORY,TRIM0#
main62212-30471-B0supersedes 62212-30460-B1i200508-200604
SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),LT.GRAY,TRIM1#
main62212-30471-B1supersedes 62212-30460-B1i200509-200604
SRS AIR BAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD),LT.GRAY,TRIM1#
main62212-30500-A2supersedes 62212-30460-A1i200605-200802
SRS AIR BAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD),IVORY,TRIM0#
main62212-30500-B2supersedes 62212-30460-B1i200605-200802
SRS AIR BAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD),GRAY,TRIM1#
62313DTRIM, FRONT DOOR OPENING, RH
main62313-30250i200411-200509
sub62313-30260
62314DTRIM, FRONT DOOR OPENING, LH
main62314-30170i200411-200509
sub62314-30180
62315BCOVER, FRONT DOOR OPENING TRIM, RH
main62315-30090-A0i200509-200802
IVORY,TRIM0#
main62315-30090-B0i200411-200509
GRAY,TRIM1#
main62315-30090-B1i200509-200802
GRAY,TRIM1#
62316BCOVER, FRONT DOOR OPENING TRIM, LH
main62316-30080-A0i200411-200509
NEW IVORY,TRIM0#
main62316-30080-B0i200411-200509
GRAY,TRIM1#
main62316-30080-B1i200509-200802
GRAY,TRIM1#
62333ATRIM, REAR DOOR OPENING, RH
main62333-30200i200411-200509
sub62333-30210
62334ATRIM, REAR DOOR OPENING, LH
main62334-30140i200411-200509
sub62334-30150
62403AGARNISH SUB-ASSY, ROOF SIDE RAIL, RH
main62450-30050-A1i200411-200509
IVORY,TRIM0#
main62450-30050-B1i200411-200509
LT.GRAY,TRIM1#
main62450-30050-B2i200509-200604
LT.GRAY,TRIM1#
main62450-30080-A1i200605-200802
IVORY,TRIM0#
main62450-30080-B0i200605-200802
GRAY,TRIM1#
62404AGARNISH SUB-ASSY, ROOF SIDE RAIL, LH
main62460-30100-A1i200509-200604
IVORY,TRIM0#
main62460-30100-B1i200411-200509
LT.GRAY,TRIM1#
main62460-30100-B2i200509-200604
LT.GRAY,TRIM1#
main62460-30130-A1i200605-200802
IVORY,TRIM0#
main62460-30130-B0i200605-200802
GRAY,TRIM1#
62411GARNISH, CENTER PILLAR, RH
main62411-30400-A1i200411-200604
IVORY,TRIM0#
main62411-30400-B4i200411-200604
LT.GRAY,TRIM1#
main62411-30420-A2i200509-200604
IVORY,TRIM0#
main62411-30420-B4i200509-200604
GRAY,TRIM1#
62412GARNISH, CENTER PILLAR, LH
main62412-30400-A1i200411-200604
IVORY,TRIM0#
main62412-30400-B4i200411-200604
LT.GRAY,TRIM1#
main62412-30400-B5i200509-200604
LT.GRAY,TRIM1#
main62412-30420-A2i200605-200802
IVORY,TRIM0#
main62412-30420-B4i200605-200802
GRAY,TRIM1#
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-30200-A0i200411-200509
IVORY,TRIM0#
main62413-30200-B0i200411-200509
GRAY,TRIM1#
main62413-30200-B1i200509-200802
GRAY,TRIM1#
62413CCLIP (FOR CENTER LOWER GARNISH)
main90467-10161×10i200509-200802
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-30130-A0i200411-200509
IVORY,TRIM0#
main62414-30130-B0i200411-200509
GRAY,TRIM1#
main62414-30130-B1i200509-200802
GRAY,TRIM1#
62430GARNISH ASSY, ROOF SIDE RAIL, RH
main62430-30170-A1i200411-200509
IVORY,TRIM0#
main62430-30170-B2i200411-200509
LT.GRAY,TRIM1#
main62430-30170-B4i200509-200604
LT.GRAY,TRIM1#
main62430-30190-A1i200605-200802
IVORY,TRIM0#
main62430-30190-B0i200605-200802
GRAY,TRIM1#
62440GARNISH ASSY, ROOF SIDE RAIL, LH
main62440-30170-A1i200509-200604
IVORY,TRIM0#
main62440-30170-B2i200411-200509
LT.GRAY,TRIM1#
main62440-30170-B4i200509-200604
LT.GRAY,TRIM1#
main62440-30190-A1i200605-200802
IVORY,TRIM0#
main62440-30190-B0i200605-200802
GRAY,TRIM1#
62461HCLIP (FOR ROOF SIDE INNER GARNISH)
main90467-09212×2i200509-200802
TYPE A
main90467-10188×8i200411-200509
TYPE B
62471AGARNISH, ROOF SIDE, INNER RH
main62471-30450-A1supersedes 62471-30460-A1i200411-200509
SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),IVORY,TRIM0#
main62471-30450-A2supersedes 62471-30460-A1i200509-200604
SRS AIR BAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD),IVORY,TRIM0#
main62471-30450-B2supersedes 62471-30460-B1i200411-200509
SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),LT.GRAY,TRIM1#
main62471-30450-B4supersedes 62471-30460-B1i200509-200604
SRS AIR BAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD),LT.GRAY,TRIM1#
main62471-30500-A1supersedes 62471-30460-A1i200605-200802
SRS AIR BAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD),IVORY,TRIM0#
main62471-30500-B1supersedes 62471-30460-B1i200605-200802
SRS AIR BAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD),GRAY,TRIM1#
62472AGARNISH, ROOF SIDE, INNER LH
main62472-30420-A1supersedes 62472-30430-A1i200411-200509
SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),IVORY,TRIM0#
main62472-30420-A2supersedes 62472-30430-A1i200509-200604
SRS AIR BAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD),IVORY,TRIM0#
main62472-30420-B2supersedes 62472-30430-B1i200411-200509
SRS AIR BAG-WITH(DRIVER+PASSENGER+KNEE+SIDE+CURTAIN),LT.GRAY,TRIM1#
main62472-30420-B4supersedes 62472-30430-B1i200509-200604
SRS AIR BAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD),LT.GRAY,TRIM1#
main62472-30470-A1supersedes 62472-30430-A1i200605-200802
SRS AIR BAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD),IVORY,TRIM0#
main62472-30470-B1supersedes 62472-30430-B1i200605-200802
SRS AIR BAG-WITH(DRIVER&PASSENGER&KNEE&SIDE&HEAD),GRAY,TRIM1#
62551FGARNISH, REAR SEAT SIDE, RH
main62551-30250-A0i200509-200802
IVORY,TRIM0#
main62551-30250-B0i200411-200509
GRAY,TRIM1#
main62551-30250-B1i200509-200802
GRAY,TRIM1#
62552FGARNISH, REAR SEAT SIDE, LH
main62552-30240-A0i200411-200509
NEW IVORY,TRIM0#
main62552-30240-B0i200411-200509
GRAY,TRIM1#
main62552-30240-B1i200509-200802
GRAY,TRIM1#
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
main62566-30010×2i200411-200509
62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
main62566-30010×14i200509-200802
62567FCLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
main62566-30010×6i200411-200509
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
main67911-30160i200411-200509
sub67911-30220
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
main67912-30170i200411-200509
sub67912-30230
67913PLATE, FRONT DOOR SCUFF, RH
main67913-30250-A0i200411-200509
NEW IVORY,TRIM0#
main67913-30250-B0i200411-200509
GRAY,TRIM1#
main67913-30250-B1i200509-200802
GRAY,TRIM1#
67914PLATE, FRONT DOOR SCUFF, LH
main67914-30250-A0i200411-200509
NEW IVORY,TRIM0#
main67914-30250-B0i200411-200509
GRAY,TRIM1#
main67914-30250-B1i200509-200802
GRAY,TRIM1#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
main67915-30130i200509-200802
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
main67916-30140i200411-200509
67917APLATE, REAR DOOR SCUFF, RH
main67917-30200-A0i200411-200509
NEW IVORY,TRIM0#
main67917-30200-B0i200411-200509
GRAY,TRIM1#
main67917-30200-B1i200509-200802
GRAY,TRIM1#
67918APLATE, REAR DOOR SCUFF, LH
main67918-30180-A0i200411-200509
NEW IVORY,TRIM0#
main67918-30180-B0i200411-200509
GRAY,TRIM1#
main67918-30180-B1i200509-200802
GRAY,TRIM1#
67921FRETAINER, FRONT DOOR SCUFF PLATE
main67921-30010×4i200411-200509
73135BCOVER, SHOULDER BELT ANCHOR, RH
main73023-30010-A2i200411-200509
IVORY,TRIM0#
main73023-30010-B2i200411-200509
LT.GRAY,TRIM1#
main73023-30010-B5i200509-200802
GRAY,TRIM1#
73136CCOVER, SHOULDER BELT ANCHOR, LH
main73024-30010-A2i200411-200509
IVORY,TRIM0#
main73024-30010-B2i200411-200509
LT.GRAY,TRIM1#
main73024-30010-B5i200509-200802
GRAY,TRIM1#
9016450045
main90164-50045
9046709212
main90467-09212
9046710161
main90467-10161
9095008004
main90950-08004

40 parts on this diagram · 2 diagrams in section
