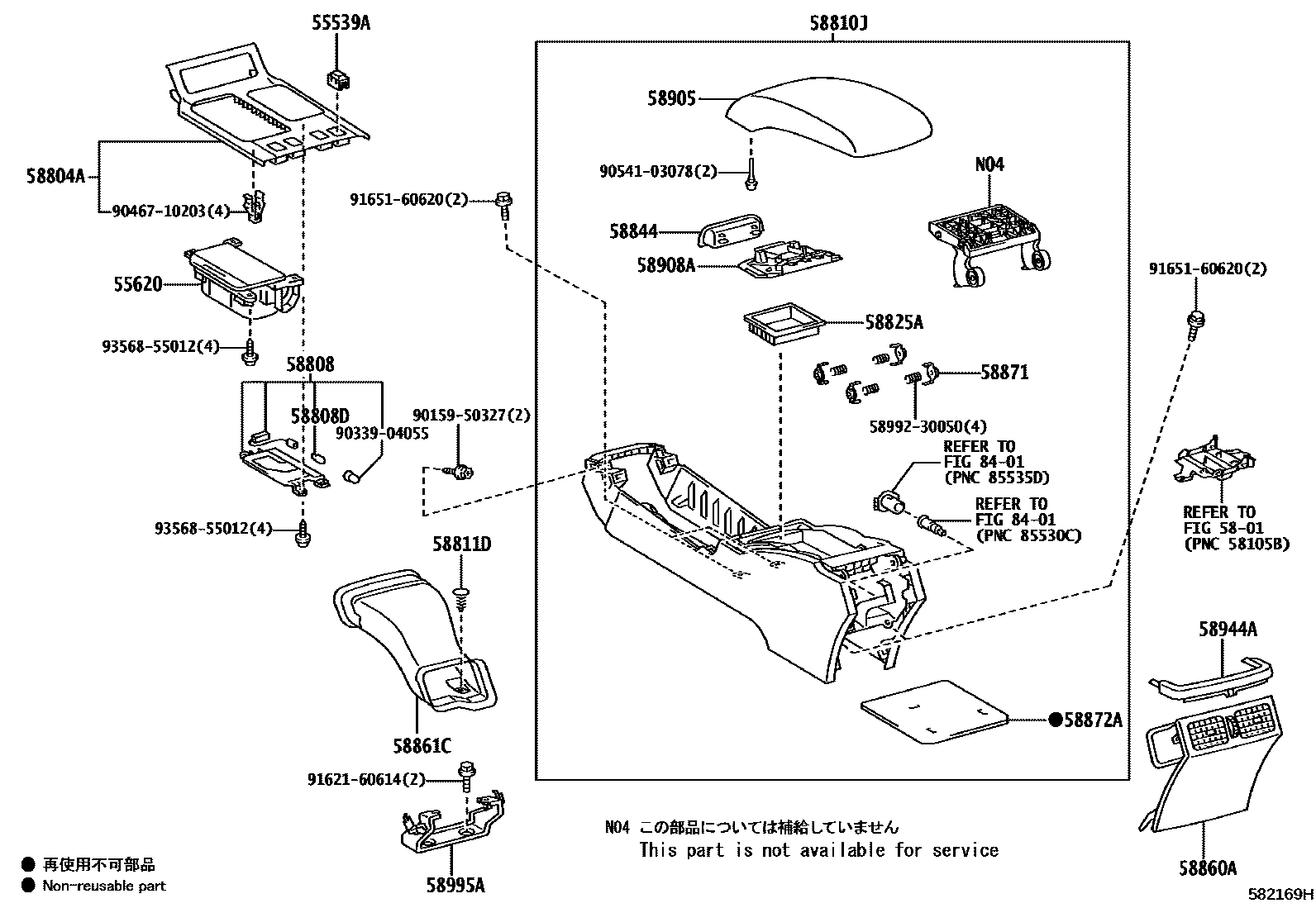

CONSOLE BOX & BRACKET
55539ACOVER, SPARE SWITCH HOLE
55620HOLDER ASSY, INSTRUMENT PANEL CUP
GRAY,TRIM1#
LT.BROWN,TRIM0#
5801
58804APANEL SUB-ASSY, CONSOLE, UPPER
GRAY,TRIM1#
LT.BROWN,TRIM0#
58808COVER SUB-ASSY, SHIFTING HOLE
GRAY,TRIM1#
LT.BROWN,TRIM0#
58808DSHIFT INDICATOR LAMP BULB
58810JBOX ASSY, CONSOLE
IVORY,TRIM0#
GRAY,TRIM1#
58811DCLIP(FOR CONSOLE BOX)
58825APOCKET, CONSOLE BOX
58844BEZEL, CONSOLE BOX
IVORY,TRIM0#
GRAY,TRIM1#
GRAY,TRIM1#
58860AREGISTER ASSY, CONSOLE BOX
58861CDUCT, CONSOLE BOX, NO.1
58871CUSHION, CONSOLE BOX
58872ACUSHION, CONSOLE BOX, NO.2
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
IVORY,TRIM0#
GRAY,TRIM1#
GRAY,TRIM1#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
IVORY,TRIM0#
GRAY,TRIM1#
GRAY,TRIM1#
58944ACOVER, CONSOLE, REAR
GRAY,TRIM1#
LT.BROWN,TRIM0#
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
8401
5899230050BRACKET, CONSOLE BOX MOUNTING, UPPER LH
main58992-30050
9015950327
main90159-50327
9033904055
main90339-04055
9046710203
main90467-10203
9054103078
main90541-03078
9162160614
main91621-60614
9165160620
main91651-60620
9356855012
main93568-55012
27 parts on this diagram · 1 diagram in section
