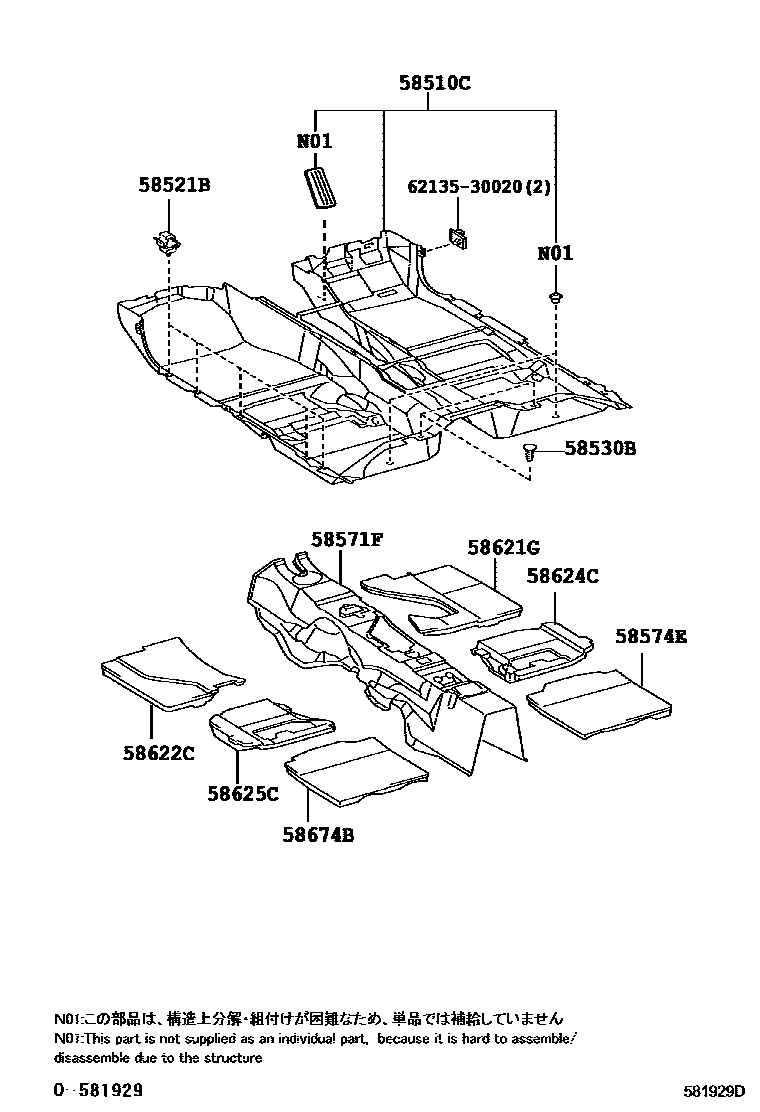

MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-3K620-A0iGRS182200411-200509

IVORY,TRIM0#

main58510-3K620-A1iGRS182200509-200802

IVORY,TRIM0#

main58510-3K620-B0iGRS182200411-200509

GRAY,TRIM1#

main58510-3K620-B2iGRS182200509-200802

GRAY,TRIM1#

58521BHOOK, FLOOR CARPET

main58521-30140×12iGRS182200509-200802

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-B8×2iGRS182200411-200509

LT.GRAY

58571FPAD, FRONT FLOOR, FRONT

main58571-30010iGRS182200411-200509

58574EPAD, REAR FLOOR SILENCER, NO.1

main58673-30020iGRS182200509-200802

58621GPAD, FRONT FLOOR SILENCER, RH

main58621-30150iGRS182200411-200509

58622CPAD, FRONT FLOOR SILENCER, LH

main58622-30160iGRS182200411-200509

58624CPAD, CENTER FLOOR SILENCER, RH

main58624-30130iGRS182200411-200509

58625CPAD, CENTER FLOOR SILENCER, LH

main58625-30080iGRS182200411-200509

58674BPAD, REAR FLOOR SILENCER, NO.2

main58674-30020iGRS182200411-200509

6213530020FRAME, REAR SIDE WINDOW

main62135-30020

11 parts on this diagram · 1 diagram in section
