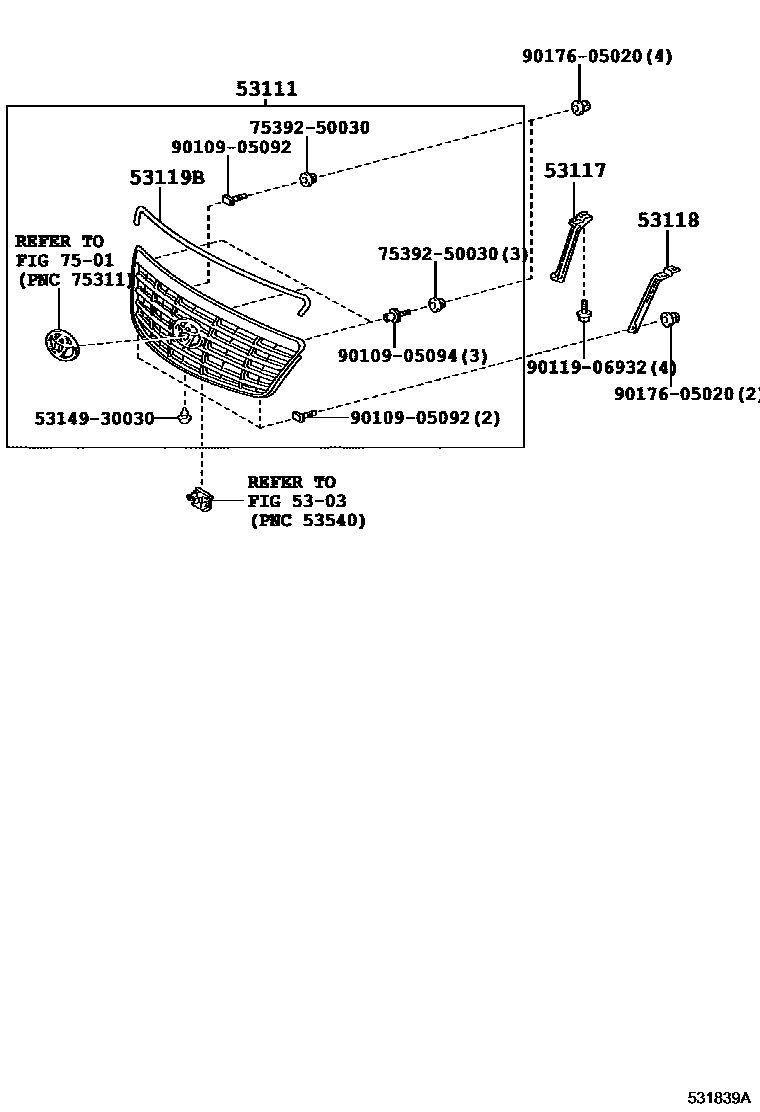

RADIATOR GRILLE

5303HOOD LOCK & HINGE

→ Go to FIG 53-03

53111GRILLE, RADIATOR

main53100-30230iGRS182200411-200509

PLATED

53117BRACKET, RADIATOR GRILLE SUPPORT, RH

main53117-30040iGRS182200411-200509

53118BRACKET, RADIATOR GRILLE SUPPORT, LH

main53118-30030iGRS182200411-200509

53119BPROTECTOR, RADIATOR GRILLE

main53119-30190iGRS182200411-200509

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

5314930030SHIM,RADIATOR COVER CUSHION

main53149-30030

7539250030RETAINER, OUTSIDE MOULDING

main75392-50030

9010905092

main90109-05092

9010905094

main90109-05094

9011906932

main90119-06932

9017605020

main90176-05020

12 parts on this diagram · 1 diagram in section
