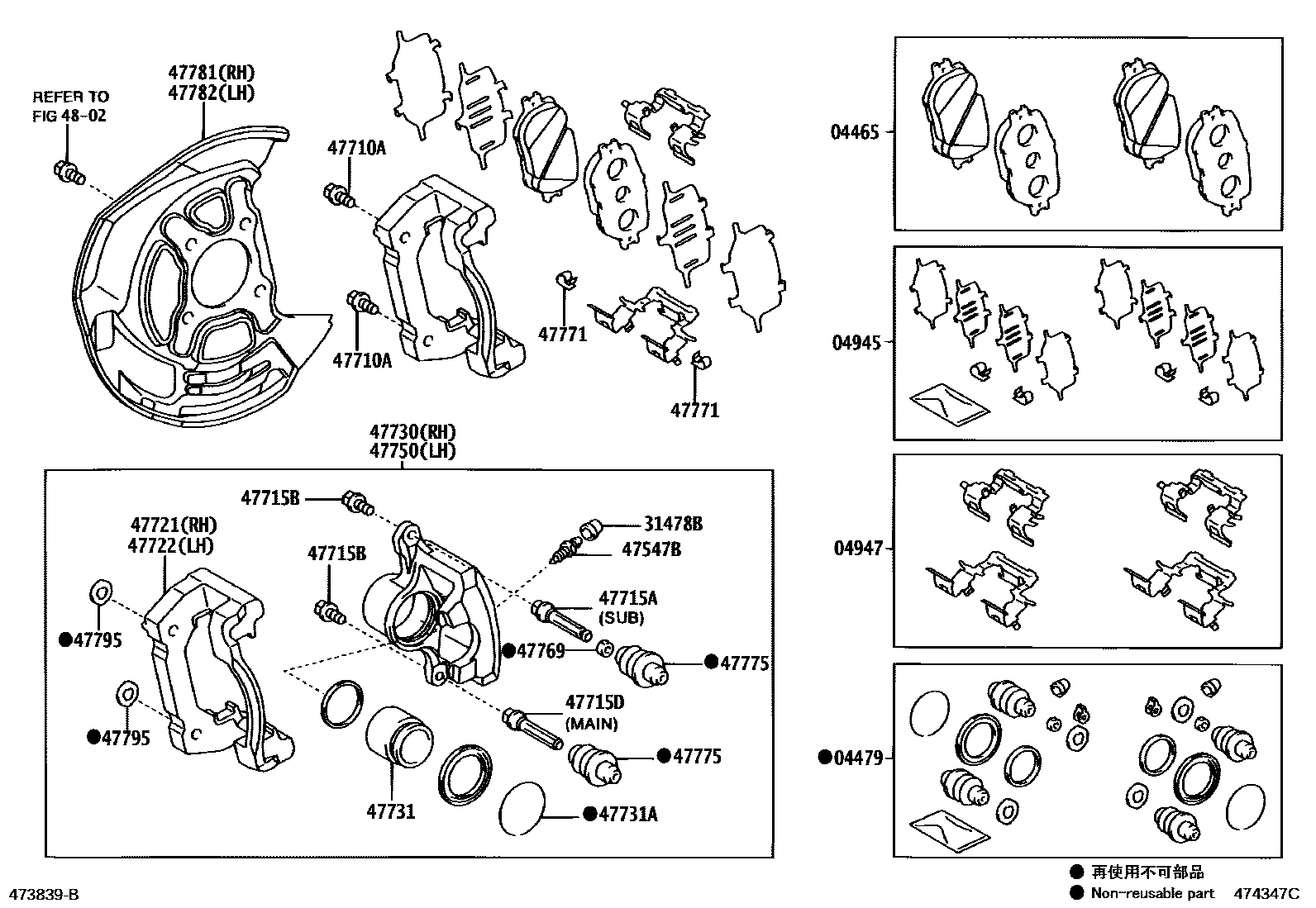

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-30330iGRS182200411-200802

MARK NBK D6893H

sub04465-30480

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-30110iGRS182200411-200605

sub04478-30260

main04478-30260iGRS182200605-200802

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-30170iGRS182200411-200802

04947FITTING KIT, DISC BRAKE, FRONT

main04947-30140iGRS182200411-200802

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iGRS182200411-200802

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030iGRS182200411-200802

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main91552-K1240iGRS182200411-200802

*12-1.25PX40-30

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22070iGRS182200411-200802

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iGRS182200411-200802

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-33050iGRS182200411-200802

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-30520iGRS182200411-200802

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-30520iGRS182200411-200802

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-30520iGRS182200411-200802

47731PISTON, FRONT DISC BRAKE

main47731-33070iGRS182200411-200802

sub47731-30570

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-86005iGRS182200411-200802

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-30520iGRS182200411-200802

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iGRS182200411-200802

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-30090iGRS182200411-200802

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30070iGRS182200411-200605

sub47775-50010

main47775-50010iGRS182200605-200802

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-30220iGRS182200411-200802

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-30220iGRS182200411-200802

47795PLATE, FRONT DISC BRAKE CALIPER, NO.1

main47795-30520iGRS182200411-200802

4802

23 parts on this diagram · 1 diagram in section
