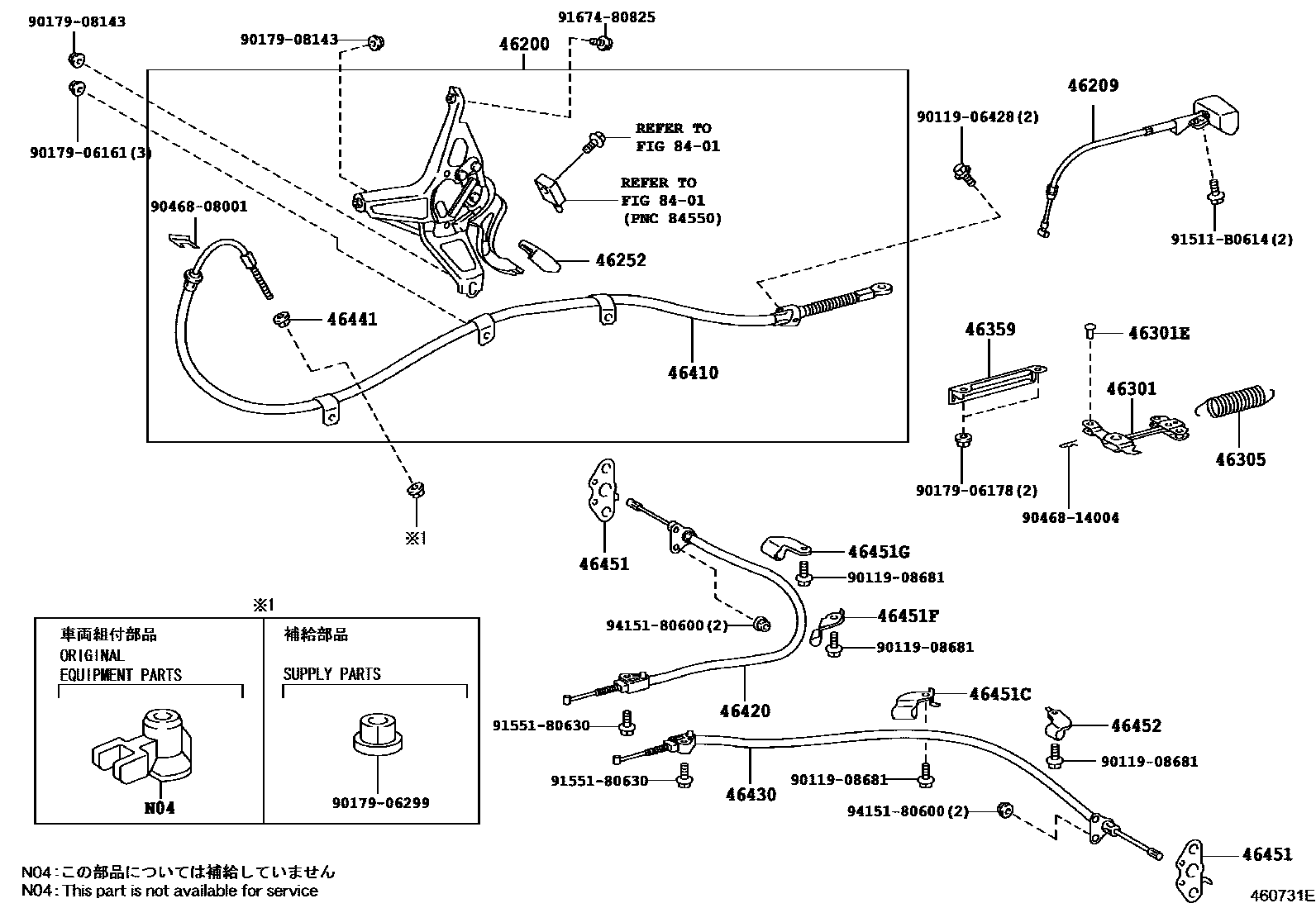

PARKING BRAKE & CABLE

0001 1 0002 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-30391iGRS182200411-200509

46209CABLE SUB-ASSY, PARKING BRAKE RELEASE

main46209-30200-A0iGRS182200509-200802

IVORY,TRIM0#

main46209-30200-B0iGRS182200411-200509

GRAY,TRIM1#

main46209-30200-B1iGRS182200509-200802

GRAY,TRIM1#

46252PAD, PARKING PEDAL

main46252-30010iGRS182200411-200509

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-30270iGRS182200411-200509

46301EPIN, W/HOLE(FOR INTERMEDIATE LEVER)

main90240-08059iGRS182200411-200509

46305SPRING, PARKING BRAKE RETURN W/DAMPER

main46305-30030iGRS182200411-200509

46359GUIDE, PARKING BRAKE INTERMEDIATE LEVER

main46359-30160iGRS182200411-200509

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-30741iGRS182200509-200802

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-30550iGRS182200411-200509

main46420-30600iGRS182200801-200802

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-30150iGRS182200411-200509

main46430-30180iGRS182200801-200802

46441NUT, WIRE ADJUSTING, NO.1

main46441-51010iGRS182200411-200509

46451BRACKET, CABLE SUPPORT

main46451-50050×2iGRS182200411-200509

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-30180iGRS182200411-200509

46451FBRACKET, CABLE SUPPORT

main46451-30170iGRS182200411-200509

46451GBRACKET, CABLE SUPPORT

main46451-30190iGRS182200411-200509

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46451-30200iGRS182200411-200509

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906428

main90119-06428

9011908681

main90119-08681

9017906161

main90179-06161

9017906178

main90179-06178

9017906299

main90179-06299

9017908143

main90179-08143

9046808001

main90468-08001

9046814004

main90468-14004

91511B0614

main91511-B0614

9155180630

main91551-80630

9167480825

main91674-80825

9415180600

main94151-80600

29 parts on this diagram · 2 diagrams in section
