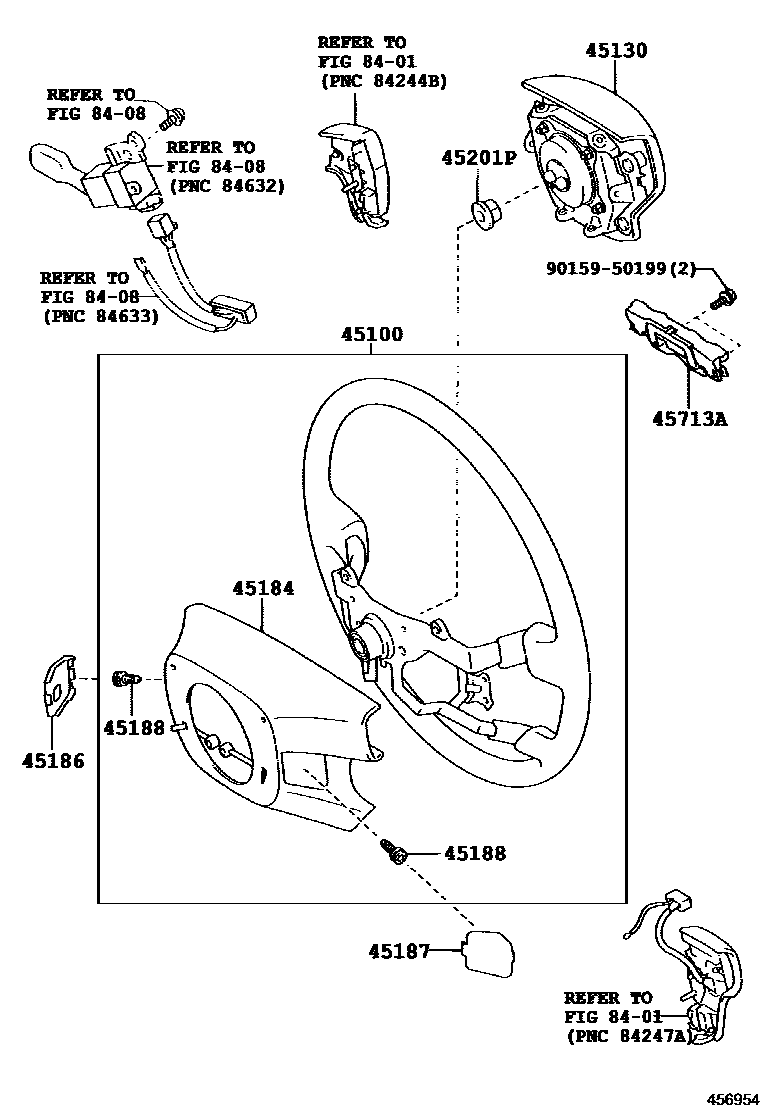

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-30600-C0iGRS182200411-200509

4-SPOKE,LEATHER,BLACK,TRIM1#

main45100-30600-E0iGRS182200509-200802

4-SPOKE,LEATHER,ORCHID BROWN,TRIM0#

45130BUTTON ASSY, HORN

main45130-30650-C0iGRS182200509-200802

BLACK,TRIM1#

main45130-30650-E0iGRS182200509-200802

ORCHID BROWN,TRIM0#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-30350-C0iGRS182200411-200509

BLACK,TRIM1#

main45184-30350-E0iGRS182200411-200509

ORCHID BROWN,TRIM0#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-30130-C0iGRS182200411-200509

BLACK,TRIM1#

main45186-30130-E0iGRS182200411-200509

ORCHID BROWN,TRIM0#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-30080-C0iGRS182200411-200509

BLACK,TRIM1#

main45187-30080-E0iGRS182200411-200509

ORCHID BROWN,TRIM0#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2iGRS182200509-200802

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071iGRS182200411-200509

45713ADAMPER, STEERING SHAKE

main45713-30150iGRS182200411-200509

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9015950199

main90159-50199

11 parts on this diagram · 1 diagram in section
