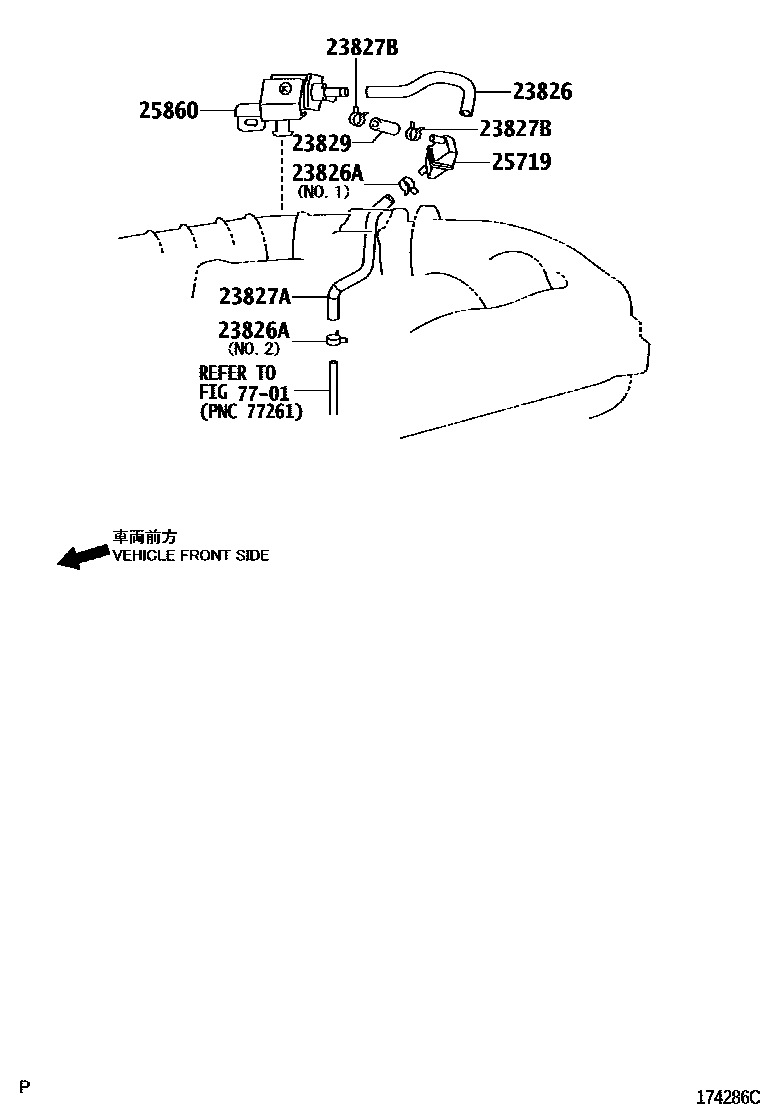

VACUUM PIPING

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-31050i3GRFE..GRS182200411-200509

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96132-41500i3GRFE..GRS182200411-200509

NO.2

main96132-51300i3GRFE..GRS182200411-200509

NO.1

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-31060i3GRFE..GRS182200411-200509

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96132-51300×2i3GRFE..GRS182200411-200509

23829HOSE, FUEL VAPOR FEED, NO.3

main23829-31010i3GRFE..GRS182200411-200509

25719TANK, VACUUM SURGE

main25719-31010i3GRFE..GRS182200411-200509

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-31040i3GRFE..GRS182200411-200509

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8 parts on this diagram · 1 diagram in section
