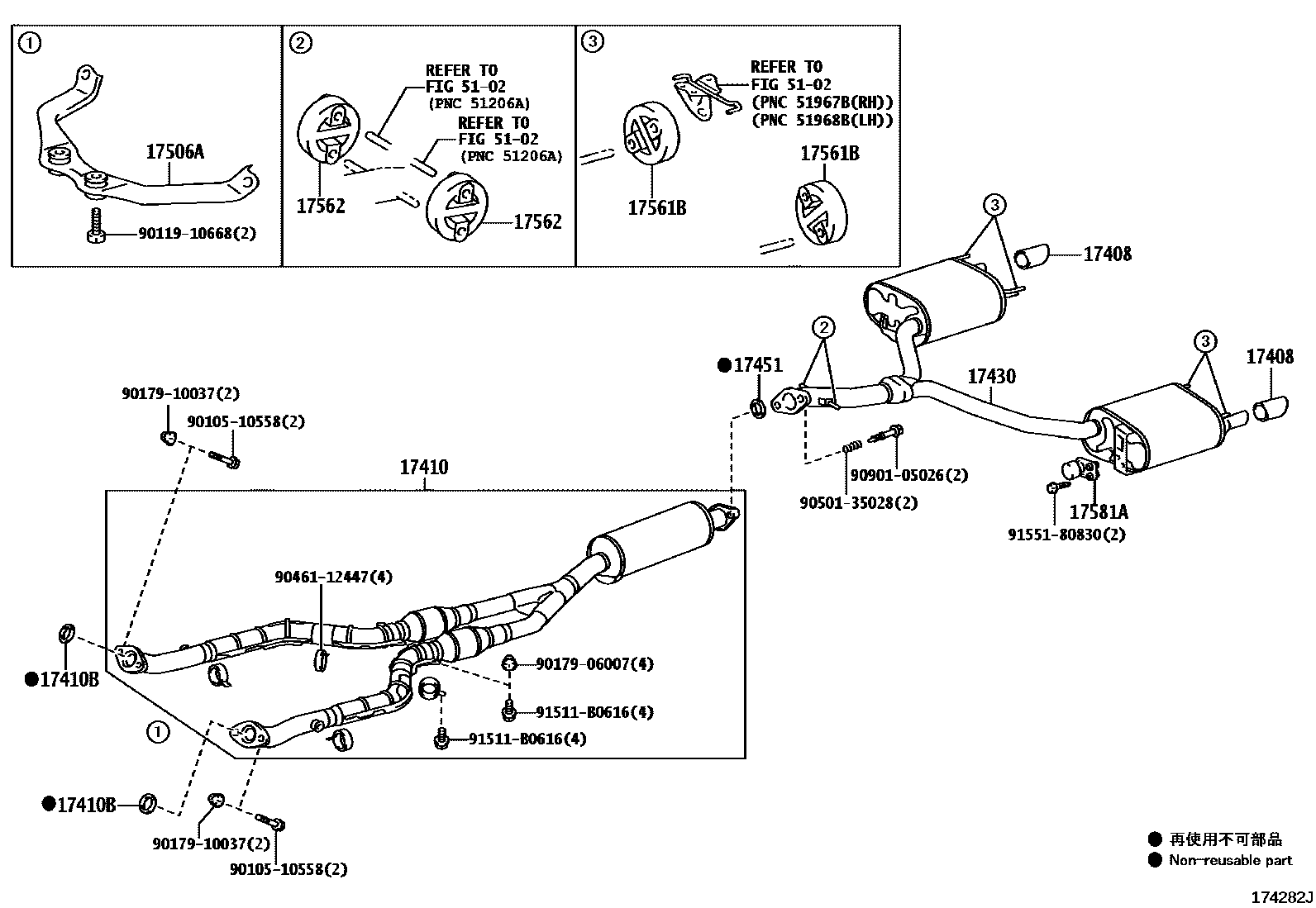

EXHAUST PIPE

17408BAFFLE SUB ASSY, EXHAUST TAILPIPE

main17408-74080×2i3GRFE..GRS182200411-200509

17410PIPE ASSY, EXHAUST, FRONT

main17410-31460i3GRFE..GRS182200411-200509

*114=TOYOTA/GE5/Y

17410BGASKET, EXHAUST PIPE

main90917-06078×2i3GRFE..GRS182200411-200509

17430PIPE ASSY, EXHAUST, TAIL

main17430-31430i3GRFE..GRS182200411-200509

17451GASKET, EXHAUST PIPE

main17451-31010i3GRFE..GRS182200411-200509

sub17451-31011

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-31030i3GRFE..GRS182200411-200509

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-11160×4i3GRFE..GRS182200411-200509

main17565-22030×4i3GRFE..GRS182200710-200802

17562SUPPORT, EXHAUST PIPE, NO.2

main17565-22040×2i3GRFE..GRS182200710-200802

main17565-46040×2i3GRFE..GRS182200509-200709

17581ADAMPER, EXHAUST PIPE

main17581-46140i3GRFE..GRS182200411-200509

5102

9010510558

main90105-10558

9011910668

main90119-10668

9017906007

main90179-06007

9017910037

main90179-10037

9046112447

main90461-12447

9050135028

main90501-35028

9090105026

main90901-05026

91511B0616

main91511-B0616

9155180830

main91551-80830

19 parts on this diagram · 1 diagram in section
