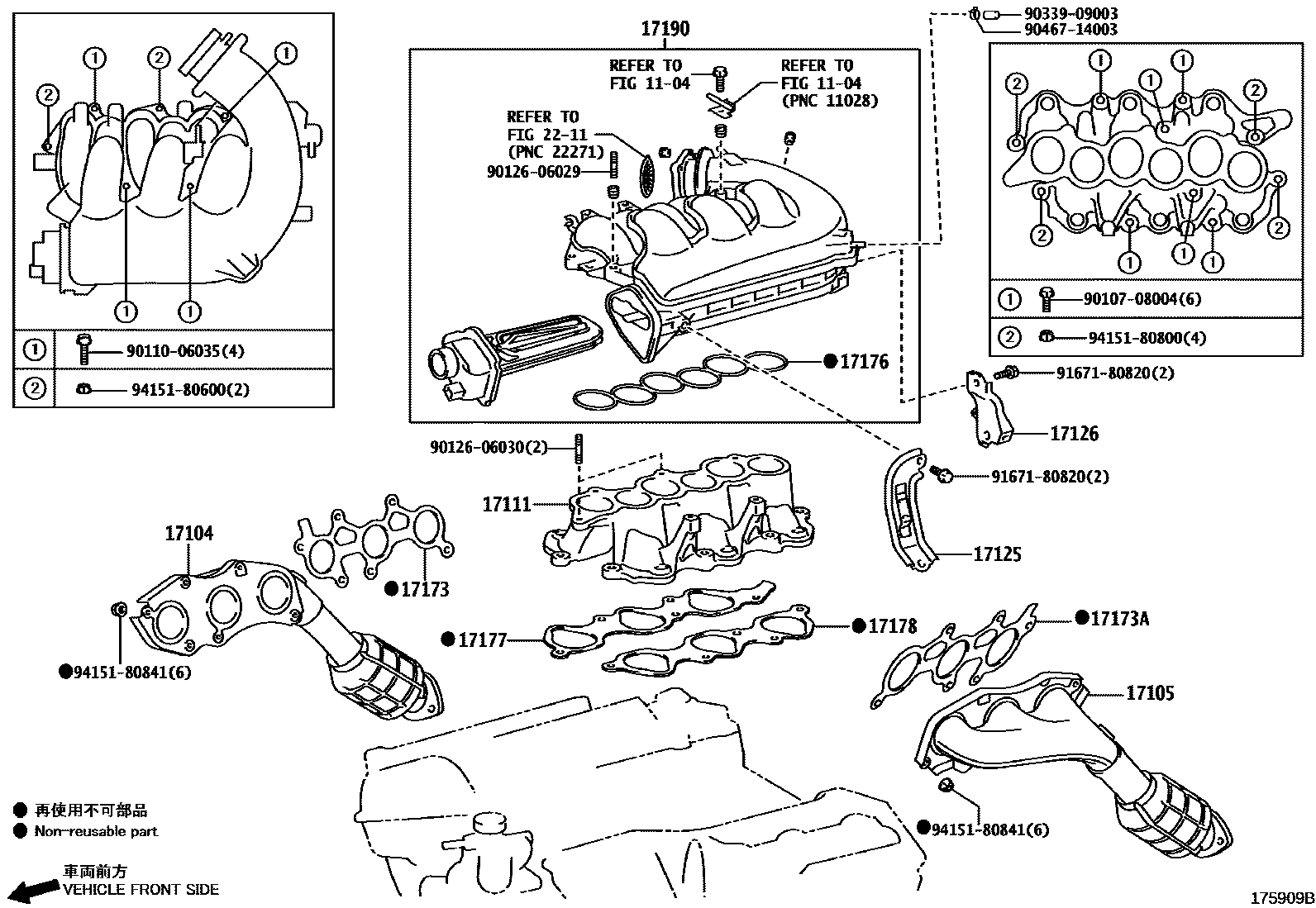

MANIFOLD

1104CYLINDER HEAD

→ Go to FIG 11-04

17104MANIFOLD SUB-ASSY, EXHAUST, RH

main17140-31080i3GRFE..GRS182200411-200509

main17140-31120i3GRFE..GRS182200509-200802

*114=TOYOTA/R31120/Y

17105MANIFOLD SUB-ASSY, EXHAUST, LH

main17150-31080i3GRFE..GRS182200411-200509

main17150-31120i3GRFE..GRS182200509-200802

*114=TOYOTA/L31120/Y

17111MANIFOLD, INTAKE

main17111-31120i3GRFE..GRS182200411-200802

17125STAY, SURGE TANK, NO.1

main17125-31030i3GRFE..GRS182200411-200802

17126STAY, SURGE TANK, NO.2

main17126-31020i3GRFE..GRS182200411-200802

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-31020i3GRFE..GRS182200411-200802

17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH

main17173-31020i3GRFE..GRS182200411-200802

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

main17176-31030i3GRFE..GRS182200411-200802

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-31030i3GRFE..GRS182200411-200802

17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2

main17178-31020i3GRFE..GRS182200411-200802

17190TANK ASSY, INTAKE AIR SURGE

main17190-31030i3GRFE..GRS182200411-200802

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

9010708004

main90107-08004

9011006035

main90110-06035

9012606029

main90126-06029

9012606030

main90126-06030

9033909003

main90339-09003

9046714003

main90467-14003

9167180820

main91671-80820

9415180600

main94151-80600

9415180800

main94151-80800

9415180841

main94151-80841

23 parts on this diagram · 1 diagram in section
