WATER PUMP

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

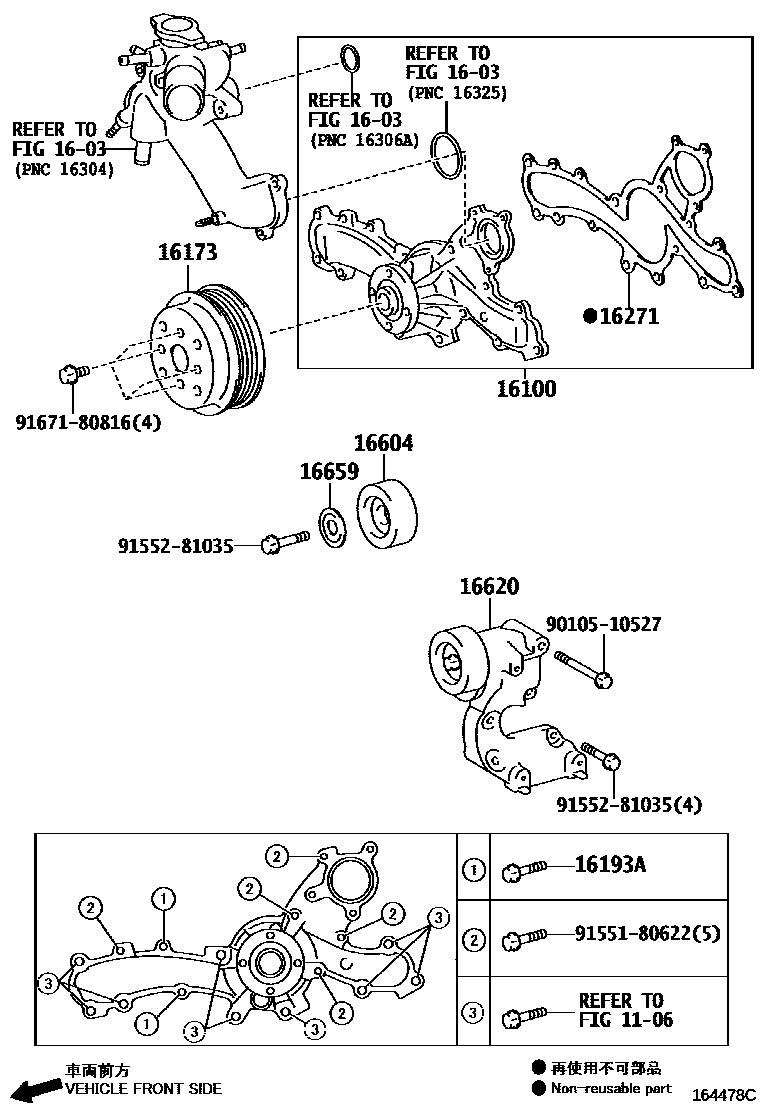

16100PUMP ASSY, ENGINE WATER

main16100-39435i3GRFE..GRS182200411-200802

16173PULLEY, WATER PUMP

main16173-31010i3GRFE..GRS182200411-200802

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080i3GRFE..GRS182200411-200802

16271GASKET, WATER PUMP

main16271-31020i3GRFE..GRS182200411-200802

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-31010i3GRFE..GRS182200411-200802

16620TENSIONER ASSY, V-RIBBED BELT

main16620-31020i3GRFE..GRS182200411-200412

main16620-31021i3GRFE..GRS182200412-200802

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-31011i3GRFE..GRS182200411-200802

9010510527

main90105-10527

9155180622

main91551-80622

9155281035

main91552-81035

9167180816

main91671-80816

13 parts on this diagram · 1 diagram in section
