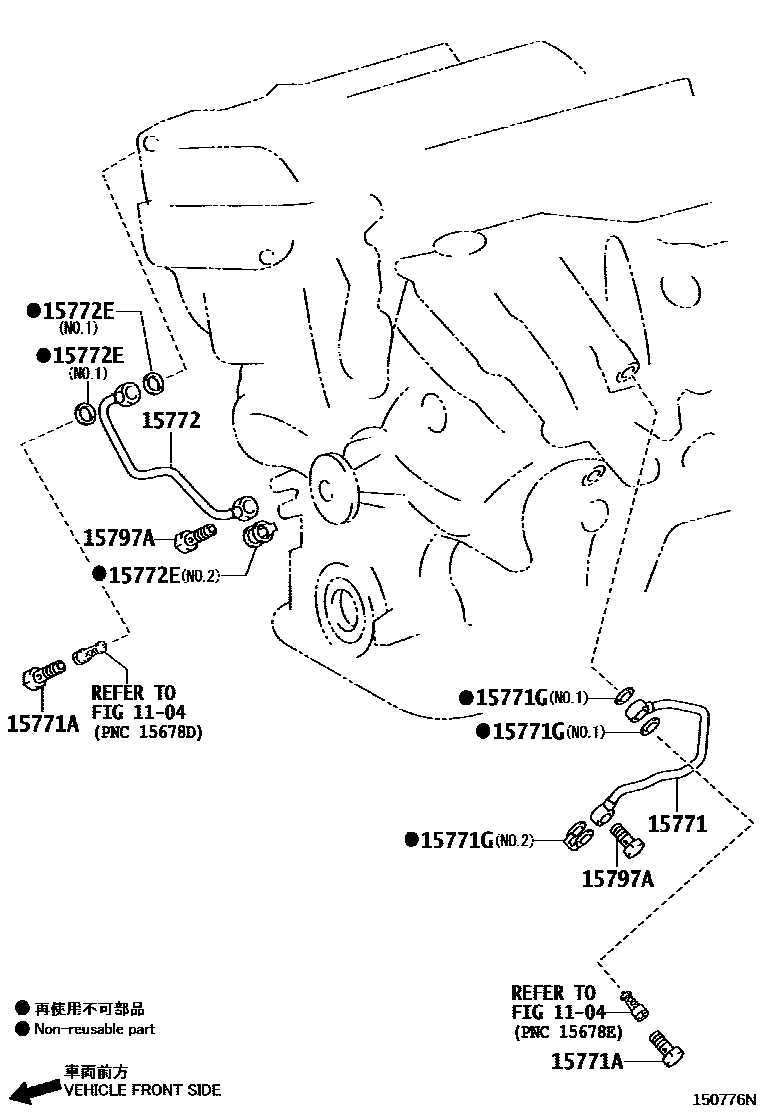

ENGINE OIL COOLER

1104

15771PIPE, OIL, NO.1

main15771-31010i3GRFE..GRS182200411-200509

15771AUNION(FOR OIL PIPE)

main90401-16035×2i3GRFE..GRS182200509-200601

main90401-16043×2i3GRFE..GRS182200601-200802

15771GGASKET

main90430-16012×2i3GRFE..GRS182200411-200509

NO.1

main90430-16016i3GRFE..GRS182200509-200802

NO.2

15772PIPE, OIL, NO.2

main15772-31010i3GRFE..GRS182200509-200802

15772EGASKET(FOR OIL PIPE)

main90430-16012×2i3GRFE..GRS182200509-200802

NO.1

main90430-16016i3GRFE..GRS182200411-200509

NO.2

15797ABOLT, OIL CHECK VALVE

main15797-31010×2i3GRFE..GRS182200411-200509

7 parts on this diagram · 1 diagram in section
