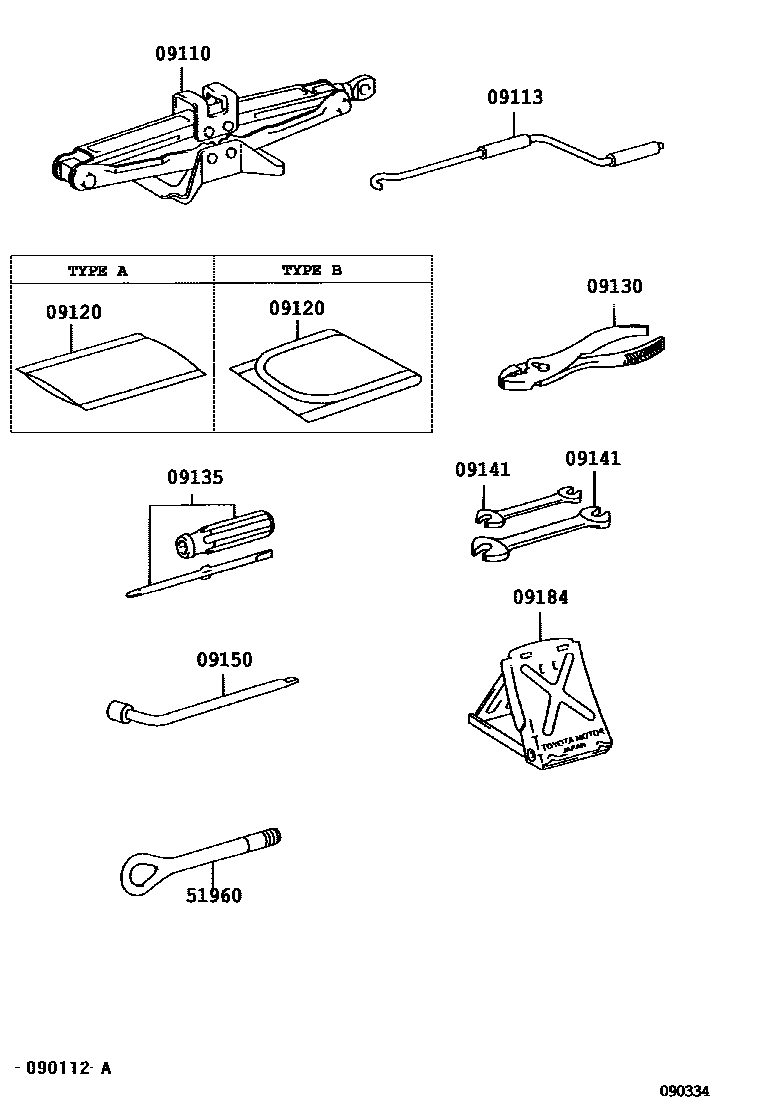

STANDARD TOOL

09110JACK ASSY

main09111-50051iGRS182200411-200802

sub09111-76011

09113HANDLE, JACK

main09113-22020iGRS182200411-200802

09120BAG, TOOL

main09120-48040iGRS182200411-200802

TYPE B:REFER ILLUST.

09130PLIERS

main99913-11500iGRS182200411-200802

09135DRIVER, SCREW

main99915-10700iGRS182200509-200802

09141SPANNER

main99914-10810iGRS182200509-200802

8 X 10

main99914-11214iGRS182200509-200802

12 X 14

09150WRENCH, HUB NUT BOX

main09150-40010iGRS182200411-200802

09184STOPPER, WHEEL

main09184-00010

51960HOOK ASSY, FRONT

main51961-48030iGRS182200411-200509

sub51961-44010

main51961-50030iGRS182200509-200802

9 parts on this diagram · 1 diagram in section
