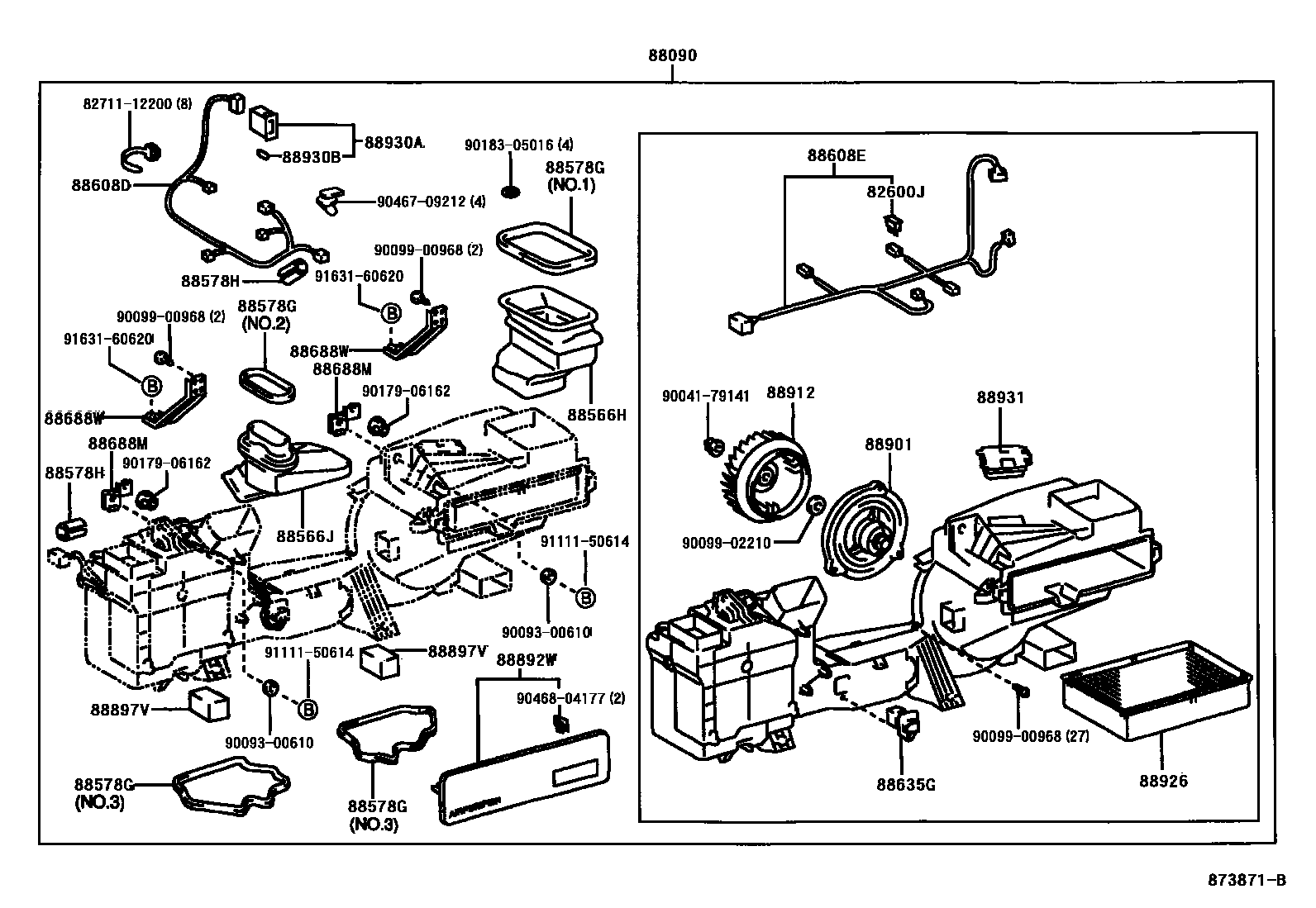

AIR PURIFIER OR ION GENERATOR

82600JFUSE, AIR PURIFIER

main88899-26060iJZS175199909-200108

3A

88090AIR PURIFIER & ACCESSORY ASSY

main88090-30040iJZS175199909-200108

88566HDUCT, AIR, NO.1

main87211-30300iJZS175199909-200108

88566JDUCT, AIR, NO.2

main87211-30330iJZS175199909-200108

88578GPACKING, AIR PURIFIER, NO.1

main88578-30800iJZS175200108-200312

NO.1

main88578-30810iJZS175199909-200108

NO.2

main88578-30820×2iJZS175199909-200108

NO.3

88578HPACKING, AIR PURIFIER, NO.2

main88578-30370×4iJZS175199909-200108

88608DHARNESS SUB-ASSY, WIRING AIR INDICATER, NO.2

main88608-3A080iJZS175199909-200108

88608EHARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.3

main88608-3A090iJZS175199909-200108

88635GRESISTOR, AIR PURIFIER BLOWER

main88635-30450iJZS175200108-200312

88688MBRACKET, AIR PURIFIER, NO.2

main88688-30230×2iJZS175199909-200108

88688WBRACKET, AIR PURIFIER, NO.1

main88688-30240×2iJZS175199909-200108

88892WCOVER, AIR PURIFIER

main88891-30690-C0iJZS175199909-200108

BLACK,TRIM0#,1#

88897VCUSHION, AIR PURIFIER

main88897-30780×2iJZS175199909-200108

88901MOTOR SUB-ASSY, AIR PURIFIER

main87104-30520iJZS175199909-200108

88912FAN, AIR PURIFIER

main87134-30090iJZS175199909-200108

88926FILTER, AIR PURIFIER

main88508-30110iJZS175199909-200108

88930ASWITCH ASSY, AIR PURIFIER

main88930-33050iJZS175199909-200108

88930BBULB, AIR PURIFIER SWITCH

main90010-03005iJZS175199909-200108

14V 1.8W

88931SENSOR, SMOKE

main88931-50030iJZS175199909-200108

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9004179141

main90041-79141

9009300610

main90093-00610

9009900968

main90099-00968

9009902210

main90099-02210

9017906162

main90179-06162

9018305016

main90183-05016

9046709212

main90467-09212

9046804177

main90468-04177

9111150614

main91111-50614

9163160620

main91631-60620

30 parts on this diagram · 1 diagram in section
