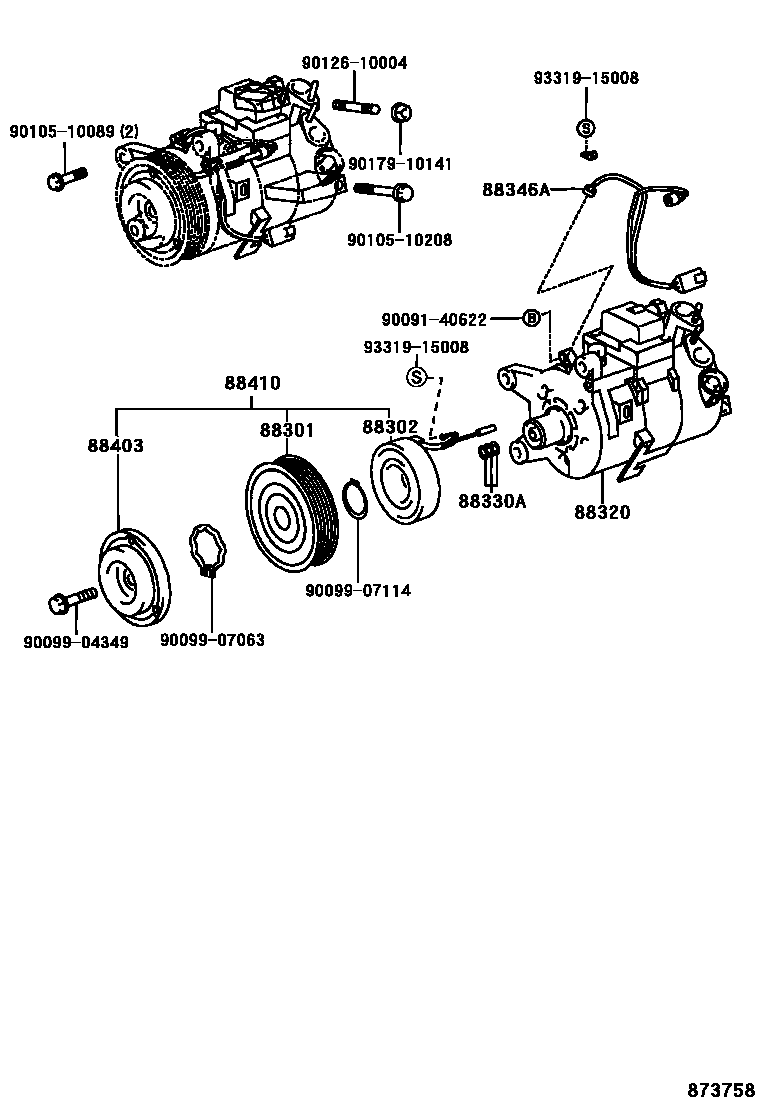

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-2A030iJZS175199909-200108

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-2A030iJZS175199909-200108

88320COMPRESSOR ASSY, COOLER

main88320-2A050iJZS175199909-200108

main88320-2A051iJZS175200108-200312

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iJZS175199909-200108

88346ASENSOR, COMPRESSOR PICK UP

main88336-2A010iJZS175200108-200312

main88346-2A010iJZS175199909-200108

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-3A100iJZS175199909-200108

88410CLUTCH ASSY, MAGNET

main88410-3A220iJZS175199909-200108

9009140622

main90091-40622

9009904349

main90099-04349

9009907063

main90099-07063

9009907114

main90099-07114

9010510089

main90105-10089

9010510208

main90105-10208

9012610004

main90126-10004

9017910141

main90179-10141

9331915008

main93319-15008

16 parts on this diagram · 2 diagrams in section
