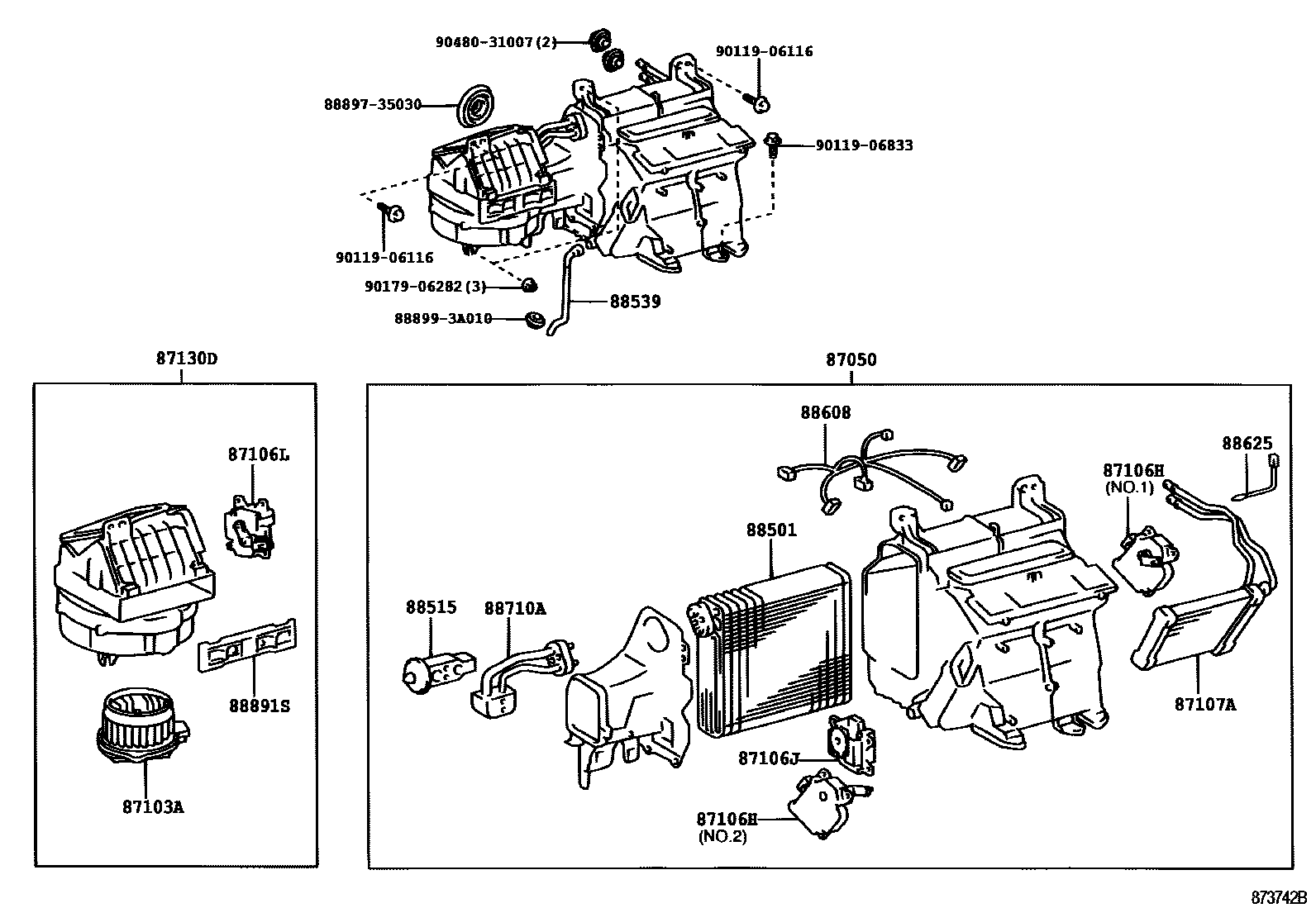

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT 0002 1FRONT 0003 1REAR 0004 1REAR--W(COOL BOX) 0005 1REAR 0006 1REAR--W(COOL BOX) 0007 1O-RING 0008 1O-RING

87050RADIATOR ASSY, AIR CONDITIONER

main87050-30050iJZS175199909-200108

87103AMOTOR SUB-ASSY, COOLING UNIT, W/FAN

main87103-30410iJZS175199909-200108

main87103-30440iJZS175200108-200312

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-30340iJZS175200108-200308

NO.1

main87106-30341iJZS175200308-200312

NO.1

main87106-30350iJZS175199909-200108

NO.2

main87106-30351iJZS175200308-200312

NO.2

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-30361iJZS175199909-200108

87106LSERVO SUB-ASSY, DAMPER

main87106-30380iJZS175199909-200108

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-30540iJZS175199909-200108

87130DBLOWER ASSY

main87130-30710iJZS175199909-200108

main87130-30760iJZS175200108-200312

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-3A020iJZS175199909-200108

main88501-3A050iJZS175200108-200312

88515VALVE, COOLER EXPANSION

main88515-30690iJZS175200108-200312

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-30870iJZS175200108-200312

main88539-51010iJZS175199909-200108

88608HARNESS SUB-ASSY, WIRING AIR CONDITIONER

main88608-3A060iJZS175199909-200108

main88608-3A061iJZS175200210-200312

88625THERMISTOR, COOLER, NO.1

main88625-3A120iJZS175200108-200210

88710ATUBE ASSY, AIR CONDITIONER

main88710-3A220iJZS175199909-200108

88891SCOVER, COOLER, NO.1

main88891-30680iJZS175199909-200108

8889735030VALVE, COOLER MAGNET

main88897-35030

888993A010COVER, EVAPORATOR

main88899-3A010

9011906116

main90119-06116

9011906833

main90119-06833

9017906282

main90179-06282

9048031007

main90480-31007

20 parts on this diagram · 8 diagrams in section
