WIRELESS DOOR LOCK

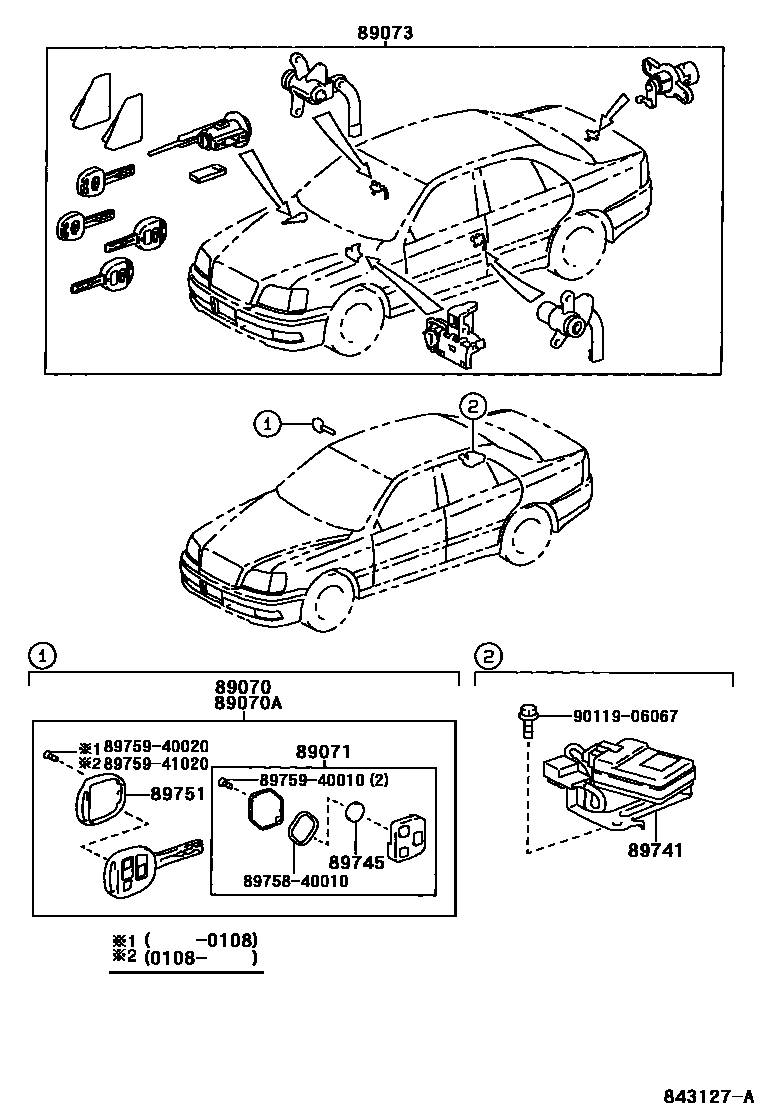

Parts diagram
89070TRANSMITTER ASSY, DOOR CONTROL
main89070-30150i199909-200108
W(ENGINE IMMOBILIZER SYSTEM)
main89070-30160i199909-200108
main89070-30170i199909-200108
SINGAPORE SPEC
main89070-30450i200108-200312
W(ENGINE IMMOBILIZER SYSTEM)
main89070-30460i200108-200312
SINGAPORE SPEC
main89070-30500i200108-200312
89070ATRANSMITTER, DOOR CONTROL (CUT KEY)
main89070-30200i199909-200108
W(ENGINE IMMOBILIZER SYSTEM)
main89070-30210i199909-200108
main89070-30220i199909-200108
SINGAPORE SPEC
main89070-30470i200108-200312
W(ENGINE IMMOBILIZER SYSTEM)
main89070-30480i200108-200312
SINGAPORE SPEC
main89070-30510i200108-200312
89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
main89071-30030×2i199909-200009
main89071-30031×2i200108-200312
main89071-30040×2i199909-200009
SINGAPORE SPEC
main89071-30041×2i200009-200108
SINGAPORE SPEC
main89071-53050×2i199909-200009
W(ENGINE IMMOBILIZER SYSTEM)
main89071-53051×2i200009-200108
W(ENGINE IMMOBILIZER SYSTEM)
89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
main69005-3A140i200108-200312
W(ENGINE IMMOBILIZER SYSTEM)
main69005-3A150i200108-200312
main89073-30270i199909-200108
W(ENGINE IMMOBILIZER SYSTEM)
main89073-30280i199909-200108
main89073-30290i199909-200108
SINGAPORE SPEC
89741RECEIVER, DOOR CONTROL
main89741-30280i200108-200312
main89741-30290i200108-200312
SINGAPORE SPEC
89745BATTERY, TRANSMITTER
main89745-40010×2i199909-200108
89751COVER, TRANSMITTER HOUSING
main89751-44030×2i200108-200312
SINGAPORE SPEC
main89751-44040×2i200108-200312
8975840010PACKING, DOOR CONTROL TRANSMITTER
main89758-40010
8975940010SCREW, DOOR CONTROL TRANSMITTER
main89759-40010
8975940020SCREW, DOOR CONTROL TRANSMITTER
main89759-40020
8975941020SCREW, DOOR CONTROL TRANSMITTER
main89759-41020
9011906067
main90119-06067

12 parts on this diagram · 2 diagrams in section
