WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1ENGINE 0004 1INSTRUMENT PANEL 0005 1INSTRUMENT PANEL 0006 1DOOR 0007 1ROOF & FLOOR 0008 1SEAT 0009 1CLAMP & BRACKET 0010 1CABLE BOND 0011 1CONNECTOR

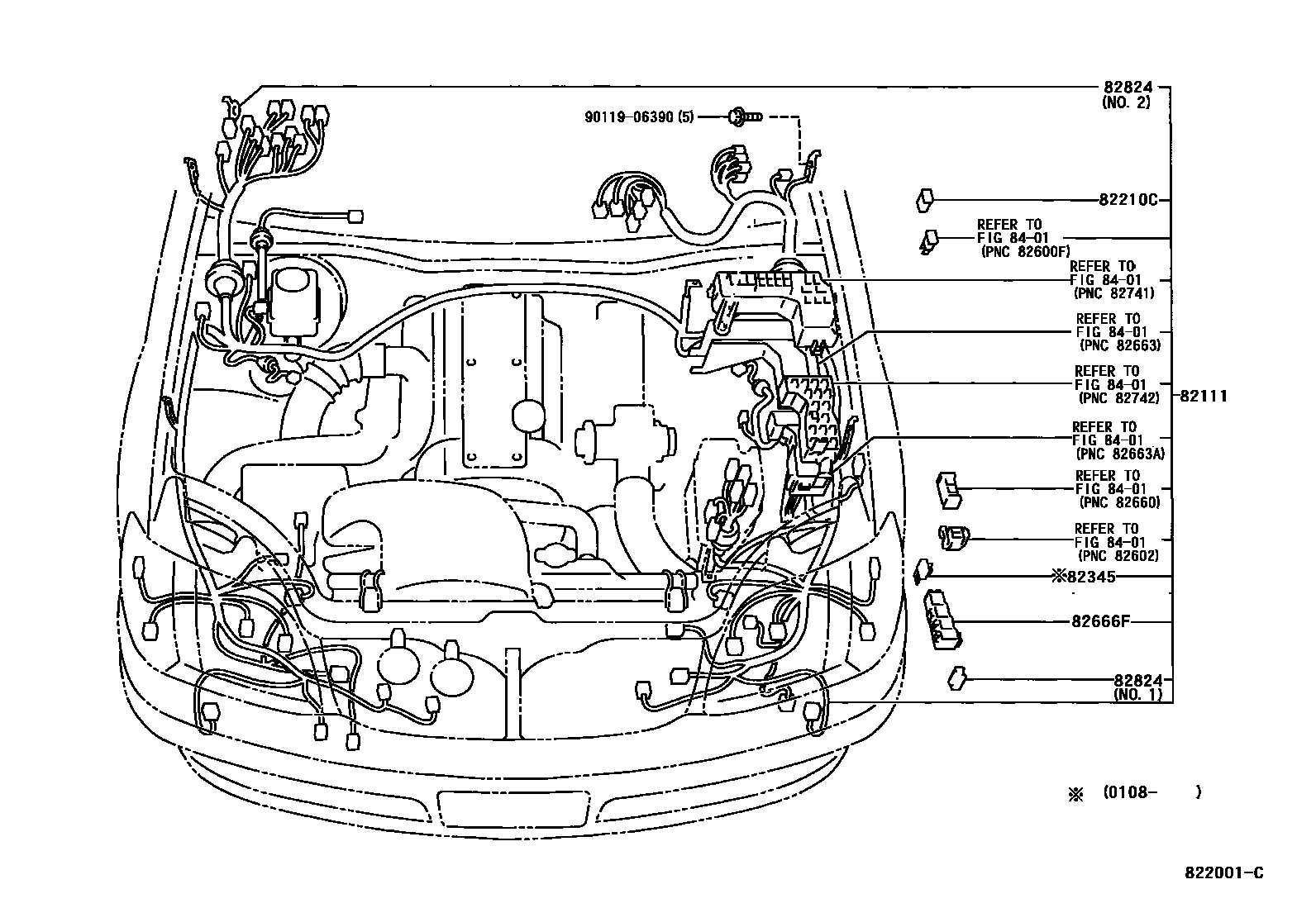

82111WIRE, ENGINE ROOM MAIN

main82115-30250iJZS175199909-200008

W(THEFT-DETERRENT SYSTEM(IMMOBILIZER))

main82115-30251iJZS175200008-200108

W(THEFT-DETERRENT SYSTEM(IMMOBILIZER))

main82115-30252iJZS175200108-200312

W(THEFT-DETERRENT SYSTEM(IMMOBILIZER))

main82115-30460iJZS175199909-200008

main82115-30461iJZS175200008-200108

main82115-30462iJZS175200108-200312

82210CFUSIBLE LINK

main90982-08202iJZS175199909-200312

60A,TERM.:MALE,YEL

main90982-08203iJZS175199909-200312

80A,TERM.:MALE,BLK

main90982-08274iJZS175199909-200312

120A,TERM.:MALE,WHT

main90982-08280iJZS175199909-200312

30A,TERM.:FEMALE,PNK

main90982-08281iJZS175199909-200312

40A,TERM.:FEMALE,GRN

main90982-08282iJZS175199909-200312

50A,TERM.:FEMALE,RED

82345DIODE

main82345-12050iJZS175200108-200312

82666FHOLDER, CONNECTOR NO.7

main82666-30610iJZS175199909-200312

82824CONNECTOR, WIRING HARNESS

main82824-12210iJZS175199909-200108

NO.1

main82824-12220iJZS175200108-200312

NO.1

main82824-48010iJZS175199909-200312

NO.2

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906390

main90119-06390

7 parts on this diagram · 11 diagrams in section
