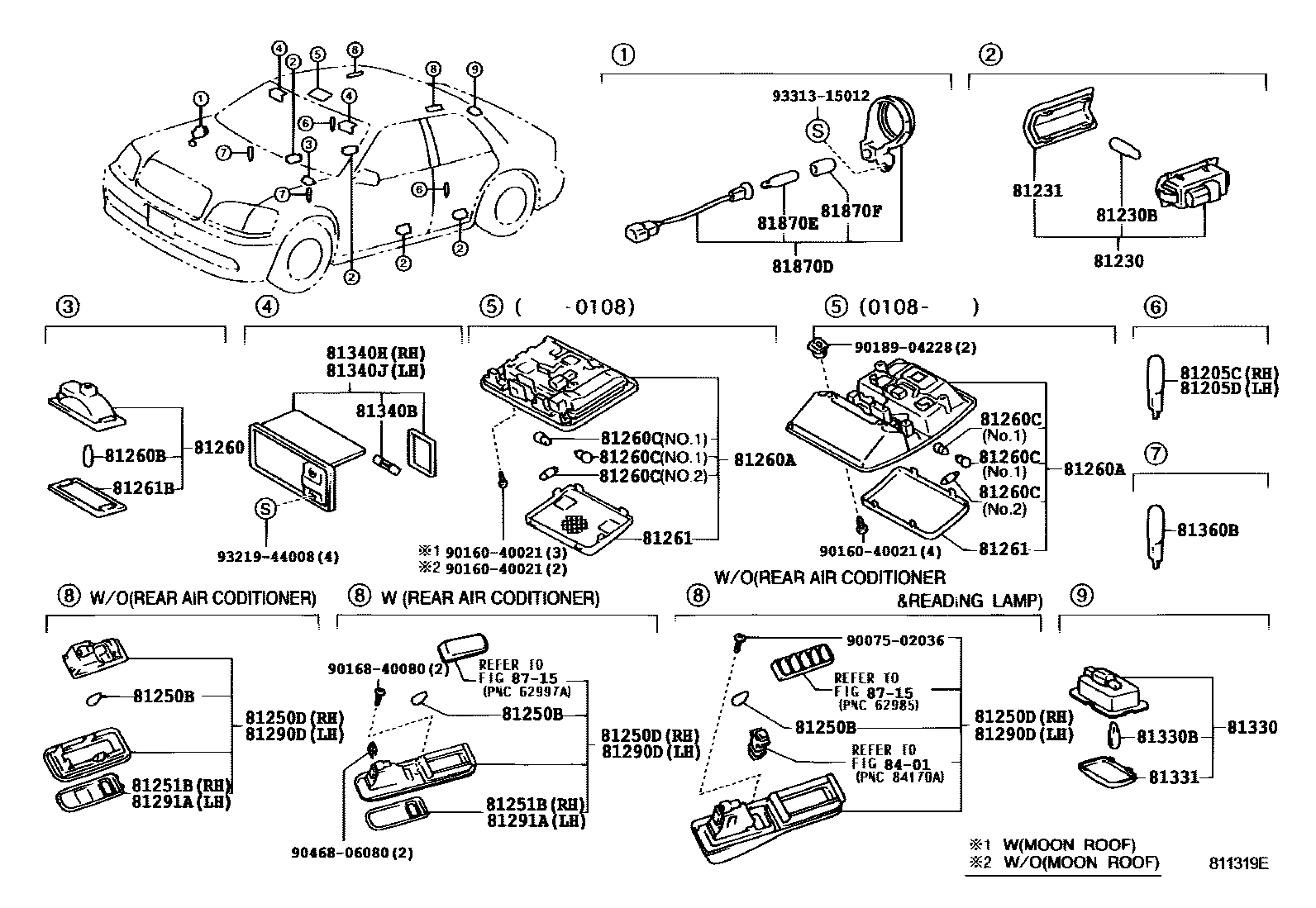

INTERIOR LAMP

81205CBULB, ASH RECEPTACLE LAMP, REAR RH

main90981-11041iJZS175200108-200311

81205DBULB, ASH RECEPTACLE LAMP, REAR LH

main90981-11041iJZS175199909-200108

81230LAMP ASSY, COURTESY

main81230-30160×4iJZS175199909-200108

81230BBULB(FOR COURTESY LAMP)

main90981-11020×4iJZS175199909-200108

12V 3.8W

81231LENS, COURTESY LAMP

main81231-50050×4iJZS175199909-200108

81250BBULB, ROOM LAMP, NO.2

main90981-12020×2iJZS175199909-200108

12V 8W

main99132-12050×2iJZS175199909-200108

12V 5W

81250DLAMP ASSY, REAR ROOM, RH

main81250-30120-A0iJZS175199909-200108

W(REAR AIR CONDITIONER),IVORY,TRIM0#

main81250-30120-B2iJZS175200108-200312

W(REAR AIR CONDITIONER),MD.CHARCOAL,TRIM1#

main81250-30130-A0iJZS175199909-200108

IVORY,TRIM0#

main81250-30130-B2iJZS175199909-200108

MD.CHARCOAL,TRIM1#

main81250-30190-A0iJZS175199909-200108

W(REAR AIR CONDITIONER & READING LAMP),IVORY,TRIM0#

main81250-30190-B0iJZS175199909-200108

W(REAR AIR CONDITIONER & READING LAMP),MD.CHARCOAL,TRIM1#

81251BLENS, REAR ROOM LAMP, RH

main81251-30120iJZS175199909-200108

81260LAMP ASSY, GLOVE BOX

main81260-50010iJZS175199909-200108

81260ALAMP ASSY, MAP

main81260-30200-A0iJZS175199909-200108

IVORY,TRIM0#

main81260-30200-B2iJZS175199909-200108

MD.CHARCOAL,TRIM1#

main81260-30210-A0iJZS175199909-200108

W(MOON ROOF),IVORY,TRIM0#

main81260-30210-B2iJZS175199909-200108

W(MOON ROOF),MD.CHARCOAL,TRIM1#

main81260-30220-A0iJZS175200108-200312

IVORY,TRIM0#

main81260-30220-B0iJZS175200108-200312

MD.CHARCOAL,TRIM1#

main81260-30240-A0iJZS175200108-200312

W(MOON ROOF),IVORY,TRIM0#

main81260-30240-B0iJZS175200108-200312

W(MOON ROOF),MD.CHARCOAL,TRIM1#

81260BBULB(FOR GLOVE BOX)

main90981-11018iJZS175199909-200108

12V 1.2W W/O SOCKET

81260CBULB(FOR MAP LAMP)

main90981-12005×2iJZS175200108-200312

12V 8W,NO.1

main90981-14004iJZS175199909-200108

12V 8W,NO.2

81261LENS AND COVER, MAP LAMP

main81261-50060iJZS175199909-200108

main81261-50070iJZS175199909-200108

W(MOON ROOF)

81261BLENS,GLOVE BOX LAMP

main81261-50010iJZS175199909-200108

81290DLAMP ASSY, REAR ROOM, LH

main81290-30130-A0iJZS175200108-200312

W(REAR AIR CONDITIONER),IVORY,TRIM0#

main81290-30130-B2iJZS175200108-200312

W(REAR AIR CONDITIONER),MD.CHARCOAL,TRIM1#

main81290-30140-A0iJZS175200108-200312

IVORY,TRIM0#

main81290-30140-B2iJZS175199909-200108

MD.CHARCOAL,TRIM1#

main81290-30170-A0iJZS175199909-200108

W(REAR AIR CONDITIONER & READING LAMP),IVORY,TRIM0#

main81290-30170-B0iJZS175199909-200108

W(REAR AIR CONDITIONER & READING LAMP),MD.CHARCOAL,TRIM1#

81291ALENS, REAR ROOM LAMP, LH

main81251-30120iJZS175199909-200108

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-50021iJZS175199909-200108

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iJZS175199909-200108

12V 3.8W

81331LENS, LUGGAGE COMPARTMENT LAMP

main81331-50010iJZS175200108-200312

81340BBULB (FOR VANITY LAMP)

main90981-14007×2iJZS175199909-200108

12V 3W

81340HLAMP ASSY, VANITY, RH

main81350-30050-A0iJZS175200108-200312

IVORY,TRIM0#

main81350-30050-B0iJZS175200108-200312

MD.CHARCOAL,TRIM1#

81340JLAMP ASSY, VANITY, LH

main81340-30090-A0iJZS175199909-200108

IVORY,TRIM0#

main81340-30090-B0iJZS175199909-200108

MD.CHARCOAL,TRIM1#

81360BBULB, STEP OR SPOT LAMP

main90981-11041×2iJZS175200003-200108

14V 1.4W

81870DLAMP ASSY, KEY CYLINDER

main81870-30110iJZS175199909-200108

W(IMMOBILIZER)

main81870-30120iJZS175199909-200108

81870EBULB, KEY CYLINDER LAMP

main90981-11014iJZS175199909-200108

14V 1.4W

81870FCAP, KEY CYLINDER LAMP BULB

main84998-10070iJZS175199909-200108

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9007502036

main90075-02036

9016040021

main90160-40021

9016840080

main90168-40080

9018904228

main90189-04228

9046806080

main90468-06080

9321944008

main93219-44008

9331315012

main93313-15012

35 parts on this diagram · 1 diagram in section
