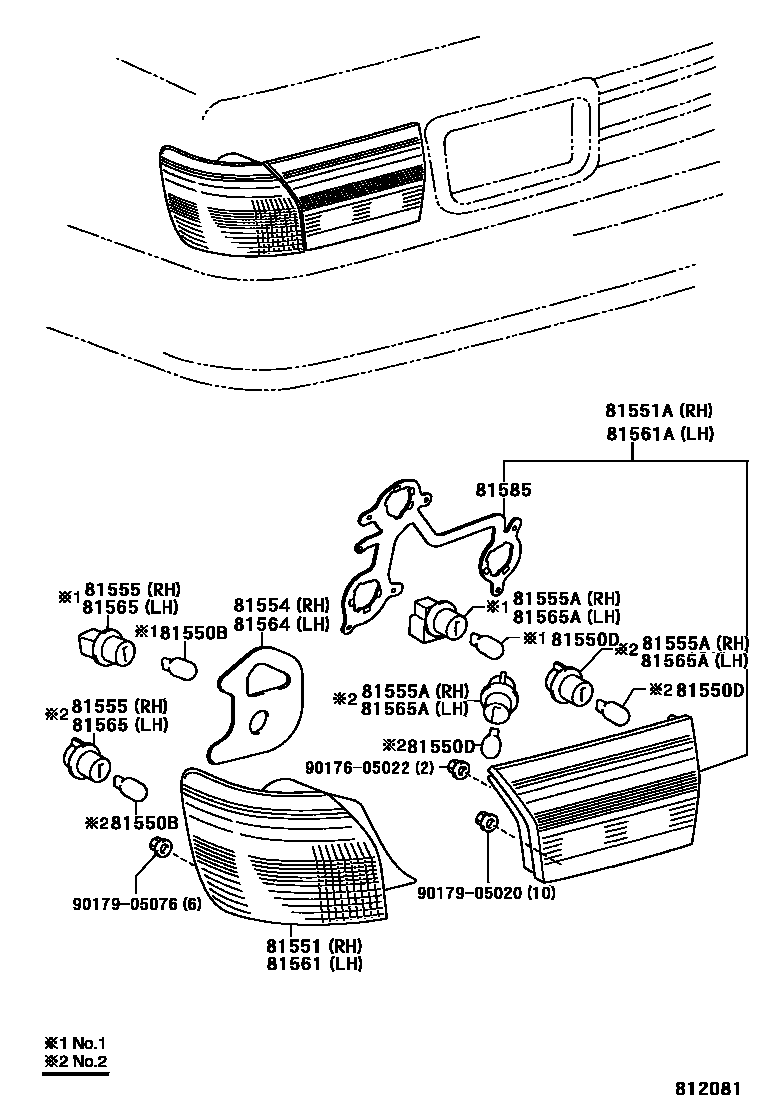

REAR COMBINATION LAMP
81550BBULB(FOR REAR COMBINATION LAMP)
12V 21W,NO.1
12V 21/5W,NO.2
12V 21W,NO.2
12V 21/5W,NO.1
12V 21W,NO.1
81550DBULB(FOR REAR COMBINATION LAMP)
12V 21W,NO.1
12V 21/5W,NO.2
12V 21W,NO.2
12V 21/5W,NO.1
81551LENS, REAR COMBINATION LAMP, RH
81551ALENS, REAR COMBINATION LAMP, RH
81554GASKET, REAR COMBINATION LAMP BODY, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
NO.1
NO.2
81555ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
NO.2
NO.1
81561LENS, REAR COMBINATION LAMP, LH
81561ALENS, REAR COMBINATION LAMP, LH
81564GASKET, REAR COMBINATION LAMP BODY, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
NO.1
NO.2
81565ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
NO.2
NO.1
81585SOCKET & WIRE, REAR LAMP
RH
LH
9017605022
main90176-05022
9017905020
main90179-05020
9017905076
main90179-05076
16 parts on this diagram · 2 diagrams in section
