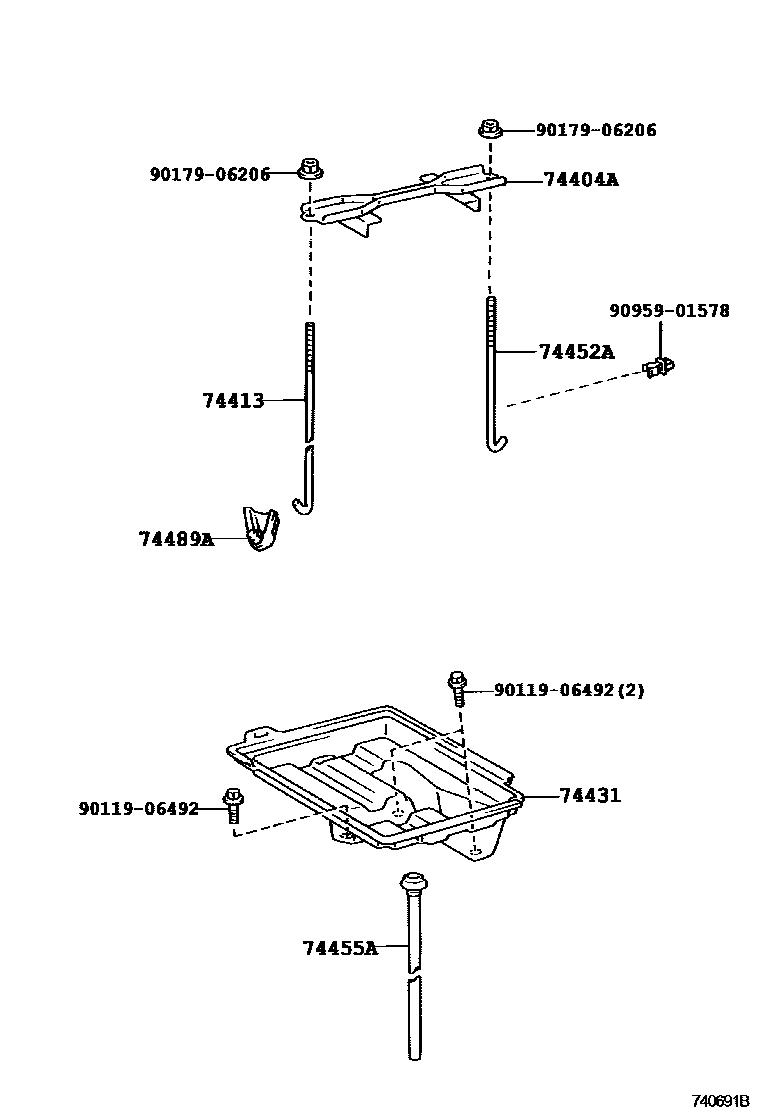

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-30280iJZS175199909-200108

74413BOLT, BATTERY CLAMP

main74451-51010iJZS175199909-200108

74431TRAY, BATTERY

main74431-51010iJZS175199909-200108

74452ABOLT, BATTERY CLAMP, NO.2

main74452-51010iJZS175199909-200108

74455AHOSE, BATTERY DRAIN

main74455-30020iJZS175199909-200108

74489ACOVER, BATTERY CLAMP

main74489-51010iJZS175199909-200108

9011906492

main90119-06492

9017906206

main90179-06206

9095901578

main90959-01578

9 parts on this diagram · 1 diagram in section
