EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

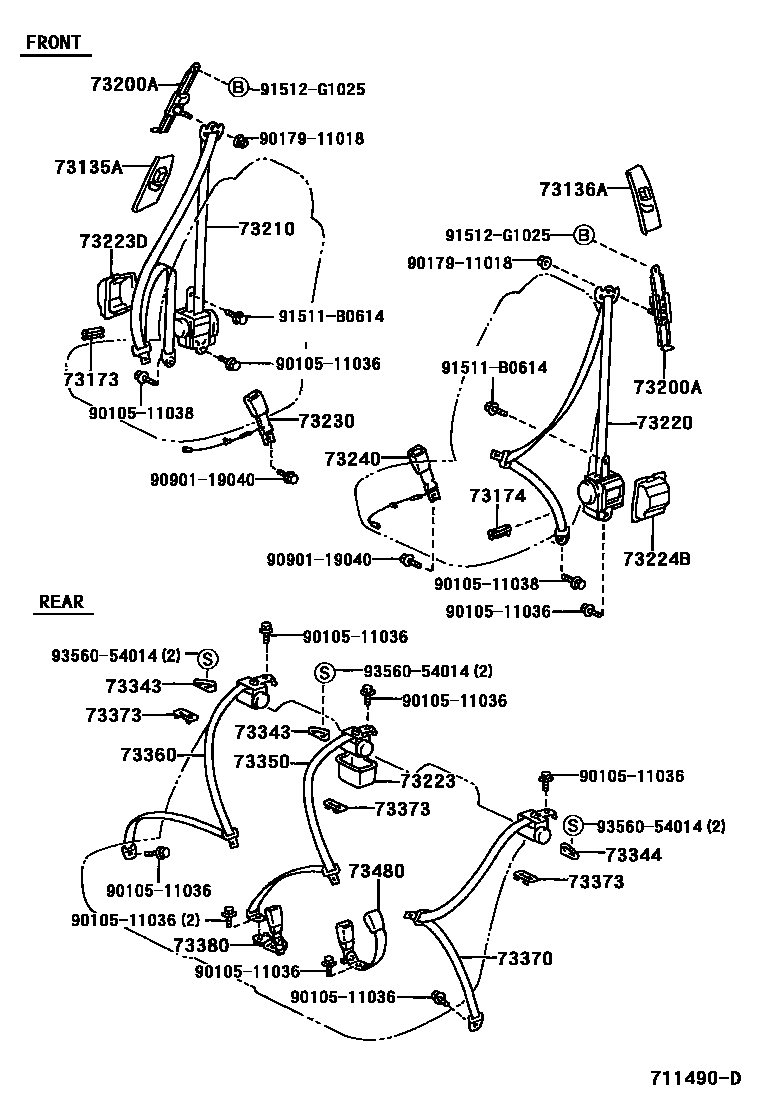

Parts diagram
73135ACOVER, SHOULDER BELT ANCHOR, RH
main73023-30010-A0i199909-200108
IVORY,TRIM0#
main73023-30010-B0i199909-200108
MD.CHARCOAL,TRIM1#
73136ACOVER, SHOULDER BELT ANCHOR, LH
main73024-30010-A0i199909-200108
IVORY,TRIM0#
main73024-30010-B0i200108-200312
MD.CHARCOAL,TRIM1#
73173COVER, FRONT SEAT BELT HOLE, RH
main73173-30040-A0i200108-200312
IVORY,TRIM0#
main73173-30040-B1i199909-200108
MD.CHARCOAL,TRIM1#
73174COVER, FRONT SEAT BELT HOLE, LH
main73174-30040-A0i200108-200312
IVORY,TRIM0#
main73174-30040-B1i200108-200312
MD.CHARCOAL,TRIM1#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-30080×2i199909-200108
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-30780-A0i199909-200008
IVORY,TRIM0#
main73210-30780-B1i199909-200008
GRAY,TRIM1#
main73210-30790-A0i200008-200108
IVORY,TRIM0#
main73210-30790-B1i200108-200312
GRAY,TRIM1#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-30740-A0i199909-200008
IVORY,TRIM0#
main73220-30740-B1i199909-200008
GRAY,TRIM1#
main73220-30770-A0i200008-200108
IVORY,TRIM0#
main73220-30770-B2i200108-200312
GRAY,TRIM1#
73223COVER, SEAT BELT RETRACTOR
main73223-30050i200108-200312
73223DCOVER, FRONT SEAT BELT RETRACTOR, RH
main73223-30040i199909-200008
main73223-30060i200008-200108
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
main73224-30030i199909-200008
main73224-30040i200008-200108
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-30790-A0i199909-200108
IVORY,TRIM0#
main73230-30790-B1i199909-200108
MD.CHARCOAL,TRIM1#
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-30480-A0i200108-200312
IVORY,TRIM0#
main73240-30480-B1i199909-200108
MD.CHARCOAL,TRIM1#
73343GUIDE, REAR SEAT SHOULDER BELT, RH
main73343-30060-A0×2i200108-200312
IVORY,TRIM0#
main73343-30060-B1×2i199909-200108
MD.CHARCOAL,TRIM1#
73344GUIDE, REAR SEAT SHOULDER BELT, LH
main73344-30050-A0i199909-200108
IVORY,TRIM0#
main73344-30050-B1i199909-200108
MD.CHARCOAL,TRIM1#
73350BELT ASSY, REAR SEAT LAP TYPE, CENTER
main73350-30240-A0i199909-200108
IVORY,TRIM0#
main73350-30240-B1i199909-200108
GRAY,TRIM1#
main73350-30260-A0i200108-200312
IVORY,TRIM0#
main73350-30260-B0i200108-200312
GRAY,TRIM1#
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
main73360-30370-A0i199909-200108
IVORY,TRIM0#
main73360-30370-B1i199909-200108
GRAY,TRIM1#
main73360-30400-A0i200108-200312
IVORY,TRIM0#
main73360-30400-B0i200108-200312
GRAY,TRIM1#
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
main73360-30370-A0i199909-200108
IVORY,TRIM0#
main73360-30370-B1i199909-200108
GRAY,TRIM1#
main73360-30400-A0i200108-200312
IVORY,TRIM0#
main73360-30400-B0i200108-200312
GRAY,TRIM1#
73373COVER, REAR SEAT SHOULDER BELT
main73373-33010-B4×3i199909-200108
DK.CHARCOAL,TRIM1#
main73373-33010-E1×3i200108-200312
SANDAL WOOD,TRIM0#
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
main73380-30360-A0i199909-200108
IVORY,TRIM0#
main73380-30360-B1i199909-200108
MD.CHARCOAL,TRIM1#
main73380-30390-A0i200108-200312
IVORY,TRIM0#
main73380-30390-B0i200108-200312
MD.CHARCOAL,TRIM1#
73480BELT ASSY, REAR SEAT INNER W/CENTER, LH
main73480-30190-A0i199909-200108
IVORY,TRIM0#
main73480-30190-B1i199909-200108
GRAY,TRIM1#
main73480-30230-A0i200108-200312
IVORY,TRIM0#
main73480-30230-B0i200108-200312
GRAY,TRIM1#
9010511036
main90105-11036
9010511038
main90105-11038
9017911018
main90179-11018
9090119040
main90901-19040
91511B0614
main91511-B0614
91512G1025
main91512-G1025
9356054014
main93560-54014

27 parts on this diagram · 1 diagram in section
