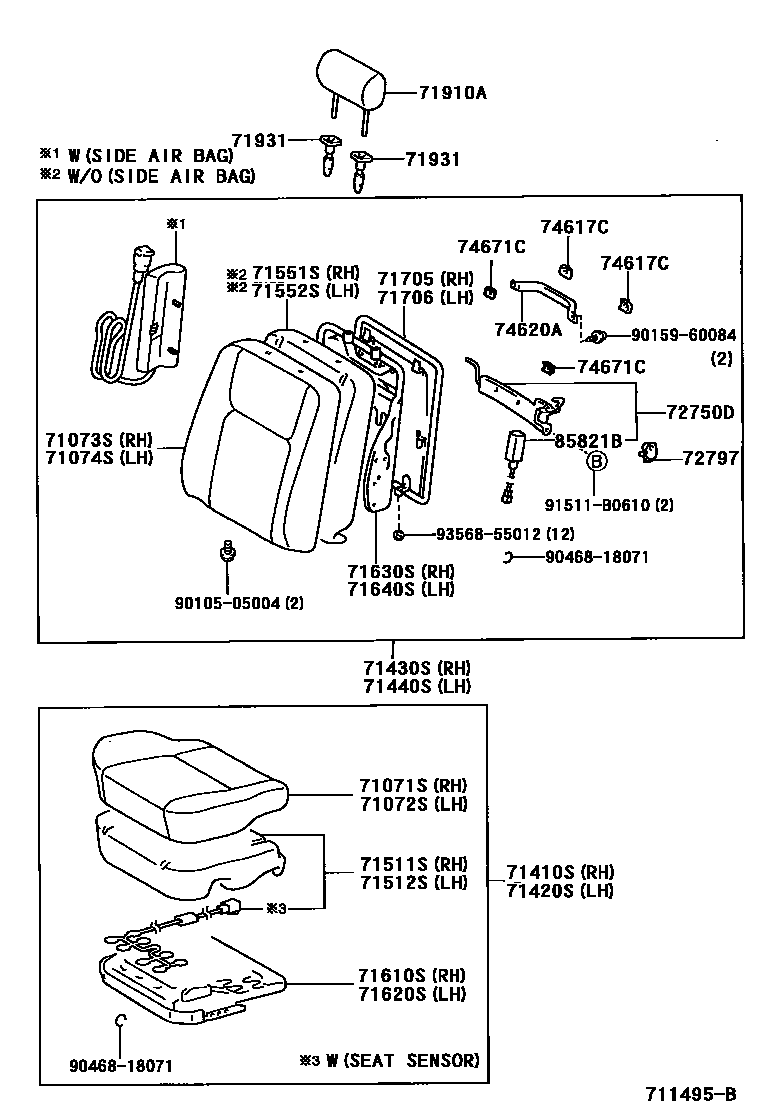

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-3K190-A0iJZS175199909-200108

SEAT = TYPE B-*104,IVORY,TRIM0#

main71071-3K190-B0iJZS175199909-200108

SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

main71071-3K230-A0iJZS175199909-200108

SEAT = TYPE A-*104,IVORY,TRIM0#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-3F510-A0iJZS175199909-200108

SEAT = TYPE B-*104,IVORY,TRIM0#

main71072-3F510-B0iJZS175200108-200312

SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

main71072-3F540-A0iJZS175199909-200108

SEAT = TYPE A-*104,IVORY,TRIM0#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-3F670-A0iJZS175200108-200312

W(SIDE AIR BAG) & SEAT = TYPE B-*104,IVORY,TRIM0#

main71073-3F670-B0iJZS175199909-200108

W(SIDE AIR BAG) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

main71073-3F700-A0iJZS175199909-200108

W(SIDE AIR BAG) & SEAT = TYPE A-*104,IVORY,TRIM0#

main71073-3F720-A0iJZS175199909-200108

SEAT = TYPE B-*104,IVORY,TRIM0#

main71073-3F720-B0iJZS175200108-200312

SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

main71073-3F750-A0iJZS175199909-200108

SEAT = TYPE A-*104,IVORY,TRIM0#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-3F720-A0iJZS175199909-200108

SEAT = TYPE B-*104,IVORY,TRIM0#

main71073-3F720-B0iJZS175199909-200108

SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

main71073-3F750-A0iJZS175200108-200312

SEAT = TYPE A-*104,IVORY,TRIM0#

main71074-3F160-A0iJZS175200108-200312

W(SIDE AIR BAG) & SEAT = TYPE B-*104,IVORY,TRIM0#

main71074-3F160-B0iJZS175200108-200312

W(SIDE AIR BAG) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

main71074-3F190-A0iJZS175199909-200108

W(SIDE AIR BAG) & SEAT = TYPE A-*104,IVORY,TRIM0#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-3K450-A0iJZS175199909-200108

***,SEAT = TYPE B-*104,IVORY,TRIM0#

main71410-3K450-B0iJZS175199909-200108

***,SEAT = TYPE B-*104,MD.CHARCOAL,TRIM1#

main71410-3K480-A0iJZS175199909-200108

***,SEAT = TYPE A-*104,IVORY,TRIM0#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-3F650-A0iJZS175199909-200108

***,SEAT = TYPE B-*104,IVORY,TRIM0#

main71420-3F650-B0iJZS175199909-200108

***,SEAT = TYPE B-*104,MD.CHARCOAL,TRIM1#

main71420-3F680-A0iJZS175199909-200108

***,SEAT = TYPE A-*104,IVORY,TRIM0#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71040-30310-A0iJZS175199909-200108

W(SIDE AIR BAG) & SEAT = TYPE B-*104,IVORY,TRIM0#

main71040-30310-A2iJZS175200108-200312

W(SIDE AIR BAG) & SEAT = TYPE B-*104,IVORY,TRIM0#

main71040-30310-B0iJZS175199909-200108

W(SIDE AIR BAG) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM1#

main71040-30310-B2iJZS175200108-200312

W(SIDE AIR BAG) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM1#

main71040-30360-A0iJZS175199909-200108

W(SIDE AIR BAG) & SEAT = TYPE A-*104,IVORY,TRIM0#

main71040-30360-A2iJZS175200108-200312

W(SIDE AIR BAG) & SEAT = TYPE A-*104,IVORY,TRIM0#

main71040-30370-A0iJZS175199909-200108

***,SEAT = TYPE B-*104,IVORY,TRIM0#

main71040-30370-B0iJZS175199909-200108

***,SEAT = TYPE B-*104,MD.CHARCOAL,TRIM1#

main71040-30380-A0iJZS175199909-200108

***,SEAT = TYPE A-*104,IVORY,TRIM0#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71070-30120-A0iJZS175199909-200108

W(SIDE AIR BAG) & SEAT = TYPE B-*104,IVORY,TRIM0#

main71070-30120-A2iJZS175200108-200312

W(SIDE AIR BAG) & SEAT = TYPE B-*104,IVORY,TRIM0#

main71070-30120-B0iJZS175199909-200108

W(SIDE AIR BAG) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM1#

main71070-30120-B2iJZS175200108-200312

W(SIDE AIR BAG) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM1#

main71070-30170-A0iJZS175199909-200108

W(SIDE AIR BAG) & SEAT = TYPE A-*104,IVORY,TRIM0#

main71070-30170-A2iJZS175200108-200312

W(SIDE AIR BAG) & SEAT = TYPE A-*104,IVORY,TRIM0#

main71070-30180-A0iJZS175199909-200108

***,SEAT = TYPE B-*104,IVORY,TRIM0#

main71070-30180-B0iJZS175199909-200108

***,SEAT = TYPE B-*104,MD.CHARCOAL,TRIM1#

main71070-30230-A0iJZS175199909-200108

***,SEAT = TYPE A-*104,IVORY,TRIM0#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-3A080iJZS175199909-200108

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71052-30070iJZS175199909-200108

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-3A060iJZS175199909-200108

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-30560iJZS175199909-200108

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-30760iJZS175199909-200108

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-30400iJZS175199909-200108

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-3A270iJZS175199909-200108

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-3A070iJZS175199909-200108

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-30630-A0iJZS175199909-200108

SEAT = TYPE B-*104,IVORY,TRIM0#

main71705-30630-B0iJZS175199909-200108

SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

main71705-30700-A0iJZS175199909-200108

SEAT = TYPE A-*104,IVORY,TRIM0#

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71705-30630-A0iJZS175199909-200108

SEAT = TYPE B-*104,IVORY,TRIM0#

main71705-30630-B0iJZS175200108-200312

SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

main71705-30700-A0iJZS175199909-200108

SEAT = TYPE A-*104,IVORY,TRIM0#

71910AHEADREST ASSY, FRONT SEAT

main71910-3A160-A0×2iJZS175200108-200312

SEAT = TYPE B-*104,IVORY,TRIM0#

main71910-3A160-B0×2iJZS175199909-200108

SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

main71910-3A190-A0×2iJZS175200108-200312

SEAT = TYPE A-*104,IVORY,TRIM0#

71931SUPPORT, FRONT SEAT HEADREST

main71930-30110-A0×2iJZS175200108-200312

W(LOCK),IVORY,TRIM0#

main71930-30110-B1×2iJZS175200108-200312

W(LOCK),MD.CHARCOAL,TRIM1#

main71931-30030-A0×2iJZS175200108-200312

W/O(LOCK),IVORY,TRIM0#

main71931-30030-B1×2iJZS175199909-200108

W/O(LOCK),MD.CHARCOAL,TRIM1#

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-30230iJZS175199909-200108

72797SPACER, LUMBAR SUPPORT

main72797-30020iJZS175199909-200108

74617CPLUG, ASSIST GRIP

main74617-30040-A0×4iJZS175199909-200108

IVORY,TRIM0#

main74617-30040-B0×4iJZS175199909-200108

MEDIUM CHARCOAL,TRIM1#

74620AGRIP ASSY, ASSIST, REAR

main74620-30070-A0×2iJZS175199909-200108

IVORY,TRIM0#

main74620-30070-B1×2iJZS175199909-200108

MD.CHARCOAL,TRIM1#

74671CSUPPORT, ASSIST GRIP

main74671-30010×4iJZS175199909-200108

85821MOTOR ASSY, POWER SEAT

main85820-30720iJZS175199909-200108

85821BMOTOR ASSY, POWER SEAT

main85820-30700iJZS175199909-200108

9010505004

main90105-05004

9015960084

main90159-60084

9046818071

main90468-18071

91511B0610

main91511-B0610

9356855012

main93568-55012

32 parts on this diagram · 4 diagrams in section
