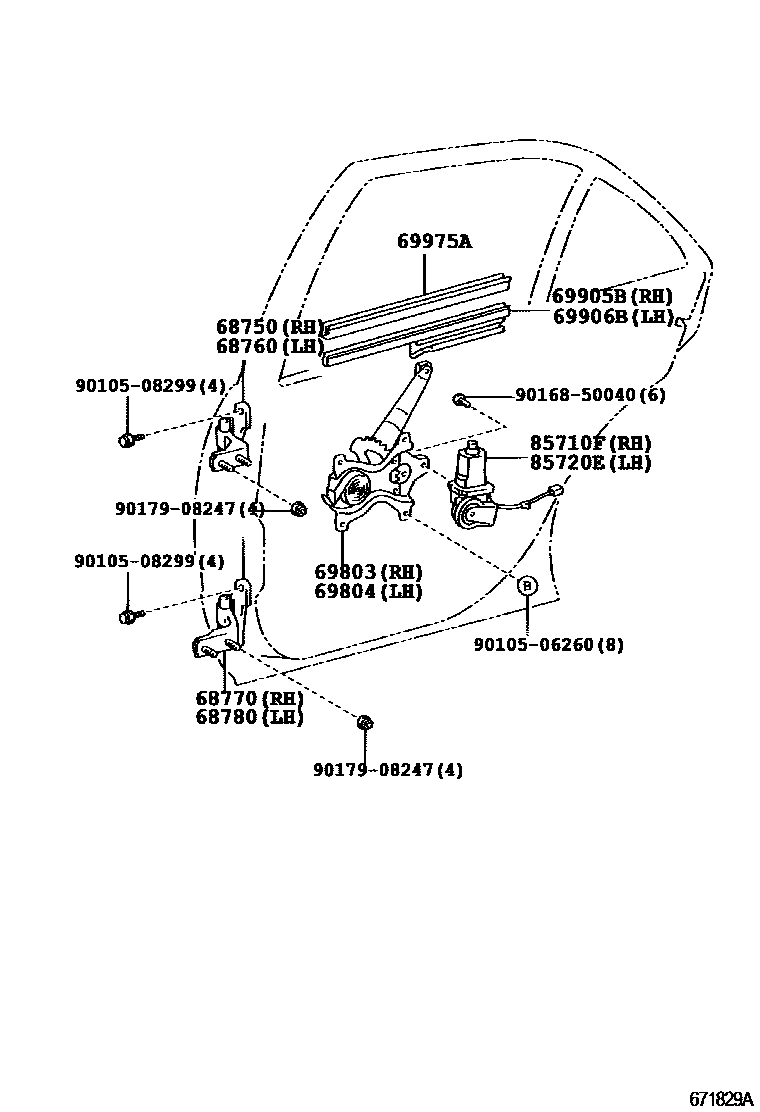

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-30110iJZS175199909-200108

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-30120iJZS175199909-200108

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-30110iJZS175199909-200108

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-30120iJZS175199909-200108

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-30250iJZS175199909-200108

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-30250iJZS175199909-200108

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-30100iJZS175199909-200108

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-30080iJZS175199909-200108

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-30070×2iJZS175199909-200108

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-30310iJZS175199909-200108

main85720-30320iJZS175200108-200312

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-30370iJZS175199909-200108

main85710-30380iJZS175200108-200312

9010506260

main90105-06260

9010508299

main90105-08299

9016850040

main90168-50040

9017908247

main90179-08247

15 parts on this diagram · 1 diagram in section
