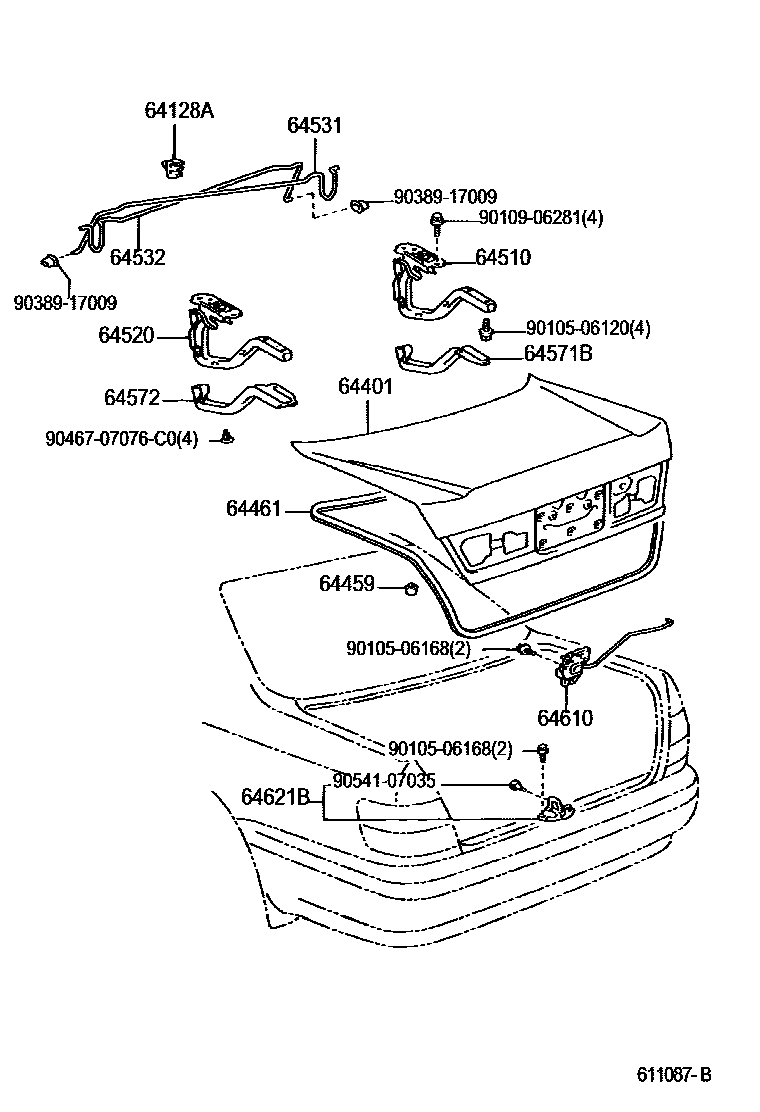

LUGGAGE COMPARTMENT DOOR & LOCK

64128ASUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR, NO.2

main64128-30050iJZS175200108-200312

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-3A100iJZS175199909-200107

main64401-3A102iJZS175200107-200108

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09079×2iJZS175200010-200108

main90541-10027×2iJZS175199909-200010

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-30280iJZS175199909-200108

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-30350iJZS175200108-200312

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-30120iJZS175200108-200312

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-30270iJZS175199909-200108

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-30270iJZS175199909-200108

64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64571-30080-C0iJZS175199909-200108

BLACK,TRIM0#,1#

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64572-30040-C0iJZS175199909-200108

BLACK,TRIM0#,1#

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-30160-C0iJZS175199909-200108

BLACK,TRIM0#,1#

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64620-30110iJZS175199909-200108

9010506120

main90105-06120

9010506168

main90105-06168

9010906281

main90109-06281

9038917009

main90389-17009

9046707076C0

main90467-07076C0

9054107035

main90541-07035

18 parts on this diagram · 1 diagram in section
